Connecting a TV

Connecting a TV using only the supplied digital optical audio

cable

(

Before connecting an external subwoofer, be sure to read the following precautions.

(

“Precautions for preparation”(p.18)

Connect a TV using the supplied digital optical audio cable.

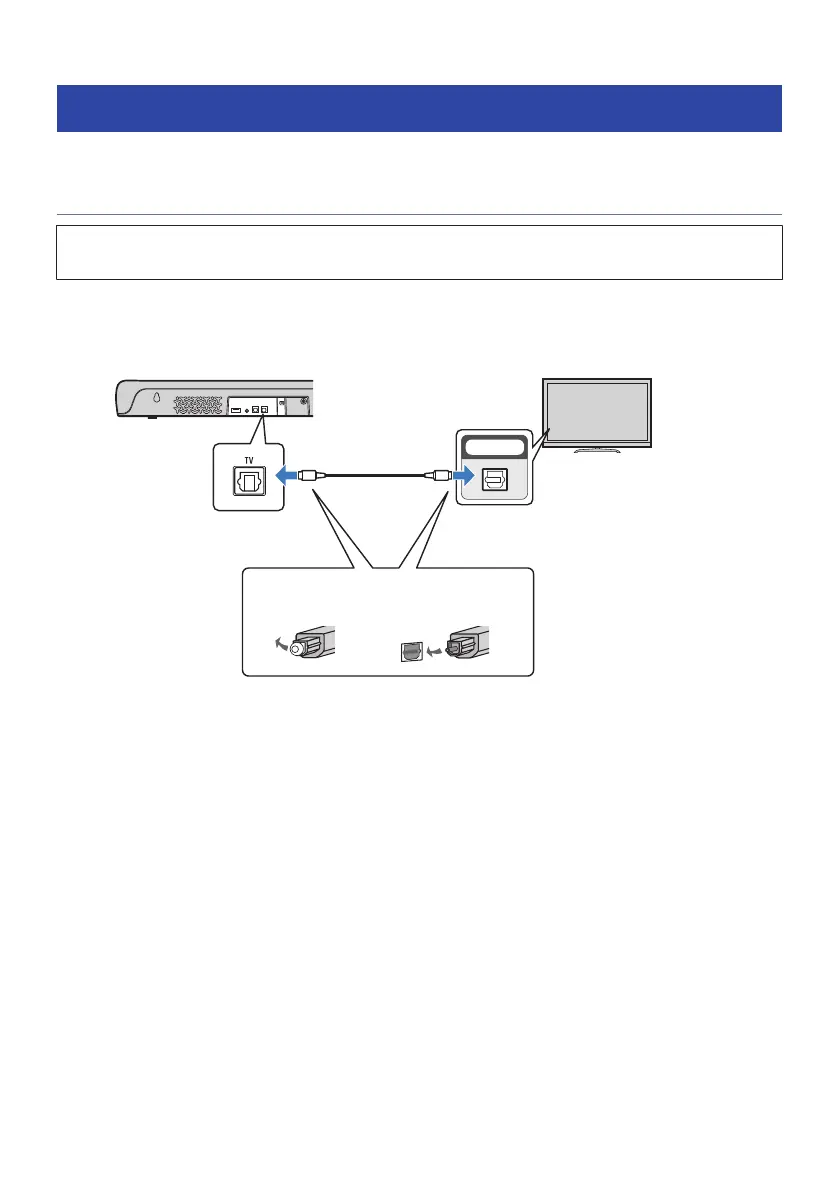

1 Connect a TV to the sound bar.

OPTICAL

OO OO

Sound bar (rear)

TV jack

Audio output (Digital optical

audio)

Remove the cap.1. 2. Check the orientation

of the plug.

PREPARATION > Connecting a TV
