Instrument and control functions
4-4
4
EAU86811
Multi-function meter unit
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
EAU86831
Speedometer
The speedometer shows the vehicle’s
traveling speed.
EAU87180
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
ECA23050
Do not operate the engine in the ta-
chometer high-r/min zone.
High-r/min zone: 11000 r/min and
above
EAU87220
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full) towards “E” (empty) as the fuel
level decreases. When approximately

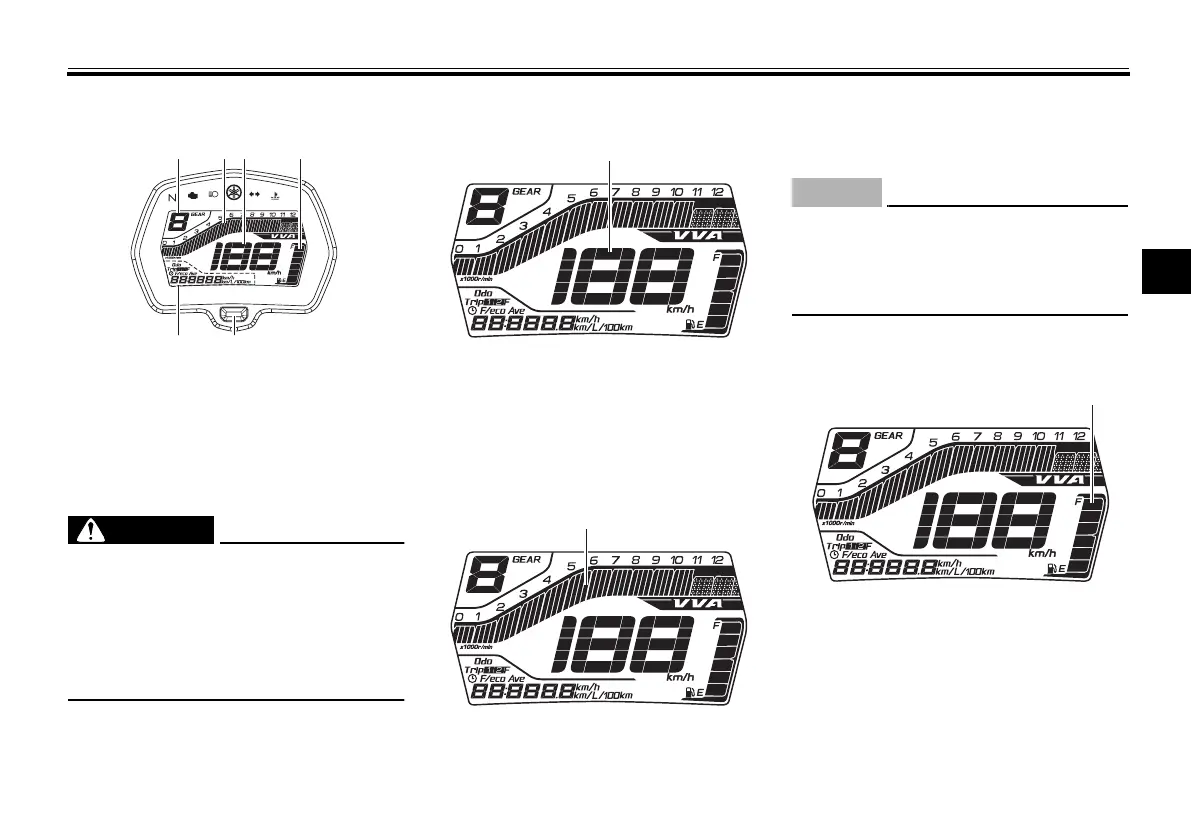

1. Transmission gear display
2. Tachometer
3. Speedometer
4. Fuel meter
5. “RESET/SELECT” button
6. Multi-function display
1. Speedometer
1. Tachometer
1. Fuel meter
