Periodic maintenance and adjustment
7-35
7
wheel and brake disc have been
removed, otherwise the brake
pads will be forced shut.
[ECA11073]

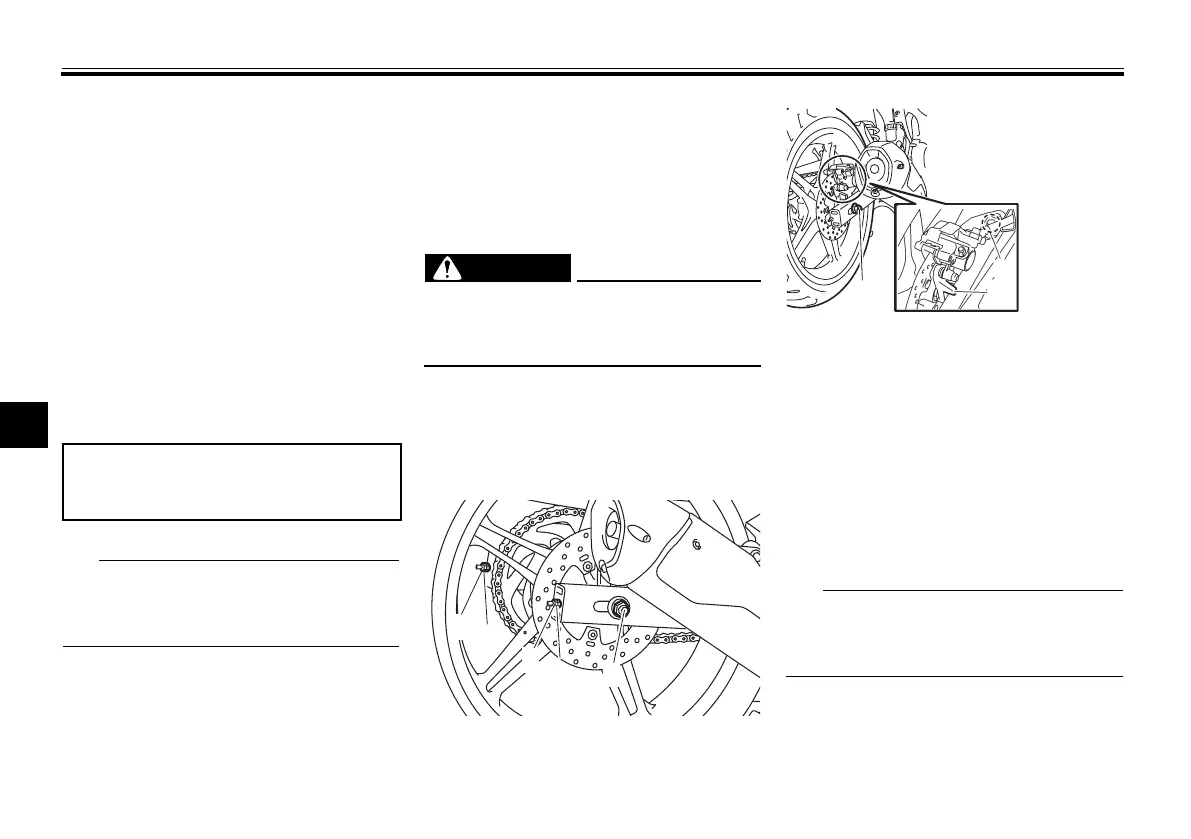

To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle, and then in-
stall the axle nut.
3. Take the motorcycle off the cen-
terstand so that the front wheel is
on the ground.
4. Tighten the axle nut to the speci-
fied torque.
When tightening the axle nut, hold the
wheel axle with a wrench to keep it
from turning.
5. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
EAU25081
Rear wheel
EAU66621
To remove the rear wheel
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.
1. Loosen the locknut and drive
chain slack adjusting nut on each
side of the swingarm.
2. Loosen the axle nut and the brake
caliper bracket bolt.
3. Place the motorcycle on the cen-
terstand.
4. Remove the axle nut.
5. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
The drive chain does not need to be
disassembled in order to remove and
install the rear wheel.
6. While supporting the brake caliper
and slightly lifting the wheel, pull
the wheel axle out.
Tightening torque:
Axle nut:
40 N·m (4.0 kgf·m, 30 lb·ft)
1. Locknut
2. Drive chain slack adjusting nut
3. Axle nut
1. Rear wheel
2. Wheel axle
3. Brake caliper bracket bolt
4. Brake caliper bracket
UBAWE0E0.book Page 35 Wednesday, March 3, 2021 2:21 PM
