Periodic maintenance and adjustment
7-31
7
EAUV1100

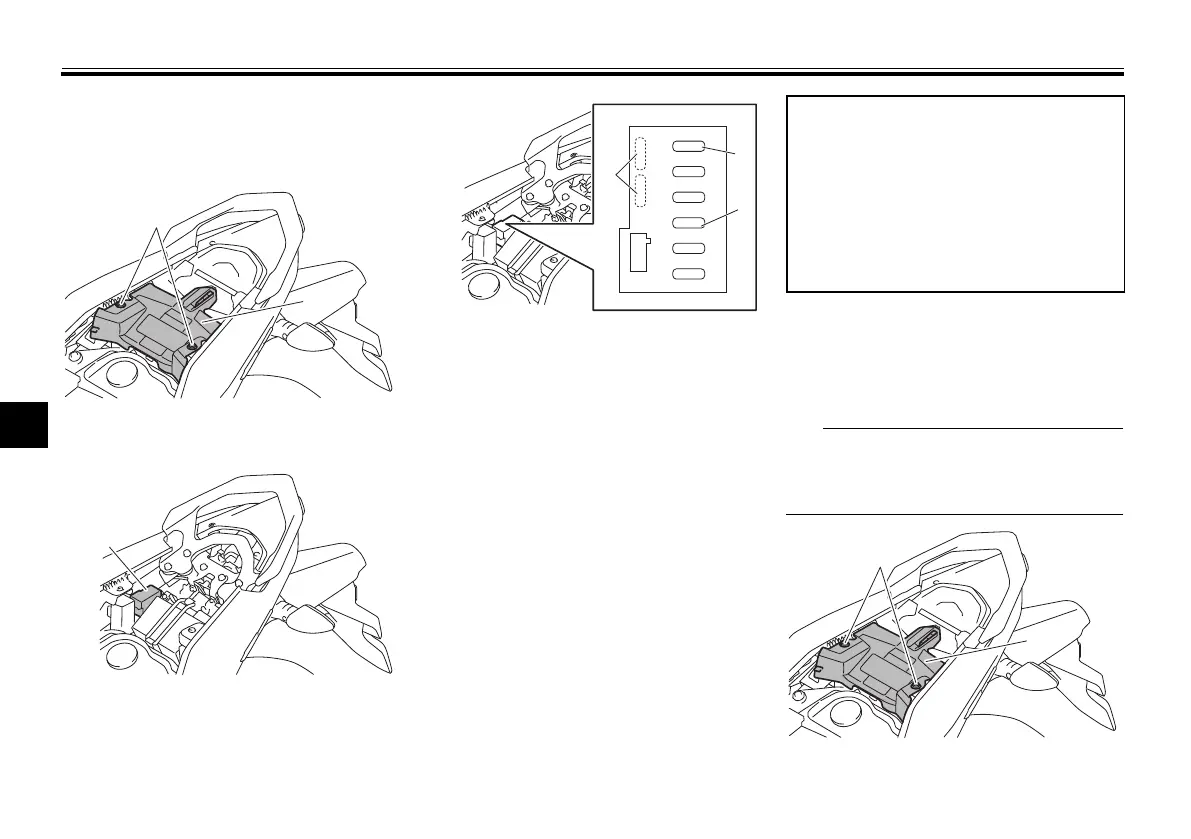

Replacing the fuses
The fuse box is located under the seat.
(See page 4-12.)
If a fuse is blown, replace it as follows.
1. Turn the main switch off and turn
off all electrical circuits.
2. Open the seat.
3. Remove the battery cover by re-
moving the screws.
4. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
5. Turn the main switch on, and then
turn on the electrical circuit in
question to check if the device op-
erates.
If the fuse immediately blows again,
have a Yamaha dealer check the elec-
trical system.
1. Screw
2. Battery cover
1. Fuse box
1
2
1
1. Main fuse
2. Signal fuse
3. Spare fuse
3
1
2
10A
15A
10A
15A
SPARE
MAIN
SIGNAL
SPARE
Specified fuses:
Main fuse:
15.0 A
Signaling system fuse:
10.0 A
Spare fuse:
10.0 A
Spare fuse:
15.0 A
1. Battery cover
2. Screw
2
1
