NAMES OF PARTS AND THEIR FUNCTIONS
3 En
English

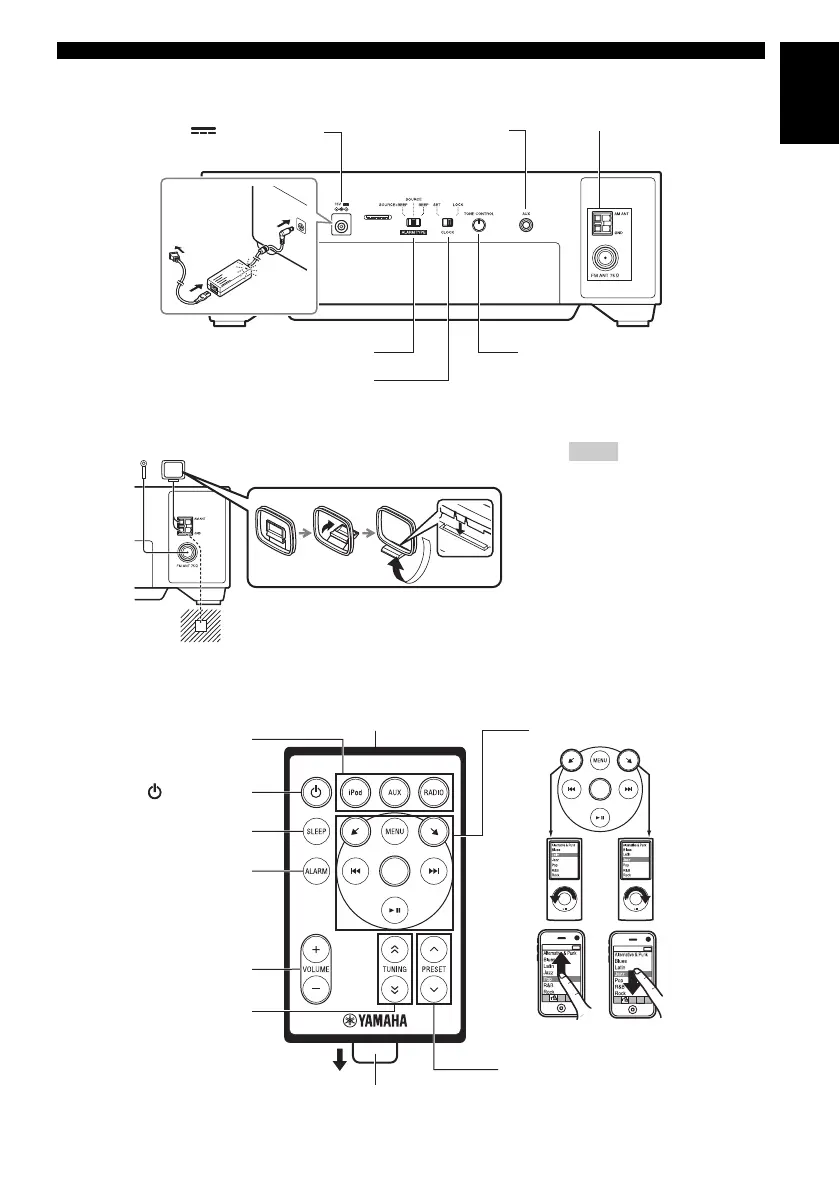

■ Rear panel
■ Connecting antennas
■ Remote control
• The antenna should be stretched
out.
• If radio reception is poor,
change the height, direction, or
placement of the antenna.
• If you use outdoor antennas
instead of the supplied antennas,
reception will be better.
15V : Connect supplied
AC adaptor and power cable.
AUX: Connect an external
device. (☞ P. 7)
Antenna terminal
(See below.)
ALARM TYPE switch (☞ P. 4)
CLOCK switch (☞ P. 4)
TONE CONTROL: Control Bass
and Treble.
AM loop antenna (supplied): Connect the black cord
to GND, and the white to AM ANT.
Indoor FM
antenna
(supplied)
Ground (GND terminal):
For minimum interference, connect the antenna GND terminal
to a good earth ground. A good earth ground is a metal stake
driven into moist earth.
Notes
: System on/off
Source buttons: iPod, AUX,
RADIO. RADIO button switches
FM/AM when SOURCE is set to
RADIO.
iPod control buttons
SLEEP: Sleep setting
(☞ P. 5)
ALARM: Alarm on/off
(☞ P. 4)
Battery insulation sheet:
Remove before using.
PRESET: Select the preset radio
station. (☞ P. 8)
VOLUME: Volume control
TUNING: Tuning radio
(☞ P. 8)
Infrared signal transmitter
