Yamaha WaveRunner XL700 Service Manual

14

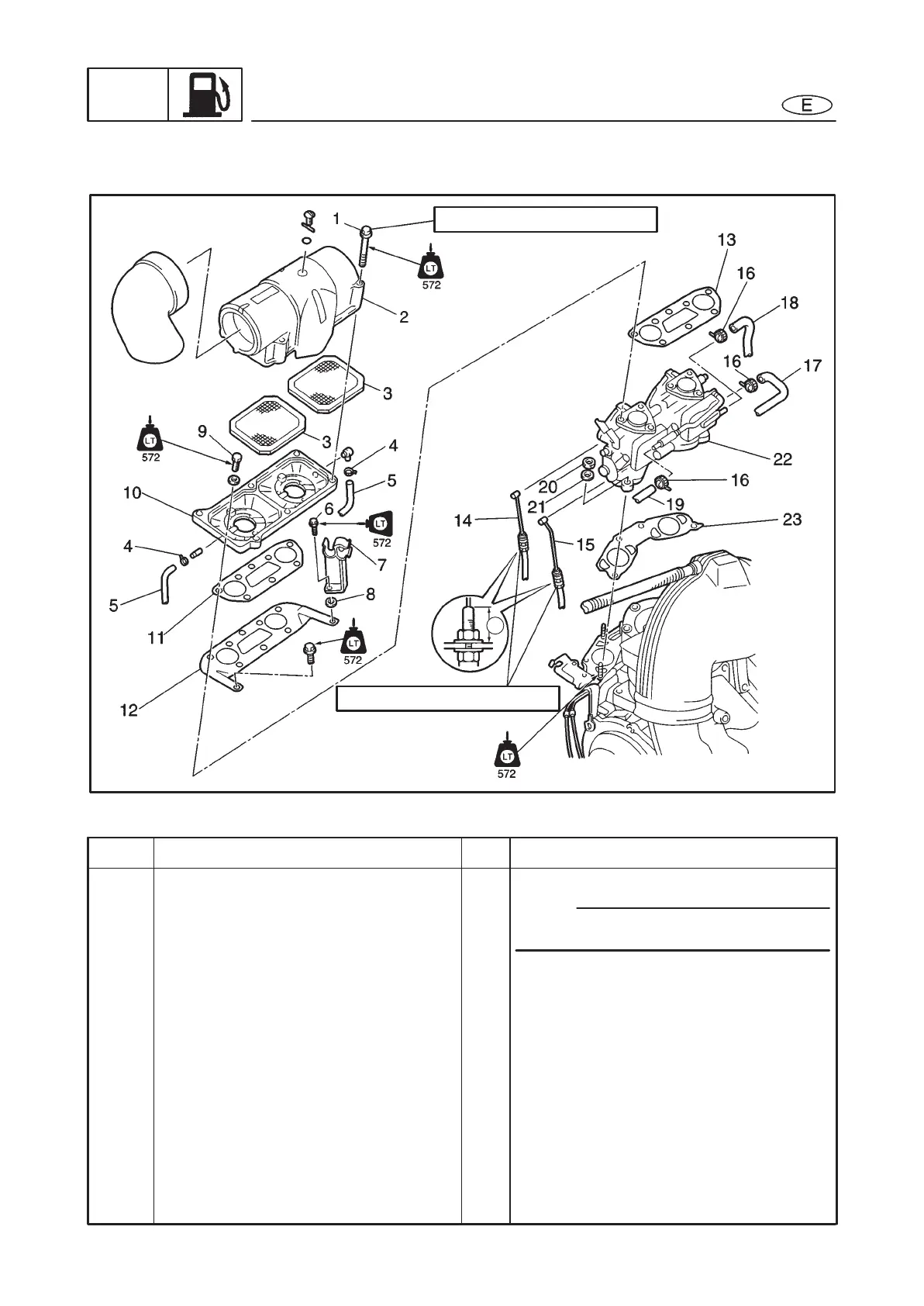

CARBURETOR UNIT REMOVAL
FUEL
Step Procedure/Part name Q’ty Service points
1
2
3
4
5
6
7
8
9
10
11
12
CARBURETOR REMOVAL
Fuel cock
High tension cord
Bolt
Cover 1
Flame arrester
Hose tie
Oil delivery hose
Bolt (with washer)
Cord clamp
Plate washer
Bolt (with washer)
Cover 2
Cover gasket
Plate
6
1
2
2
2
2
1
1
6
1
1
1
Follow the left “Step” for removal.
Turn the fuel cock to “OFF”.
NOTE:
2 Nm (0.2 mkg, 1.4 ftlb)
9 Nm (0.9 mkg, 6.5 ftlb)
a
CARBURETOR UNIT REMOVAL
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART

Yamaha WaveRunner XL700 Specifications

General

Manufacturer	Yamaha
Model	WaveRunner XL700
Category	Boat
Engine Type	2-cylinder, 2-stroke
Displacement	701cc
Fuel Capacity	13.2 gallons
Oil Capacity	3.2 quarts
Compression Ratio	7.2:1
Starter System	Electric
Lubrication System	Oil injection
Cooling System	Water-cooled
Seating Capacity	3 persons
Bore x Stroke	81mm x 68mm
Fuel Delivery	Mikuni carburetor
