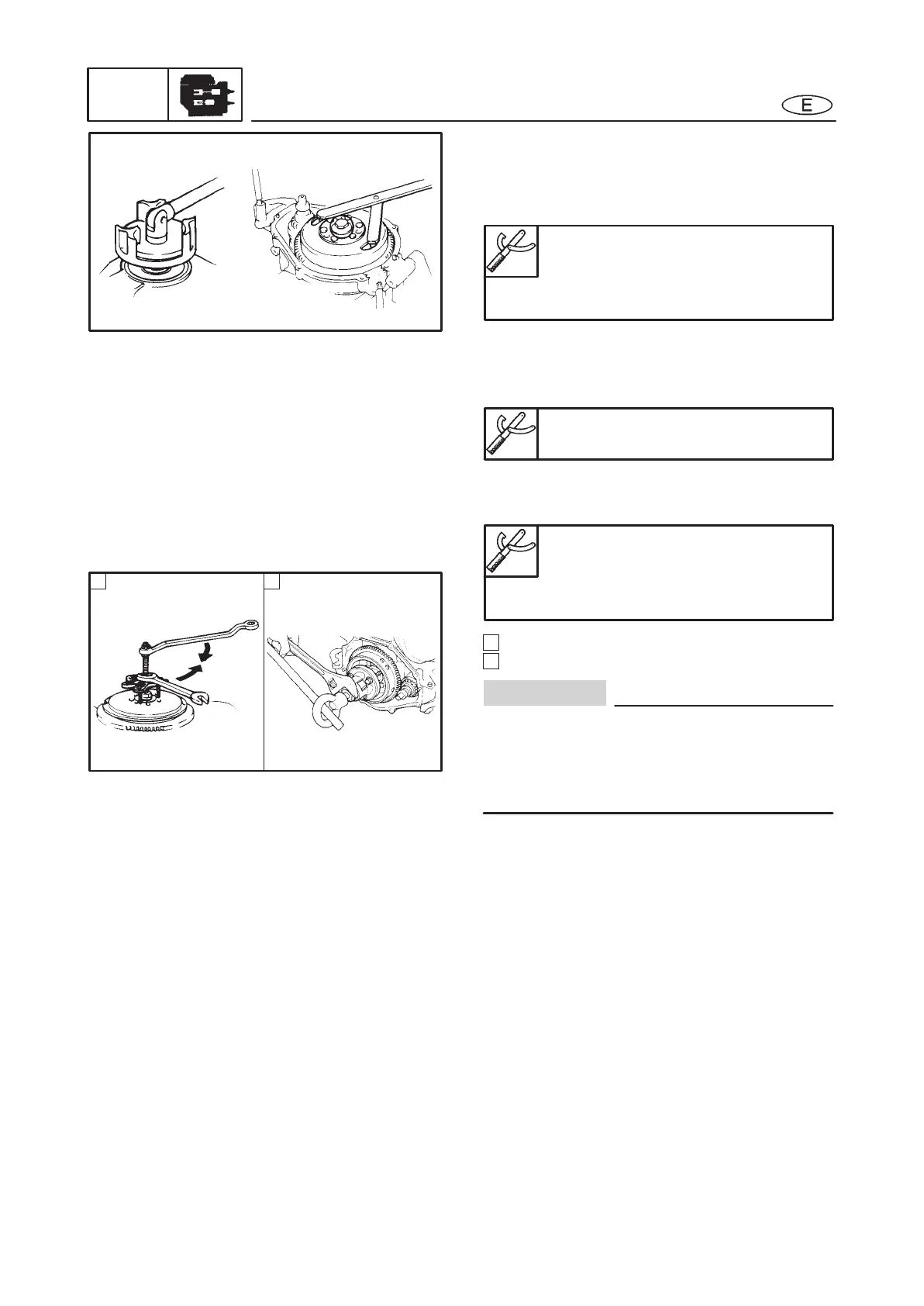

FLYWHEEL COVER AND FLYWHEEL MAGNETO
POWR
A B
CAUTION:
SERVICE POINTS
Coupling flange removal and installation
1. Remove and install:
Coupling flange
Coupler wrench:
YW-38741/90890-06425
Flywheel holder:
YB-06139/90890-06522
Flywheel magneto removal and installation
1. Remove and install:
Bolt
Flywheel holder:
YB-06139/90890-06522
2. Remove:
Flywheel magneto
Flywheel puller:
YB-06117/90890-06521
Bolt:
M8 80 mm
A
For USA and CANADA
B
Except for USA and CANADA
To prevent damage to the engine or tools,
screw in the flywheel puller set- bolts evenly
and completely so that the puller plate is par-
allel to the flywheel.
