38

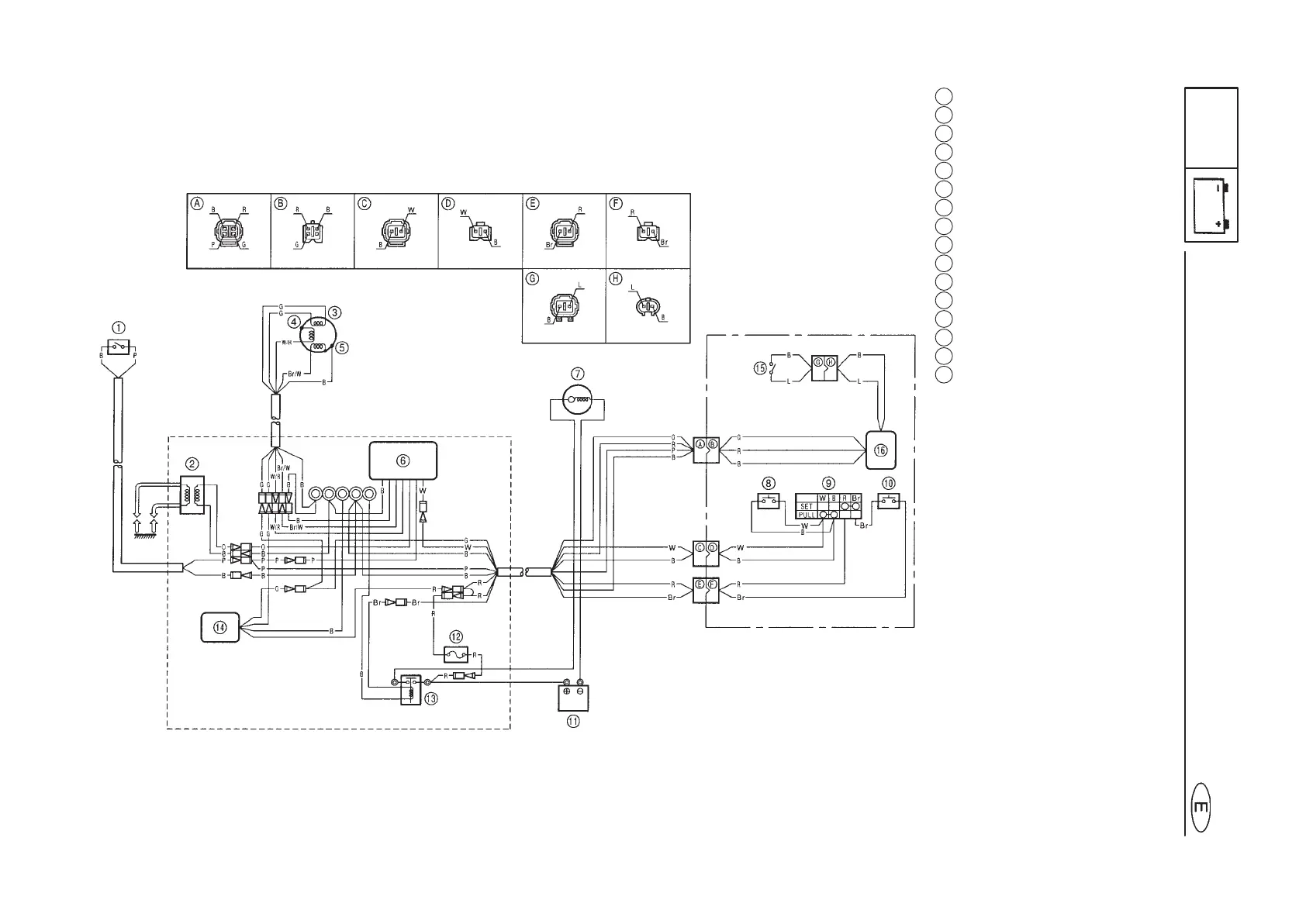

ELECTRICAL DIAGRAM
ELEC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Thermo switch
Ignition coil
Lighting coil
Pulser coil
Charge coil
CDI unit
Starter motor
Stop switch
Engine stop switch
Starter switch
Battery
Fuse
Starter relay
Rectifier regulator
Oil level sensor
Oil level warning lamp
B : Black
Br
Br/W
G
L
O
P
R
W
W/R
: Brown
: Brown/White
: Green
: Blue
: Orange
: Pink
: Red
: White
: White/Red
ELECTRICAL DIAGRAM
