ENGINE UNIT REMOVAL
POWR
Step Procedure/Part name Q’ty Service points
1
2
3
4
5
6
7
8
9
ENGINE UNIT REMOVAL
Engine hood assembly
Oil tank assembly
Fuel tank assembly
Ventilation hose
Battery lead
Wire clamp
Lead coupler
Electrical box
Choke cable
Throttle cable
Housing grease nipple plate
Coupling cover
Water hose
2
4
2
1
1
1
1
1
3
Follow the left “Step” for removal.
Refer to the “ENGINE HOOD
REMOVAL” section in chapter 8.
Refer to the “OIL TANK AND FUEL
TANK REMOVAL” section in chapter 4.
Refer to the “DECK” section in chapter 8.
17 Nm (1.7 mkg, 12 ftlb)
7 Nm (0.7 mkg, 5.1 ftlb)
1 Nm (0.1 mkg, 0.7 ftlb)
4 Nm (0.4 mkg, 2.9 ftlb)
ENGINE UNIT REMOVAL

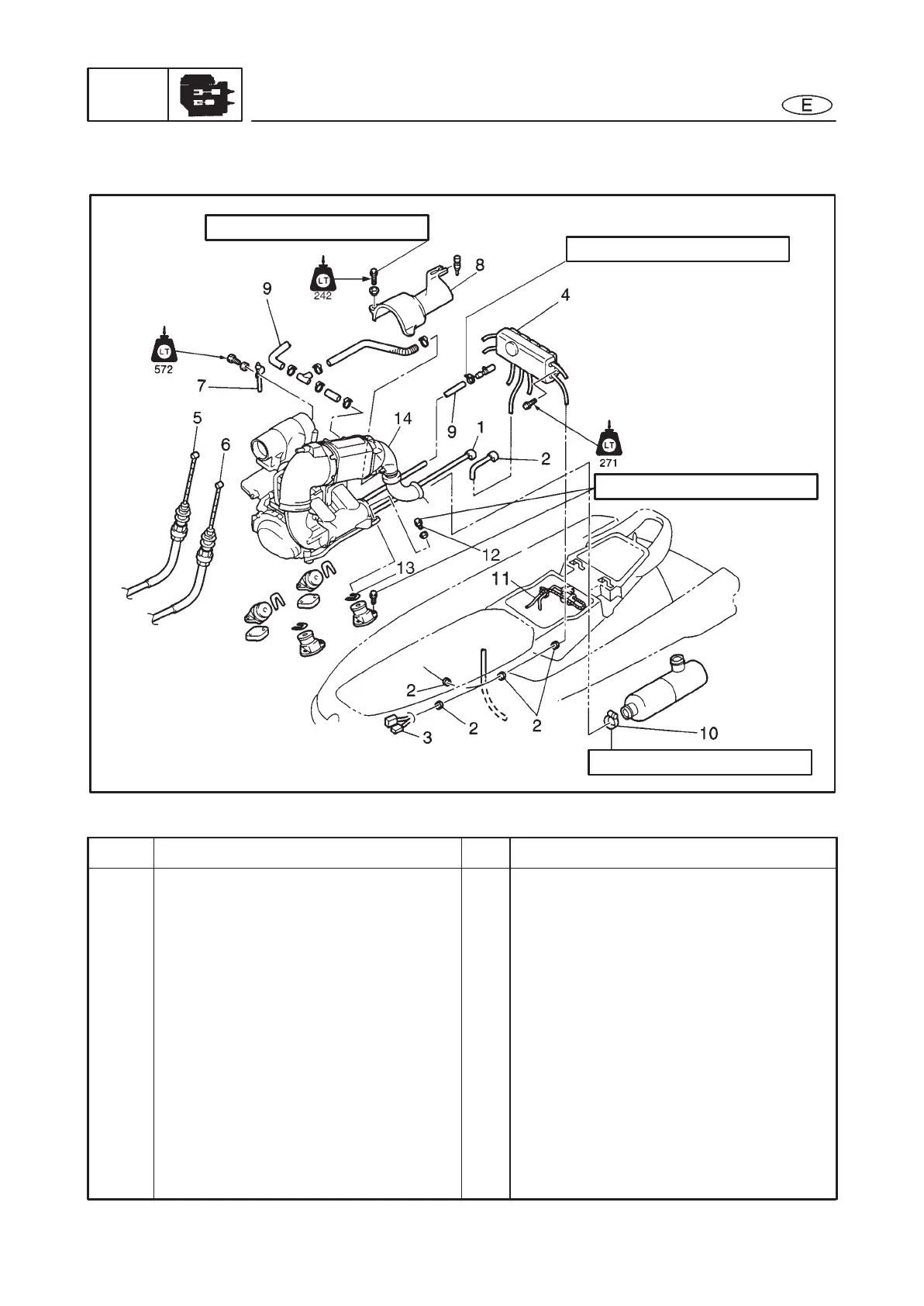

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
