8-36
8
11. Thoroughly apply Yamaha foam air filter
oil or other quality liquid foam air filter oil
(not spray type) to the sponge material.
The sponge material should be wet but
not dripping.
12. Pull the sponge material over its frame.
13. Install the air filter element holder.
14. Install the air filter element.

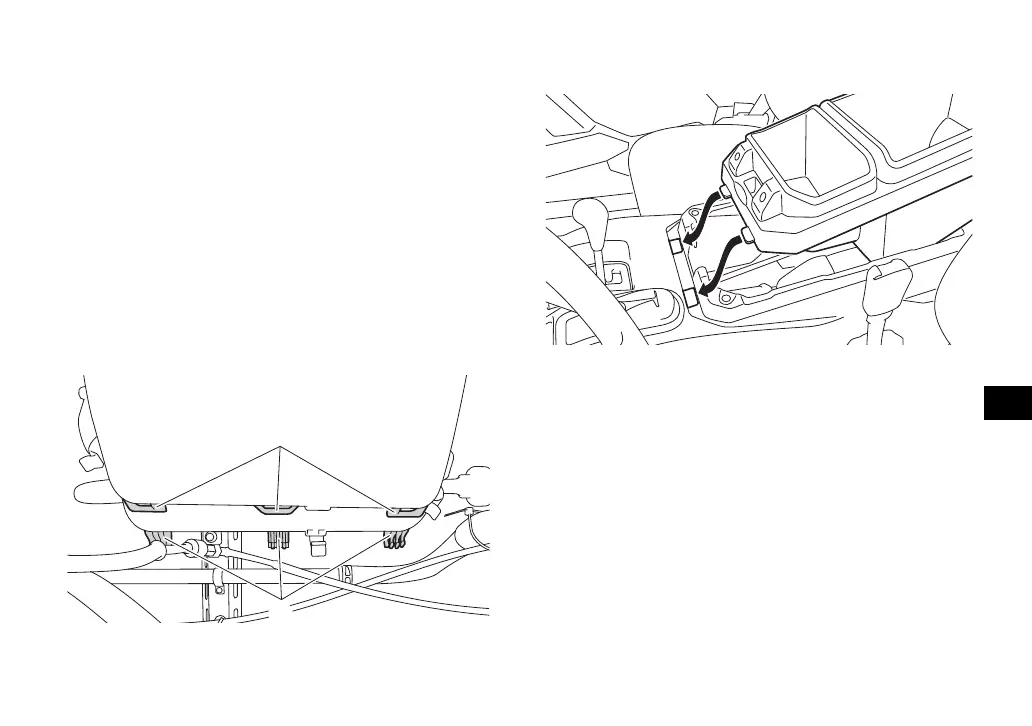

15. Install the air filter case cover by fitting the
pivot holders onto the projections on the
air filter case, and then close and lock the
cover in place with the snap holders.
16. Install the storage compartment as
shown.
EBU33673
Air filter check hoses
There is a check hose at the bottom of the air
filter case and at the bottom of the air intake
duct. If dust or water collects in a check hose,
the air filter element may be soiled. Clean the
check hose, air filter element and air filter
case.
1. Pivot holder
2. Projection
UB3D7AE0.book Page 36 Tuesday, November 7, 2017 9:38 AM
