8-37
8
EBU33691
V-belt case drain plug
The V-belt case drain plug is located behind
the left panel. (See page 8-11 for left panel re-
moval and installation procedures.)
After operating in water deep enough to allow
water to enter the V-belt case, remove the
drain plug to drain any water from the case.
If water drains from the V-belt case after re-
moving the drain plug, have a Yamaha dealer
inspect the vehicle, as the water may affect
other engine parts.
EBU32450
Cleaning the spark arrester
EWB03370
Hot exhaust system may cause burns. To
avoid burns or fires, make sure that the en-
gine is stopped and the exhaust system is
cool before cleaning the spark arrester. Do
not start the engine while cleaning the ex-
haust system.
1. Remove the tailpipe bolts.

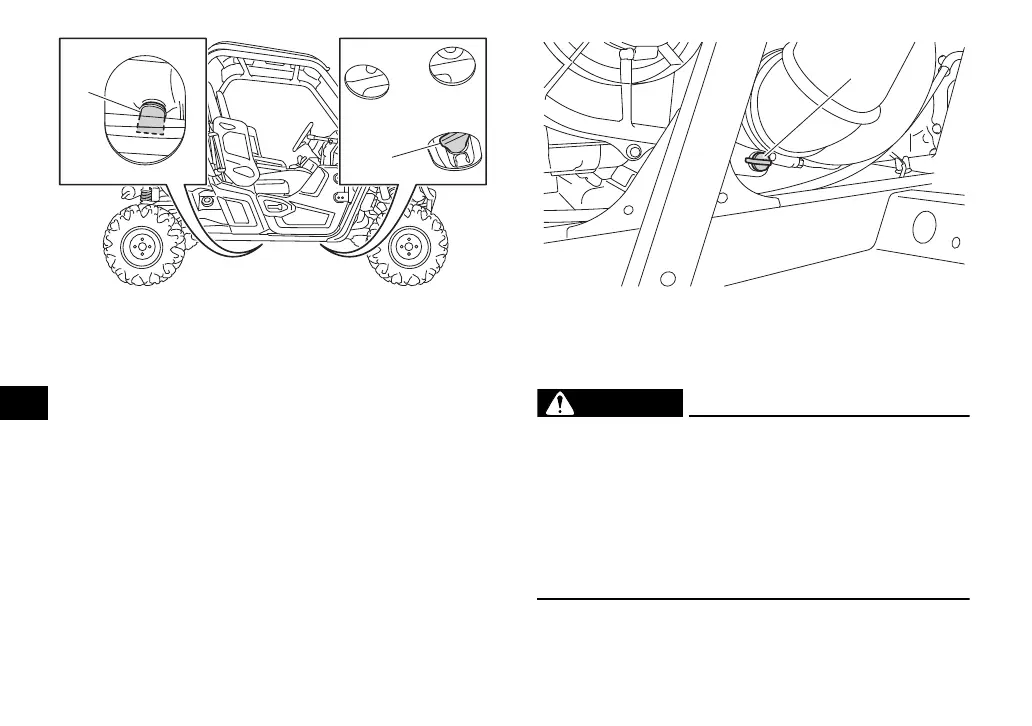

1. Air intake duct check hose
2. Air filter case check hose
1. V-belt case drain plug
