8-53
8
Fuse box
ECB00641
To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse.
1. Turn off all electrical systems. (See page
4-1.)
2. Remove the hood. (See page 8-10.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the
specified amperage. Never use any
material in place of the proper fuse.
Using an improper fuse can cause
damage to the electrical system and
may lead to a fire.
[EWB03440]

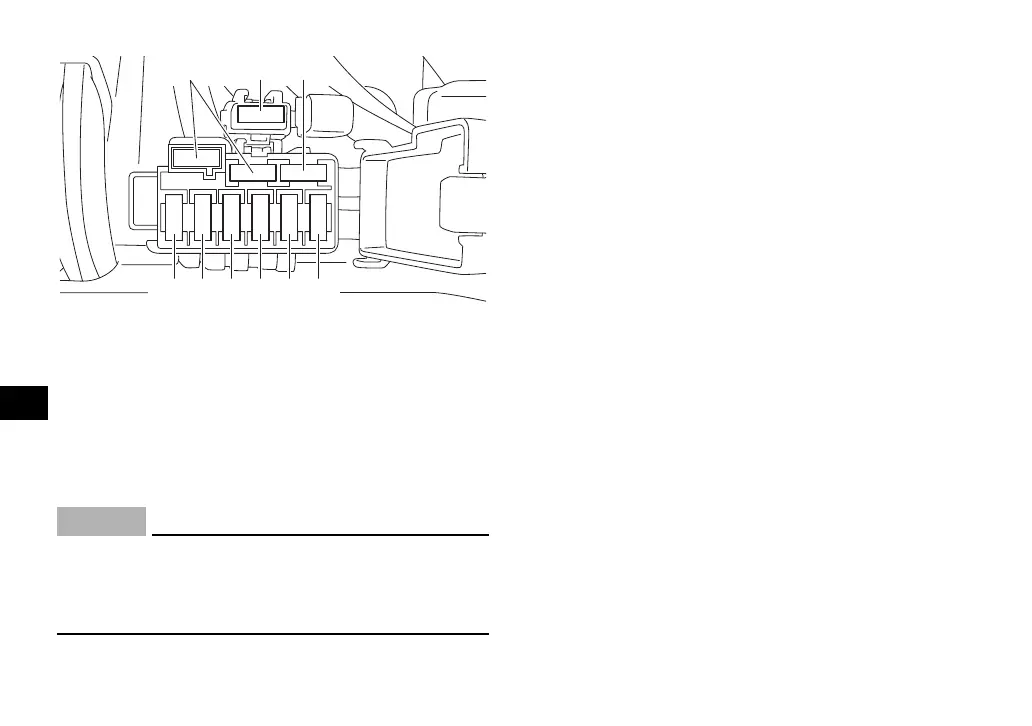

1. Backup fuse “BACK UP” (for clock)
2. Ignition fuse “IGNITION”
3. Four-wheel-drive motor fuse “DIFF”
4. Auxiliary DC jack fuse “TERMINAL”
5. Signaling system fuse “SIGNAL”
6. Headlight fuse “HEAD”
7. Spare fuse
8. Radiator fan motor fuse “FAN”
UB3D7AE0.book Page 53 Tuesday, November 7, 2017 9:38 AM
