XP7000/XP5000/XP3500/XP2500/XP1000 Owner’s Manual 15

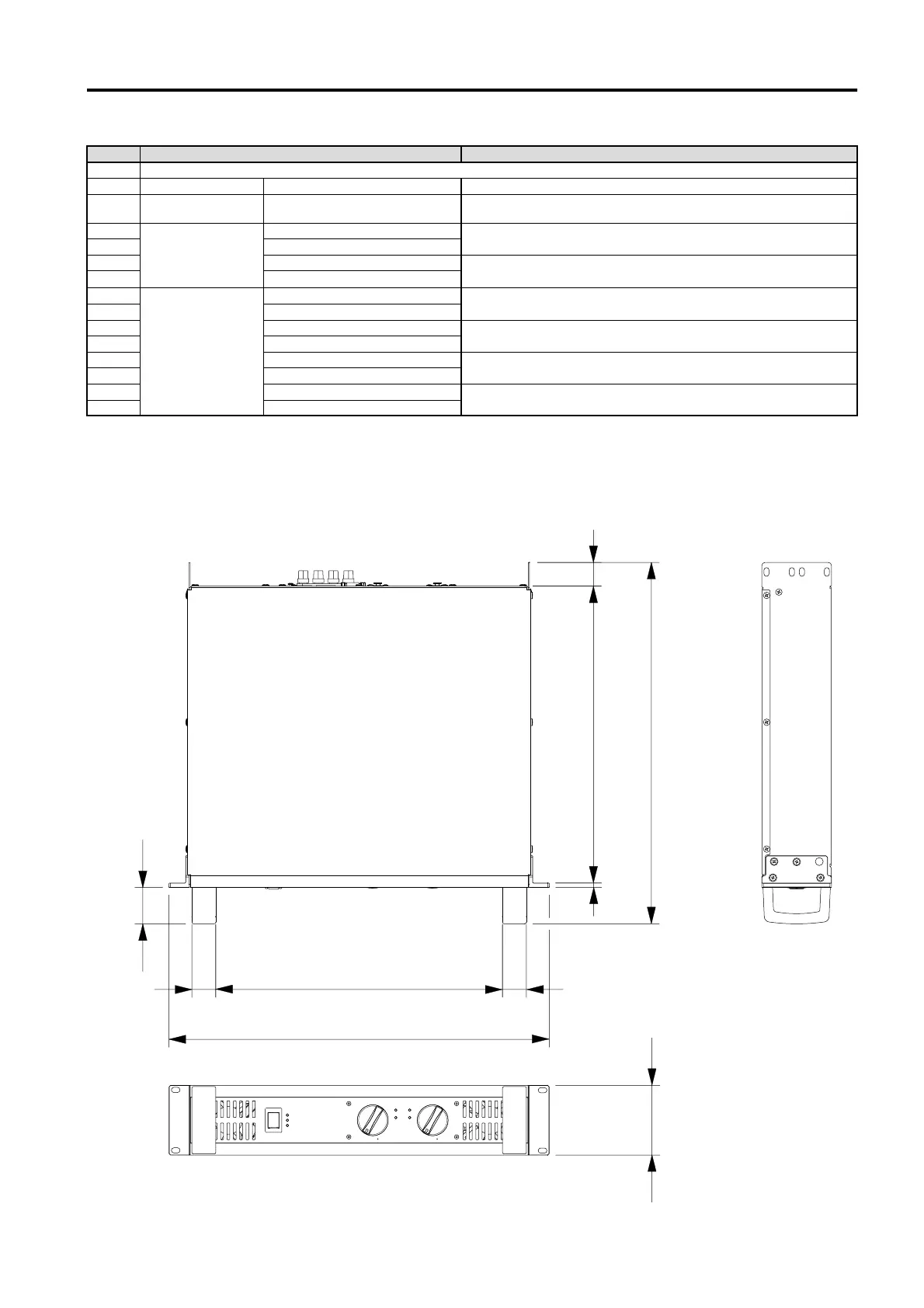

■ MONITOR/REMOTE PIN layout
■ Dimensions
Unit: mm
Pin No. Signal Description
1 GND
2 REMOTE CONTROL STANDBY STANDBY Control: Supply 5 VDC, 5 mADC
3 MONITOR MODEL ID XP7000: 1.0 kΩ, XP5000: 1.2 kΩ, XP3500: 1.5 kΩ,
XP2500: 1.8 kΩ, XP1000: 2.2 kΩ (Impedance to GND)
4 REMOTE CONTROL NC
5NC
6 MUTE CH B MUTE On Control: Connect the pin to GND (max. 1mA flows)
MUTE Off Control: Open the pin (+5V applied)
7 MUTE CH A
8 MONITOR NC
9NC
10 PROTECTION/MUTE STATUS CH B Protection/Mute On: +5 VDC, Zo=270 Ω
Protection/Mute Off: 0 VDC, Zo=High
11 PROTECTION/MUTE STATUS CH A
12 NC
13 NC
14 OUTPUT LEVEL CH B XP7000, XP5000, XP3500, XP2500, XP1000
+4dBu (-27.2 dB of Speaker Output Level) at 100 W/8Ω, RL=7.5 kΩ, Zo=300 Ω
15 OUTPUT LEVEL CH A
88
456
480
362
3030
5.5
374.5 30
46
