Yamaha XP5000 - Bridged Mode Operation; High-Power Mono Connection

XP7000/XP5000/XP3500/XP2500/XP1000 Owner’s Manual
9
■

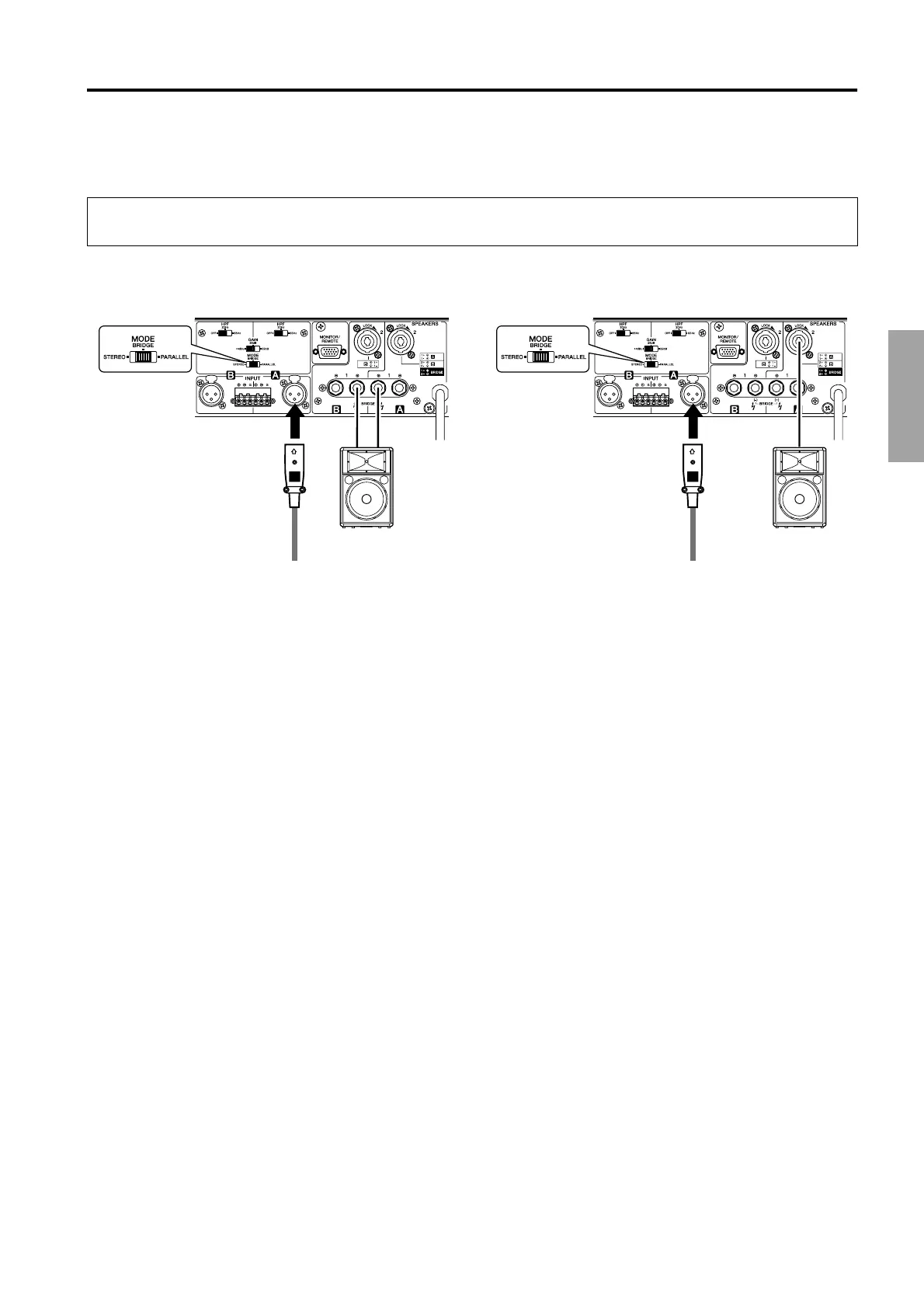

Bridged Mode (use as high-power mono amplifier)
Set the Mode switch to BRIDGE to use the unit as a high-power mono amplifier. The volume control A on the front panel A
lets you control the volume.
● 5-way binding post ● Speakon connector
Note: In this case, the loads for A and B are directly connected in the amplifier. Make sure not to input any signal
to the B terminal.
+
–
Minimum speaker
impedance: 8Ω
Minimum speaker
impedance: 8Ω
