–9–
H To the speedometer light leads.
I Rectifier/regulator lead should not be out over the
bracket.
J Pass the right handlebar switch lead and headlight
lead over the other harness and leads.
K Pass the clutch cable through the cable guide.
L Fasten the sidestand switch lead and rectifier/
regulator lead with a plastic locking tie.
M Install the plastic locking tie so that it is up against
the frame projection.
N To the engine.
O Pass the sidestand switch and the lead wire
through the sidestand bracket.
When installing, wake sure not to have any extra
loosening.
A Inside the motorcycle.
B Place the end of the plastic locking tie as shown.
C Fasten the rear brake switch lead, sidestand switch
lead and rectifier/regulator lead with metal clamp
or plastic locking tie.
D Pass the front flasher light leads (left and right) and
headlight lead through the headlight cover hole.
E Pass the left handlebar switch lead behind the
upper bracket.
F Fasten the left handlebar switch lead with a plastic
locking tie.
G Pass the speedometer cable, speedometer light
leads and fuel tank breather hose through the fuel
tank hole.

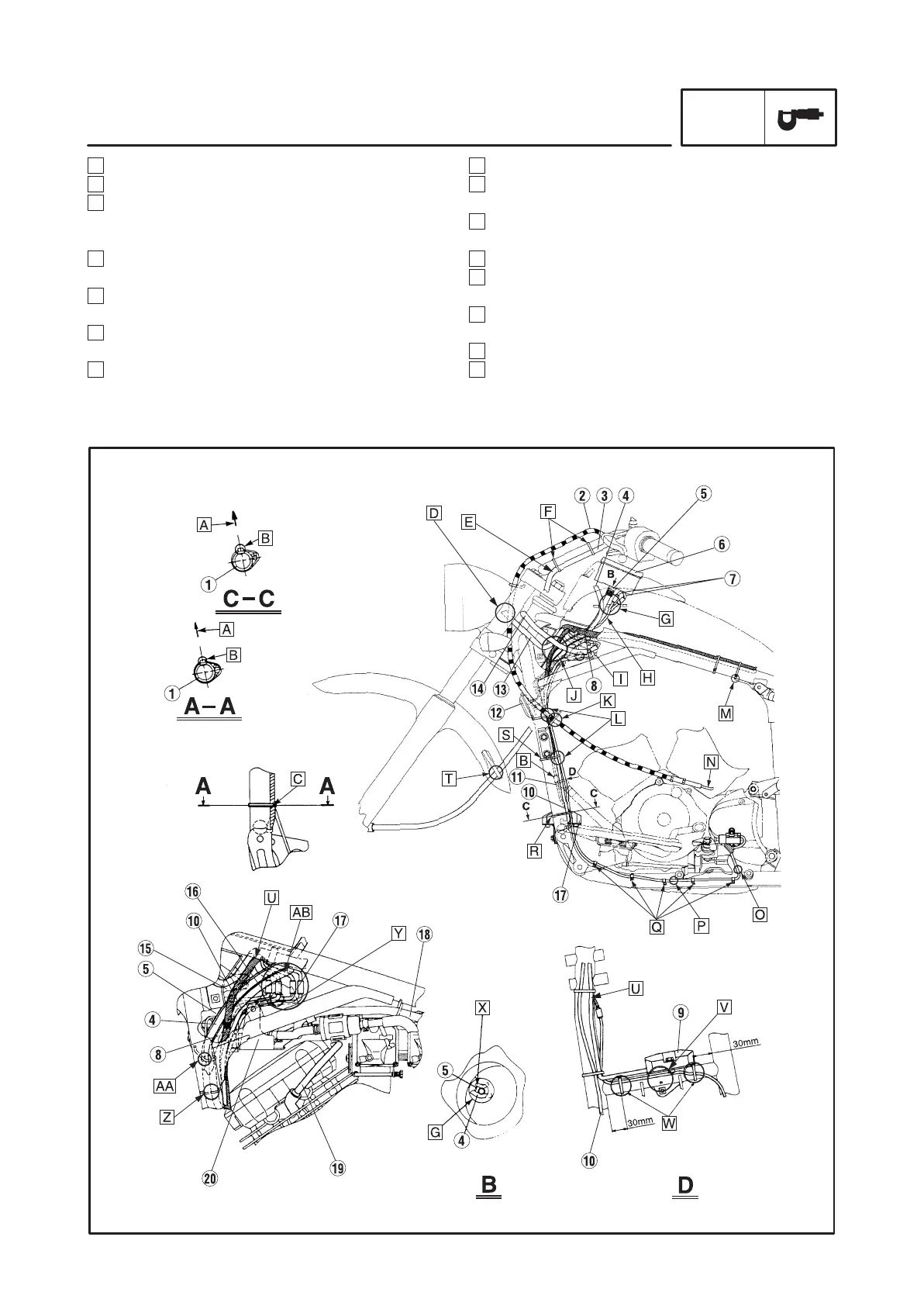

CABLE ROUTING
SPEC
