Yamaha XVS650A - AIR INDUCTION SYSTEM; Removing the Air Induction System

–23–
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8

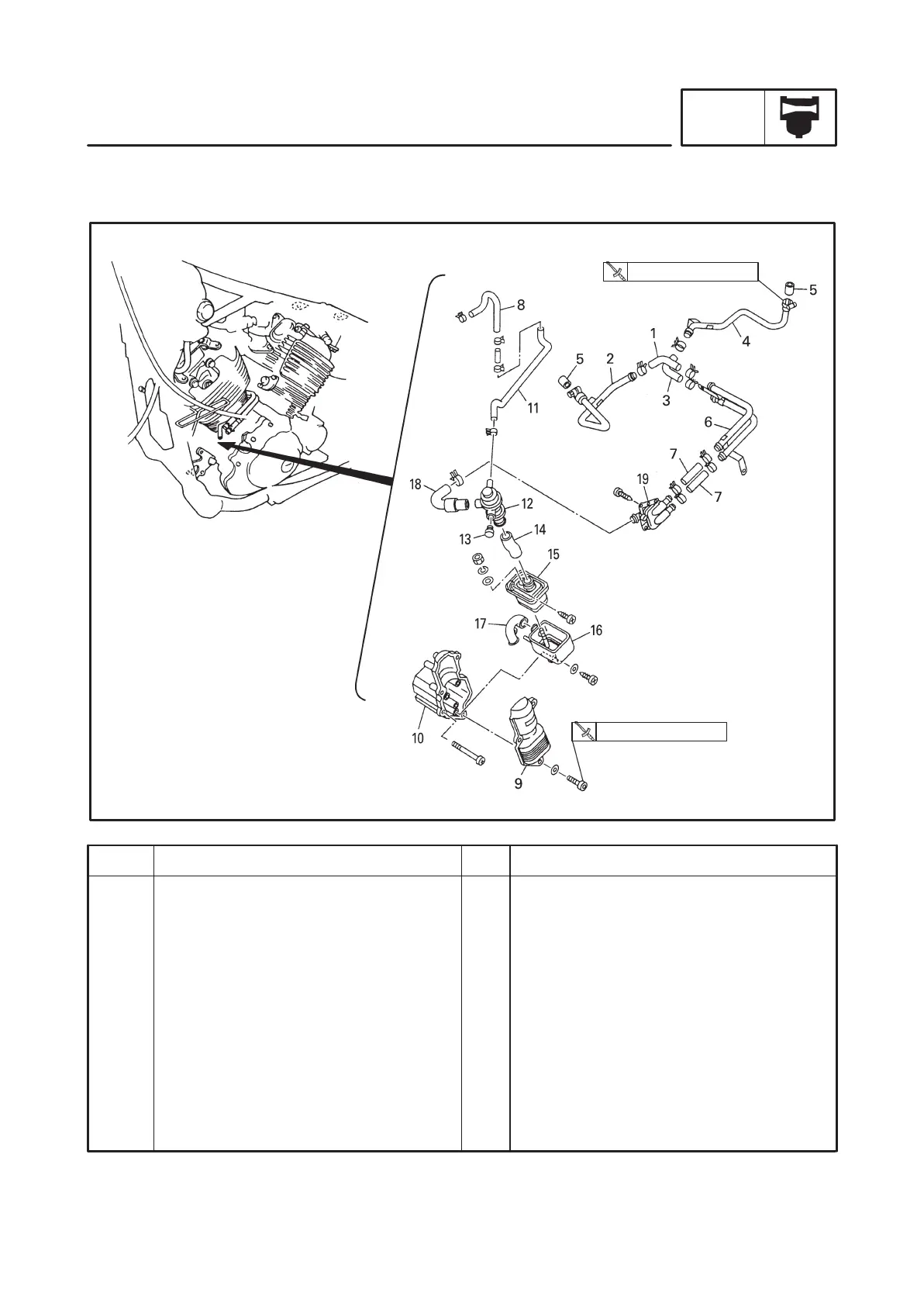

Removing the air induction system
Reed valve case to front cylinder head
hose
Reed valve case to front cylinder head
pipe
Reed valve case to rear cylinder head
hose
Reed valve case to rear cylinder head
hose
Gasket
Reed valve case to cylinder head pipe
Reed valve case to cylinder head hose
Vacuum hose 2
1
1
1
1
2
1
2
1
Remove the parts in the order listed.
4 Nm (0.4 mkg)
2 Nm (0.2 mkg)
AIR INDUCTION SYSTEM
CARB
