Yamaha YZ450F(E) 2014 - FRONT WHEEL

FRONT WHEEL
4-3
EAS1SL1122
FRONT WHEEL

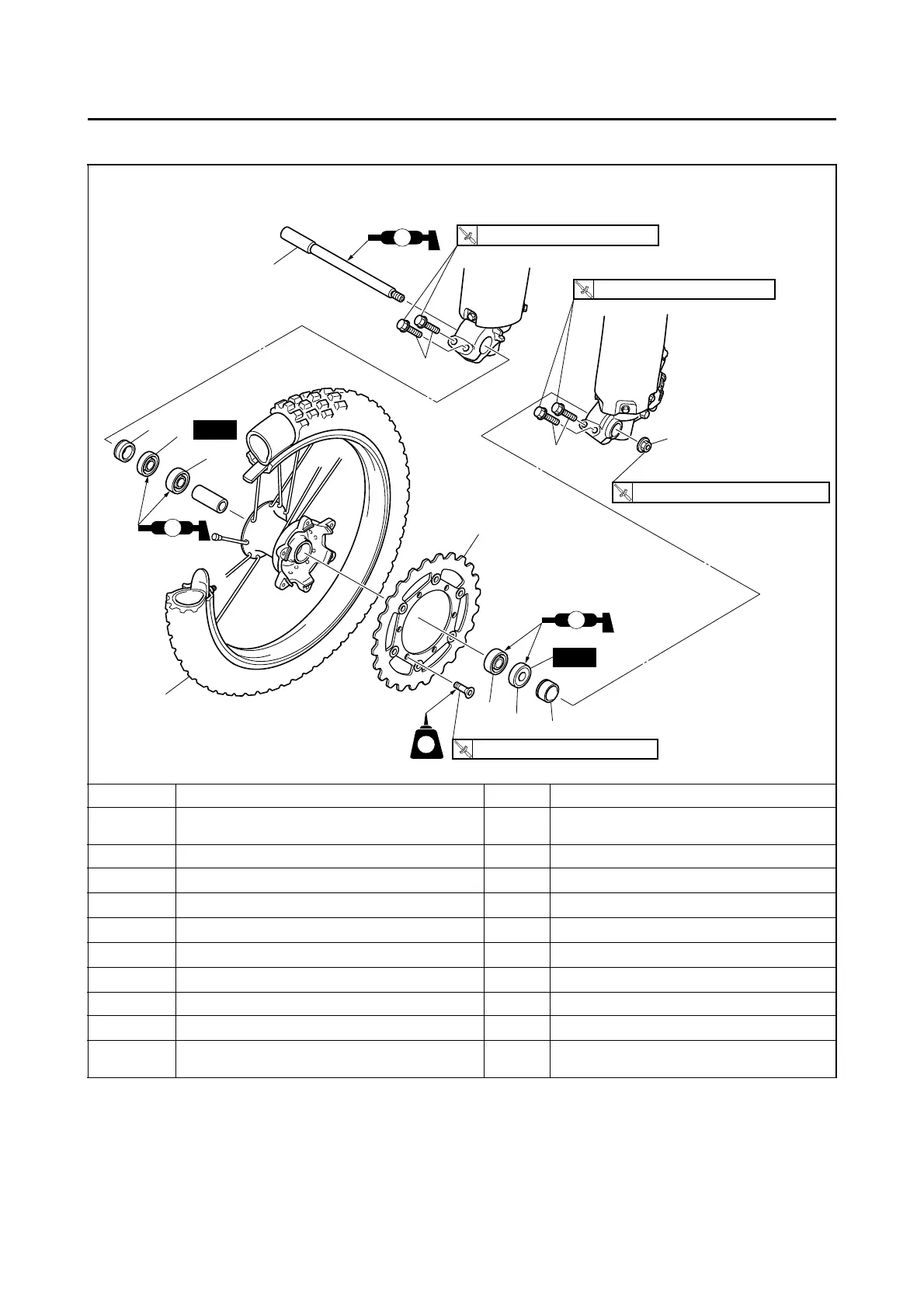

Removing the front wheel
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
1 Front wheel axle pinch bolt 4 Loosen.
2 Front wheel axle nut 1
3 Front wheel axle 1
4 Front wheel 1
5 Collars 2
6 Oil seals 2
7 Bearing 2
8 Brake disc 1
For installation, reverse the removal proce-
dure.
12 Nm (1.2 m
•
kgf, 8.7 ft
•
Ibf)
T
.R.
New
New
LT
LS
LS
LS
5
7
6
5
6
7
(6)
8
1
2
1
3
21 Nm (2.1 m
•
kgf, 15 ft
•
Ibf)
T
.R.
21 Nm (2.1 m
•
kgf, 15 ft
•
Ibf)
T
.R.
4
115 Nm (11.5 m
•
kgf, 83 ft
•
lbf)
T
.R.
