Yamaha YZ450F(E) 2014 - SHIFT SHAFT

SHIFT SHAFT
5-49
EAS1SL1254
SHIFT SHAFT

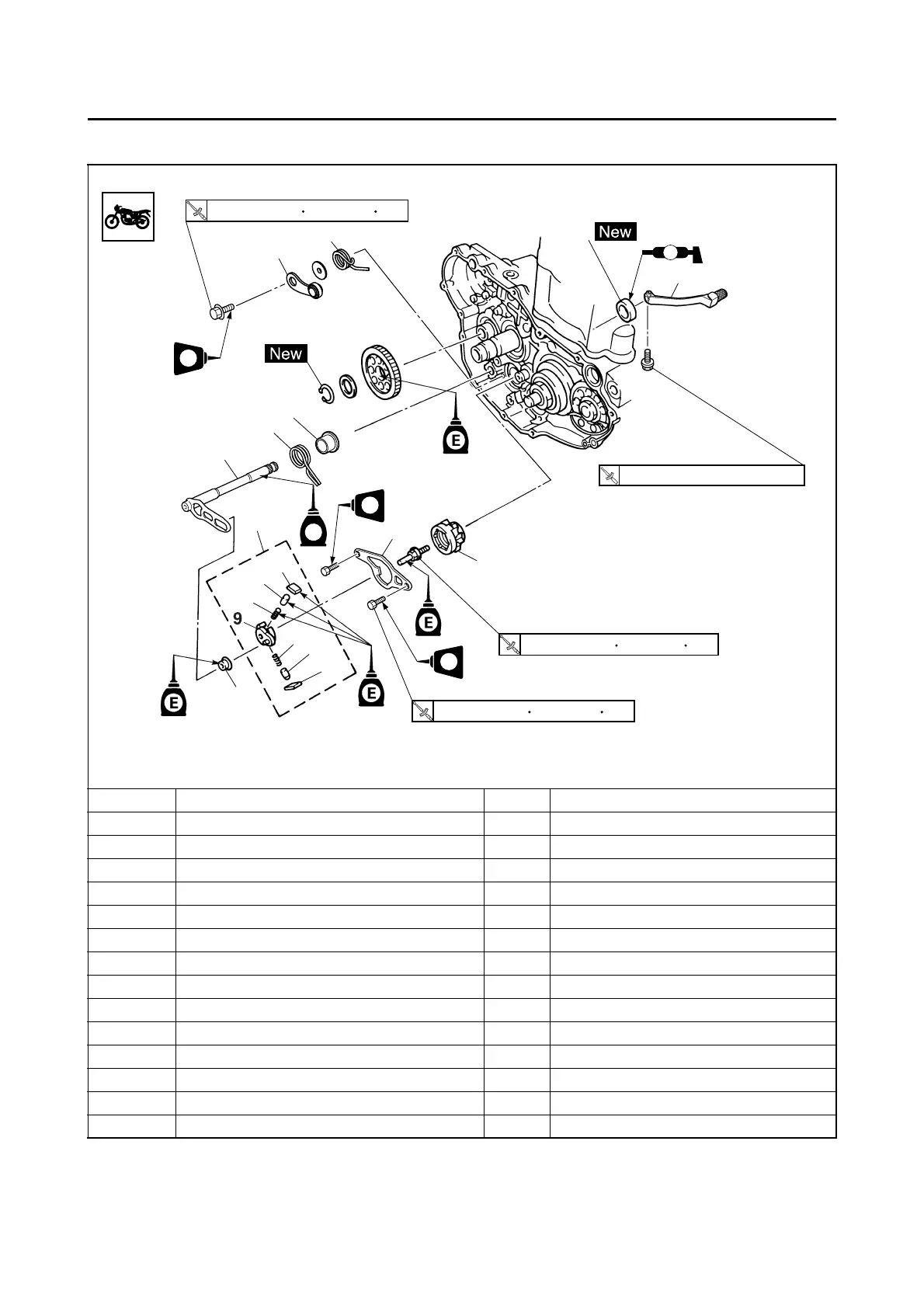

Removing the shift shaft and stopper lever
Order Part name Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 5-37.
1 Shift pedal 1
2 Shift shaft 1
3 Oil seals 1
4 Collars 1
5 Shift shaft spring 1
6 Roller 1
7 Shift guide 1
8 Shift lever assembly 1
9 Shift lever 1
10 Pawl 2
11 Pawl pin 2
12 Spring 2
13 Stopper lever 1
LS
1
3
10 Nm (1.0 m kgf, 7.2 ft lbf)
13
15
14
10 Nm (1.0 m kgf, 7.2 ft lbf)
30 Nm (3.0 m kgf, 22 ft lbf)
LT
6
10
11
12
11
8
12
10
4
2
5
LT
7
LT
E
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
