Yamaha YZ450F(E) 2014 - CLUTCH

CLUTCH
5-37
EAS1SL1232
CLUTCH

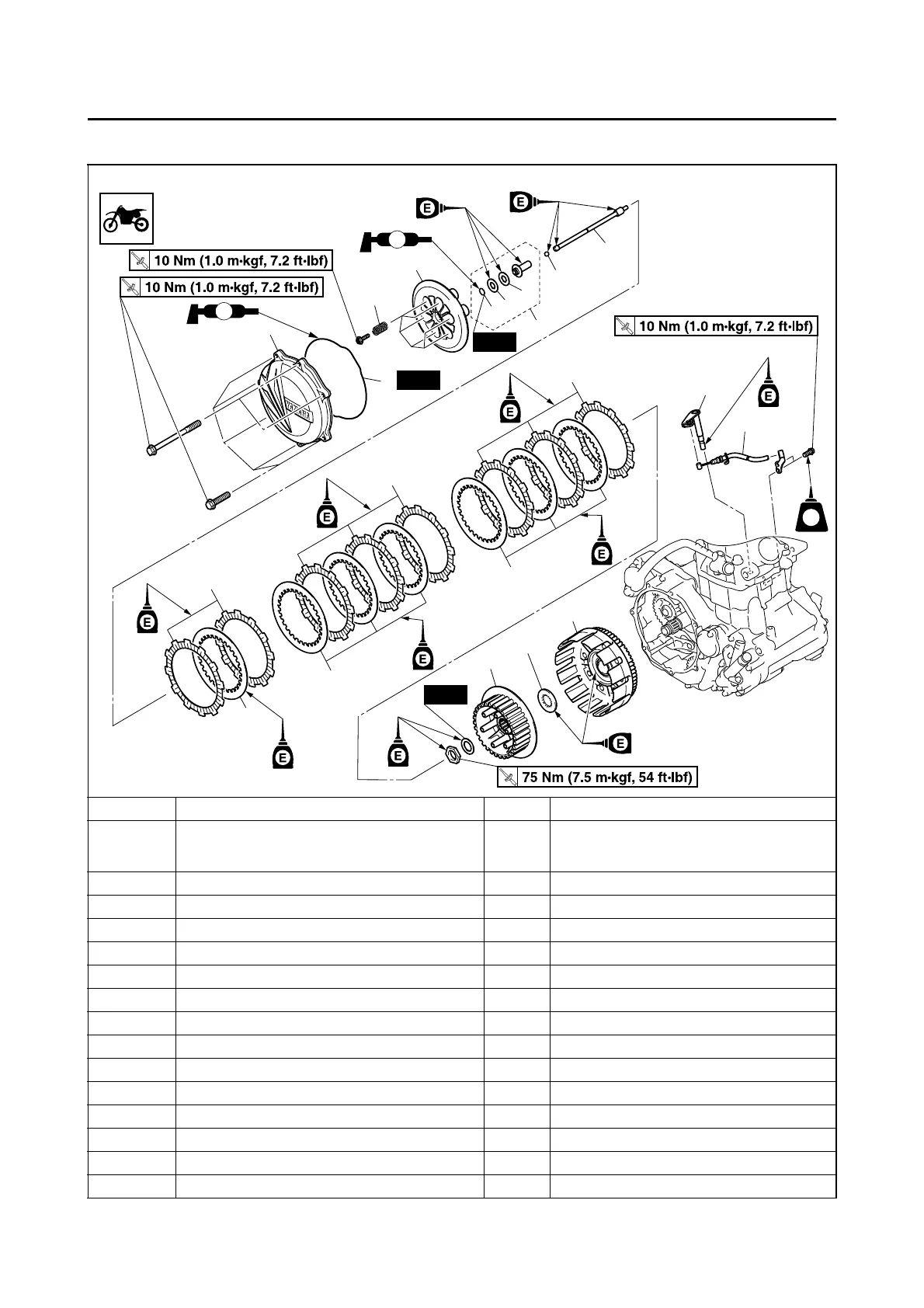

Removing the clutch
Order Part name Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-15.
Brake pedal Refer to “ENGINE REMOVAL” on page 5-1.
1 Clutch cable 1 Disconnect.
2 Clutch cover 1
3 O-ring 1
4 Clutch spring 6
5 Pressure plate 1
6 Push rod 1 1
7 Circlip 1
8 Washers 1
9 Bearing 1
10 Ball 1
11 Push rod 2 1
12 Friction plate 1 5
13 Clutch plate 7
LS
LS
New
New
New
2
3
4
5
7
8
9
6
10
11
13
12
12
18
1
14
13
13
17
16
15
T
.R.
T
.R.
T
.R.
T
.R.
LT
