Yamaha YZ450F(E) 2014 - Installing the Stopper Lever; Installing the Segment; Installing the Shift Guide and Shift Lever Assembly

SHIFT SHAFT
5-52
EAS1SL1260

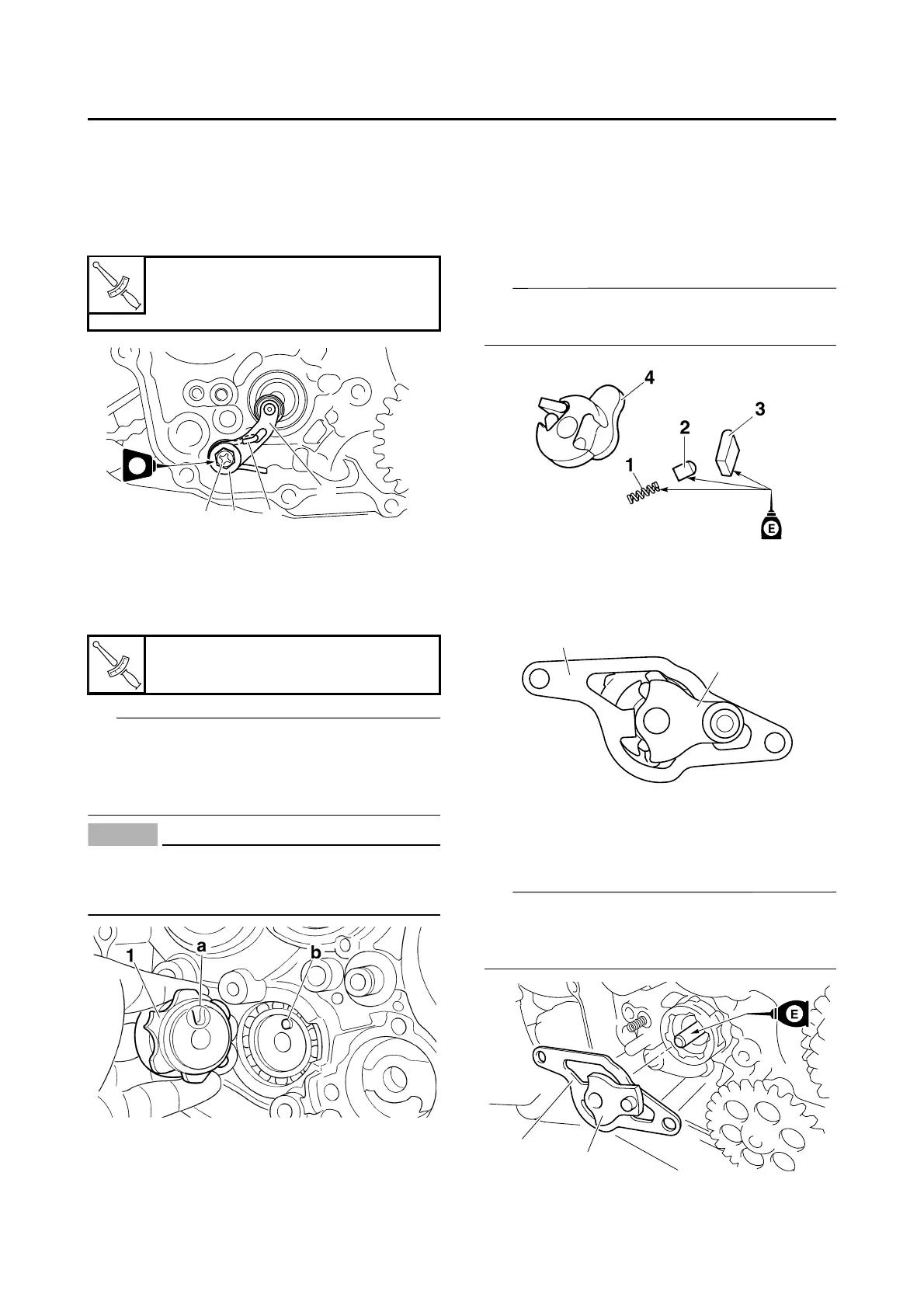

INSTALLING THE STOPPER LEVER
1. Install:
• Torsion spring “1”
• Collar “2”
• Stopper lever “3”
• Bolt (stopper lever) “4”
EAS1SL1261
INSTALLING THE SEGMENT
1. Install:
• Segment “1”
• Segment bolt
TIP
• Align the notch “a” on the segment with the
pin “b” on the shift cam.
• With the stopper lever pushed down, install
the segment.
ECA1DX1022
NOTICE
If the segment gets an impact, it may be
damaged. Take care not to give an impact to
it when tightening the bolt.
EAS1SL1262
INSTALLING THE SHIFT GUIDE AND SHIFT
LEVER ASSEMBLY
1. Install:
• Spring “1”
• Pawl pin “2”
•Pawl “3”
(to the shift lever “4”)
TIP
Apply the engine oil on the spring, pawl pin and
pawl.
2. Install:
• Shift lever assembly “1”
(to the shift guide “2”)
3. Install:
• Shift lever assembly “1”
• Shift guide “2”
TIP
• The shift lever assembly is installed at the
same time as the shift guide.
• Apply the engine oil on the segment bolt shaft.
Bolt (stopper lever)
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Segment bolt
30 Nm (3.0 m·kgf, 22 ft·lbf)
