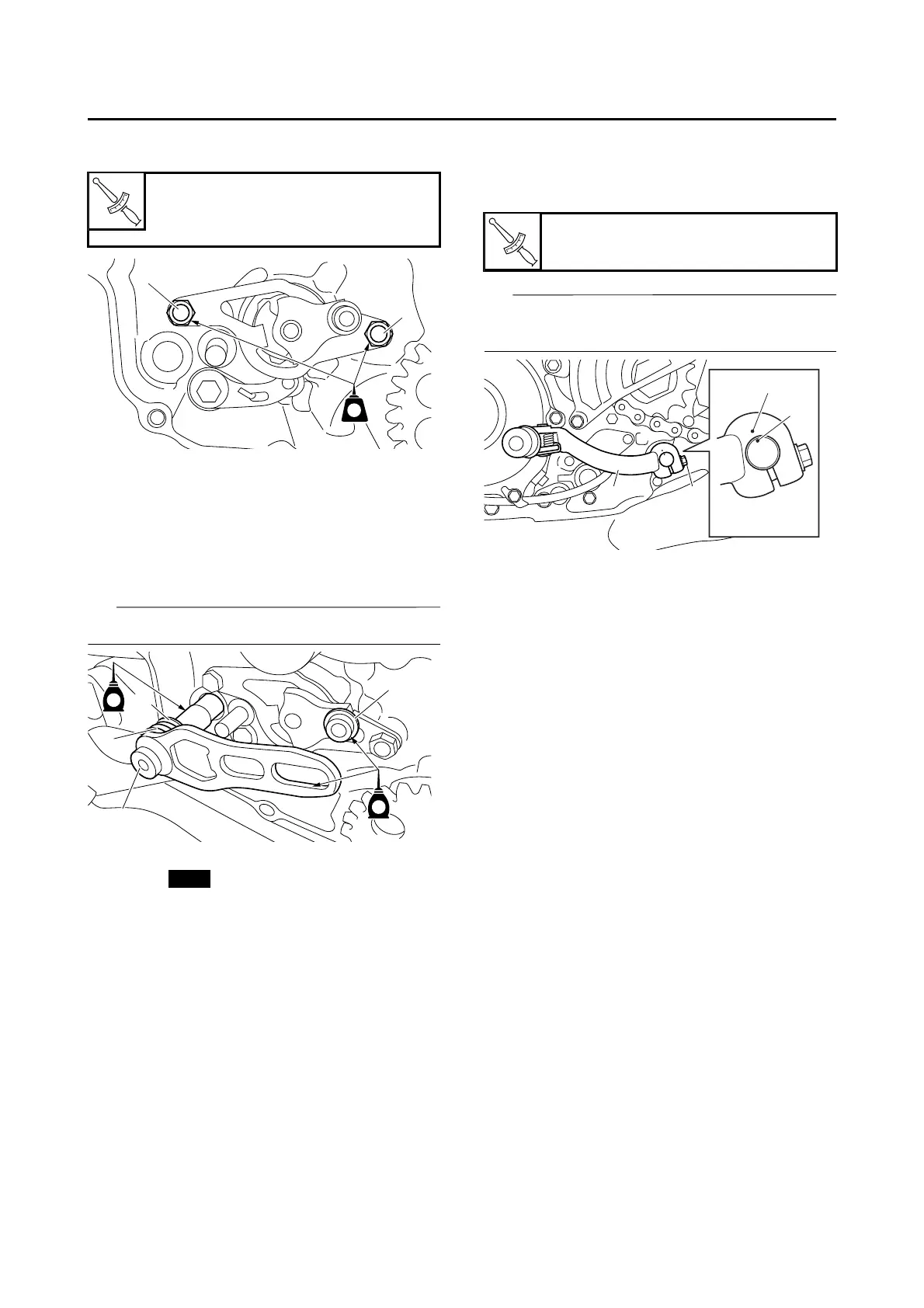

Yamaha YZ450F(E) 2014 - Installing the Shift Shaft; Installing the Shift Pedal

SHIFT SHAFT
5-53
4. Tighten:
• Shift guide bolt “1”
EAS1SL1263
INSTALLING THE SHIFT SHAFT
1. Install:
• Roller “1”
• Shift shaft spring “2” (to shift shaft)
• Collar “3” (to shift shaft)
• Shift shaft “4”
TIP
Apply the engine oil on the roller and shift shaft.
2. Install:
• Oil seal
EAS1SL1264
INSTALLING THE SHIFT PEDAL
1. Install:
• Shift pedal “1”
• Shift pedal bolt “2”
TIP
Align the punch mark “a” on the shift shaft with
the punch mark “b” in the shift pedal.
Shift guide bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
T
R
.
.
1
1
LT
E
E
1
2
3
4
New
Shift pedal bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
T
R
.
.
a
12
b
