Yamaha YZ450F(E) 2014 - TRANSMISSION

TRANSMISSION
5-70
EAS1SL1288
TRANSMISSION

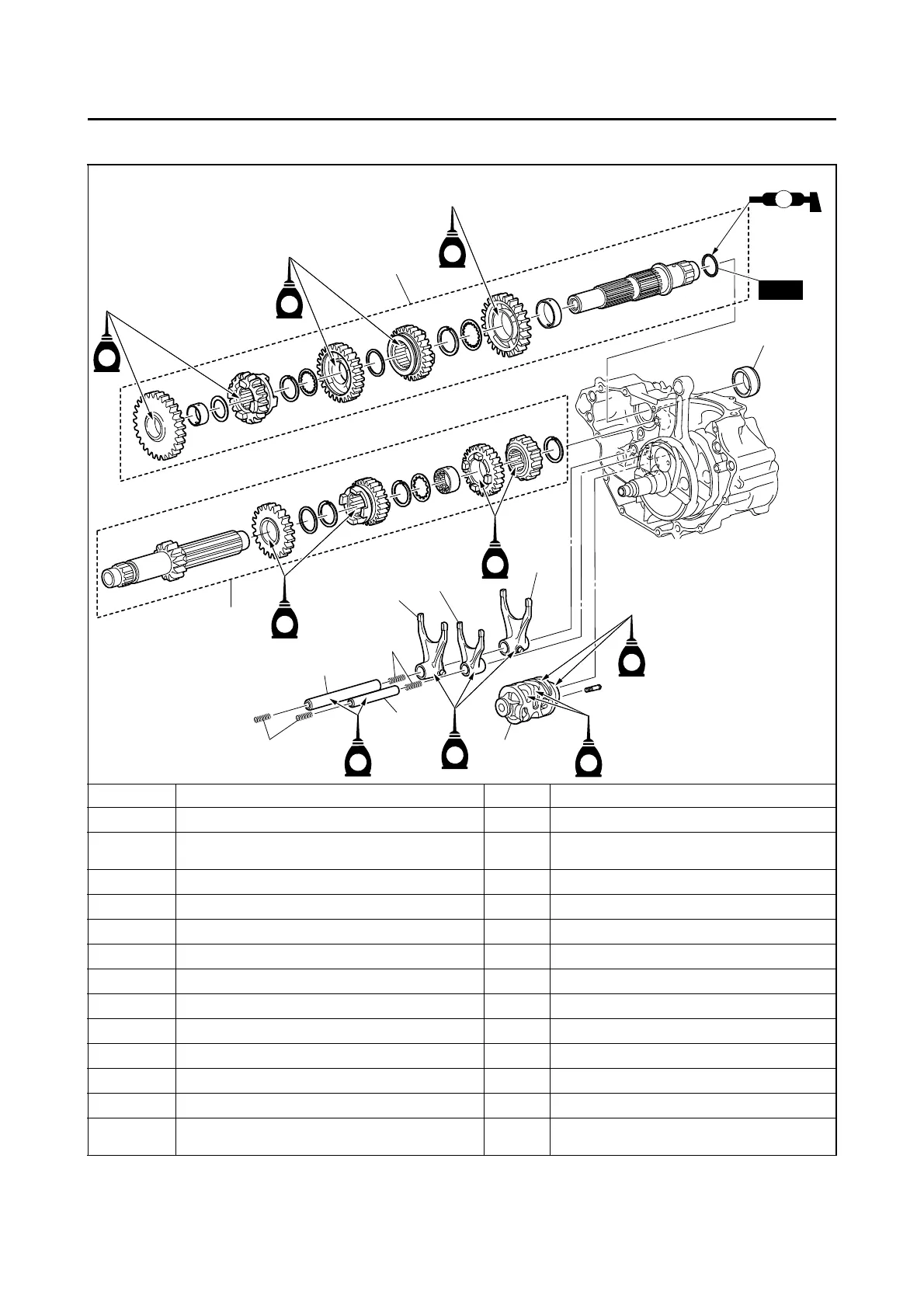

Removing the transmission, shift drum assembly, and shift forks
Order Part name Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-1.
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-62.
1 Main axle 1
2 Drive axle 1
3 Long shift fork guide bar 1
4 Short shift fork guide bar 1
5 Spring 4
6 Shift cam 1
7 Shift fork 3 (R) 1
8 Shift fork 2 (C) 1
9 Shift fork 1 (L) 1
10 Collars 1
For installation, reverse the removal proce-
dure.
2
10
1
5
3
4
5
7
8
6
9
M
M
M
M
M
E
E
E
E
LS
New
