Yamaha YZF-R1 Service Manual

– 85 –
Installing the Crankcase
Tightening the bolts
1. Tighten the bolts in the tightening sequence of 1 to 10 to 29.4 N•m (3.0 kg•m).
2. After loosening the bolts once in the tightening sequence of 1 to 10, retighten them one by
one to 17.6 N•m (1.8 kg•m).
3. Retighten the bolts in the tightening sequence of 1 to 10 to a turn-of-nut angle of 60°±5°
(60° at new).
Tightening torque for reference: 35.0 N•m (3.5 kg•m)
4. Tighten the bolts in the tightening sequence of 11 to 20 to 24±2 N•m (2.4±0.2 kgf•m).
5. Tighten the bolts in the tightening sequence of 21 to 40 to 10±2 N•m (1.0±0.2 kgf•m).
TIP

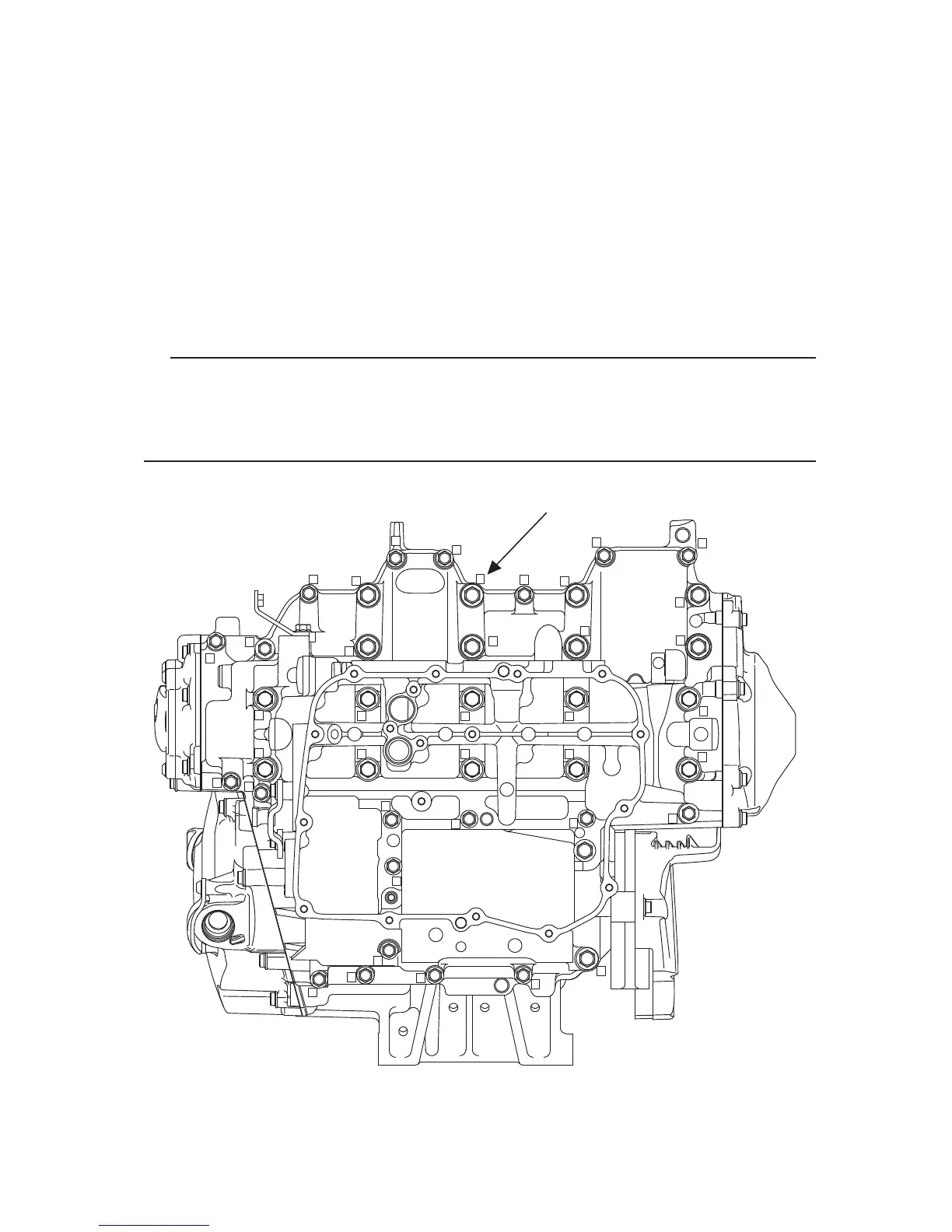

The numbers 1 to 40 show the sequence in which the bolts are tightened.
Apply engine oil to the bolt threads and both sides of the washers.
Replace bolts 1 to 10 during overhaul.
If O-rings are used with bolts 11 to 18, replace those O-rings during overhaul.
These numbers indicate the tightening sequence.
29
30
31
21
23
18
24
25
11
26
14
27
28
16
17
9
8
22
34
12
13
19
20
37
38
36
39
40
35
33
32
15
10
2
6
31
5
7
4

Yamaha YZF-R1 Specifications

General

Bore x Stroke	79.0mm x 50.9mm
Compression Ratio	13.0:1
Fuel System	Fuel injection with YCC-T and YCC-I
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	190/55ZR17
Wheelbase	55.3 in
Fuel Capacity	4.5 gal
Curb Weight	448 lb
Width	27.2 in
Ground Clearance	5.1 in
Engine Type	Liquid-cooled inline 4-cylinder; DOHC, 4 valves per cylinder
Transmission	6-speed
Clutch	Multiplate slipper clutch
Front Suspension	43mm KYB® inverted fork; fully adjustable
Rear Suspension	KYB® single shock; fully adjustable
Front Brakes	Dual 320mm hydraulic disc; ABS
Rear Brakes	220mm hydraulic disc; ABS
