REAR WHEEL
4-18
EAS22110

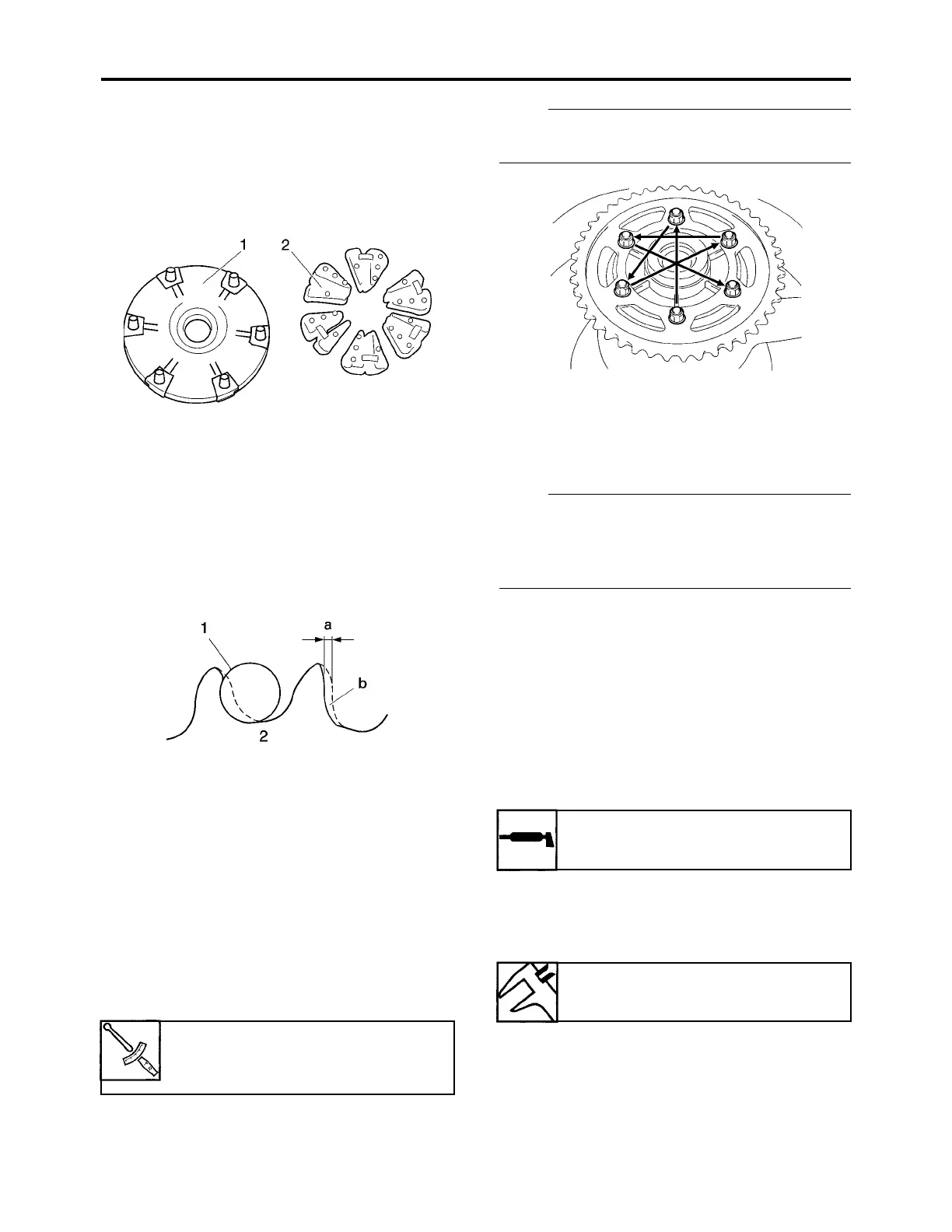

CHECKING THE REAR WHEEL DRIVE HUB
1. Check:
• Rear wheel drive hub “1”
Cracks/damage → Replace.
• Rear wheel drive hub dampers “2”
Damage/wear → Replace.
EAS22120
CHECKING AND REPLACING THE REAR
WHEEL SPROCKET
1. Check:
• Rear wheel sprocket
More than 1/4 tooth “a” wear → Replace
the rear wheel sprocket.
Bent teeth → Replace the rear wheel
sprocket.
2. Replace:
• Rear wheel sprocket
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the self-locking nuts and the rear
wheel sprocket.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces that contact
the sprocket.
c. Install the new rear wheel sprocket.
NOTE:
Tighten the self-locking nuts in stages and in a
crisscross pattern.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS22150
ADJUSTING THE REAR WHEEL STATIC
BALANCE
NOTE:
• After replacing the tire, wheel or both, the
rear wheel static balance should be adjusted.
• Adjust the rear wheel static balance with the
brake disc and rear wheel drive hub installed.
1. Adjust:
• Rear wheel static balance
Refer to "ADJUSTING THE FRONT
WHEEL STATIC BALANCE" on page 4-11.
EAS22160
INSTALLING THE REAR WHEEL
1. Lubricate:
• Wheel axle
• Wheel bearings
• Oil seal lips
2. Adjust:
• Drive chain slack
Refer to "ADJUSTING THE DRIVE CHAIN
SLACK" on page 3-26.
3. Tighten:
• Rear wheel axle nut
• Rear brake caliper bolts
b. Correct
1. Drive chain roller
2. Rear wheel sprocket
Rear wheel sprocket self-lock-
ing nut
100 Nm (10 m·kg, 72 ft·lb)
Recommended lubricant
Lithium-soap-based grease
Drive chain slack
30.0–40.0 mm (1.18–1.57 in)
