THROTTLE BODIES
7-4
EAS26970
THROTTLE BODIES

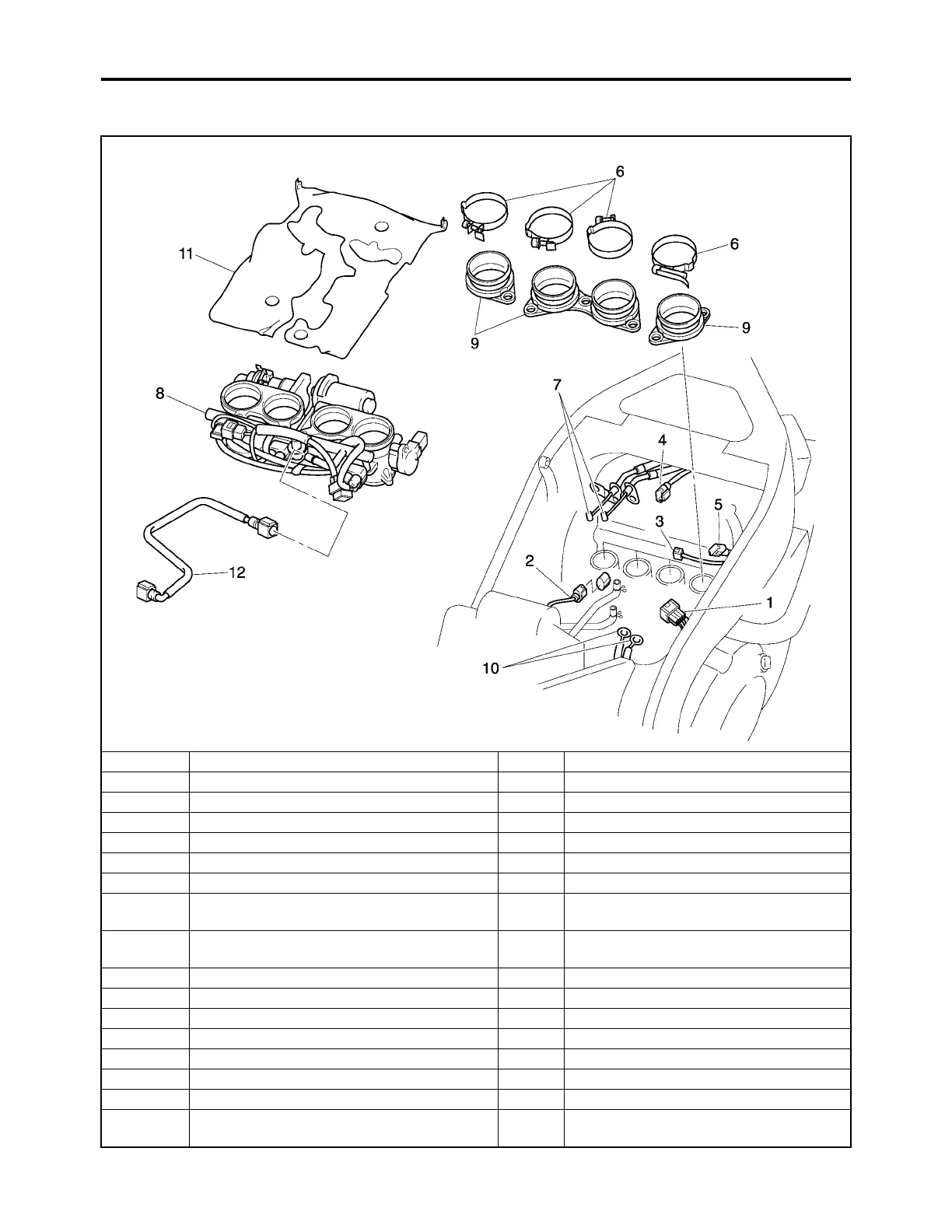

Removing the throttle bodies
Order Job/Parts to remove Q’ty Remarks
Rider seat Refer to "GENERAL CHASSIS" on page 4-1.
Fuel tank Refer to "FUEL TANK" on page 7-1.
Air filter case Refer to "GENERAL CHASSIS" on page 4-1.
1 Sub-wire harness coupler 1 Disconnect.
2 Coolant temperature sensor coupler 1 Disconnect.
3 Throttle servo motor coupler 1 Disconnect.
4
Throttle position sensor (for throttle valves) cou-
pler
1 Disconnect.
5
Throttle position sensor (for throttle cable pulley)
coupler
1 Disconnect.
6 Throttle body joint clamp 4 Loosen.
7 Throttle cables 2 Disconnect.
8 Throttle bodies 1
9 Throttle body joint 3
10 Engine ground 2
11 Heat protector 1
12 Fuel hose 1
For installation, reverse the removal proce-
dure.
To Next Page
