REAR SHOCK ABSORBER ASSEMBLY
4-59
EAS23160

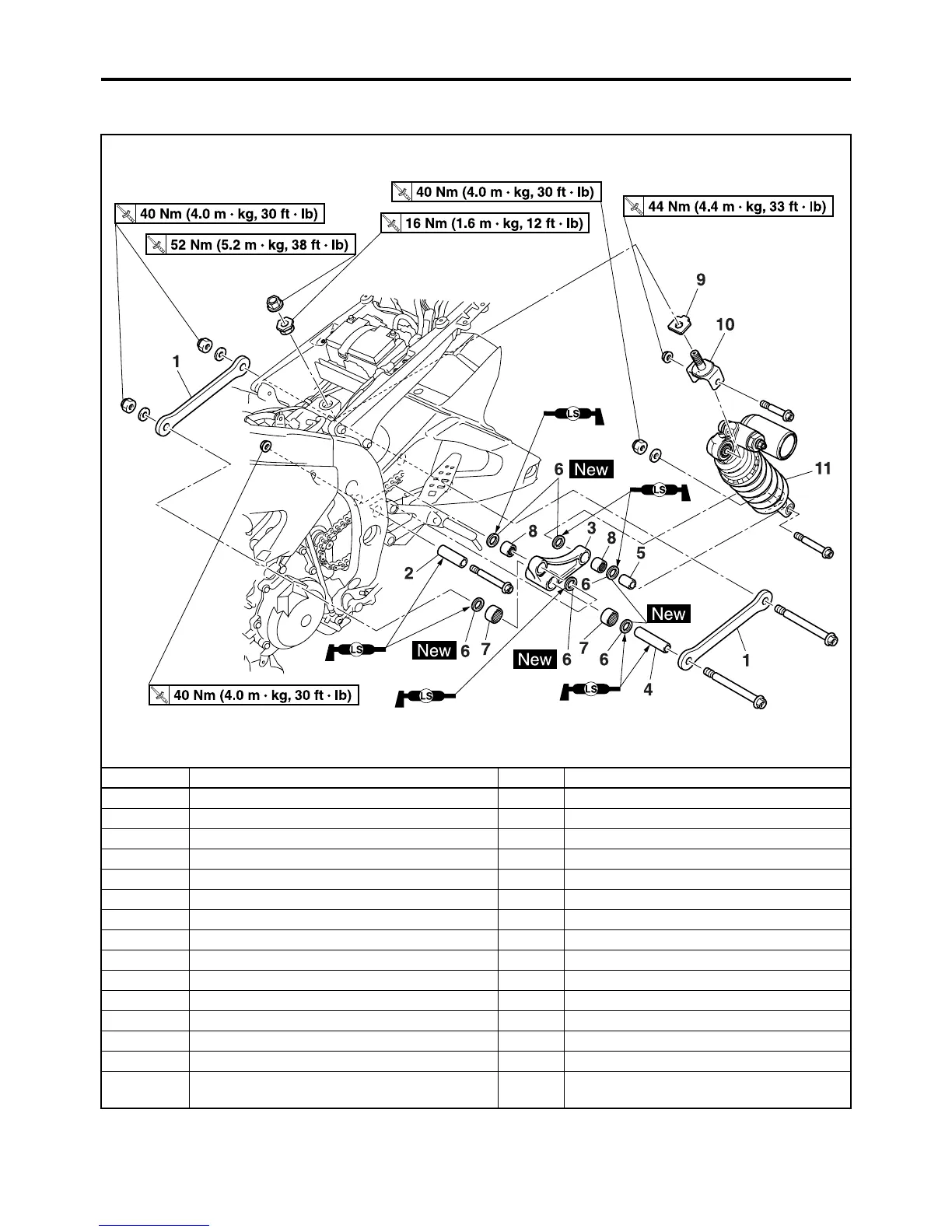

REAR SHOCK ABSORBER ASSEMBLY
Removing the rear shock absorber assembly
Order Job/Parts to remove Q’ty Remarks
Exhaust pipe assembly brackets Refer to “ENGINE REMOVAL” on page 5-1.
Rear wheel Refer to “REAR WHEEL” on page 4-12.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Connecting arm 2
2 Relay arm collar 1
3Relay arm 1
4 Collar 1
5 Collar 1
6 Oil seal 6
7 Bearing 2
8 Bearing 2
9 Washer 1
10 Rear shock absorber assembly bracket 1
11 Rear shock absorber assembly 1
For installation, reverse the removal proce-
dure.
