SWINGARM
4-63
EAS23330

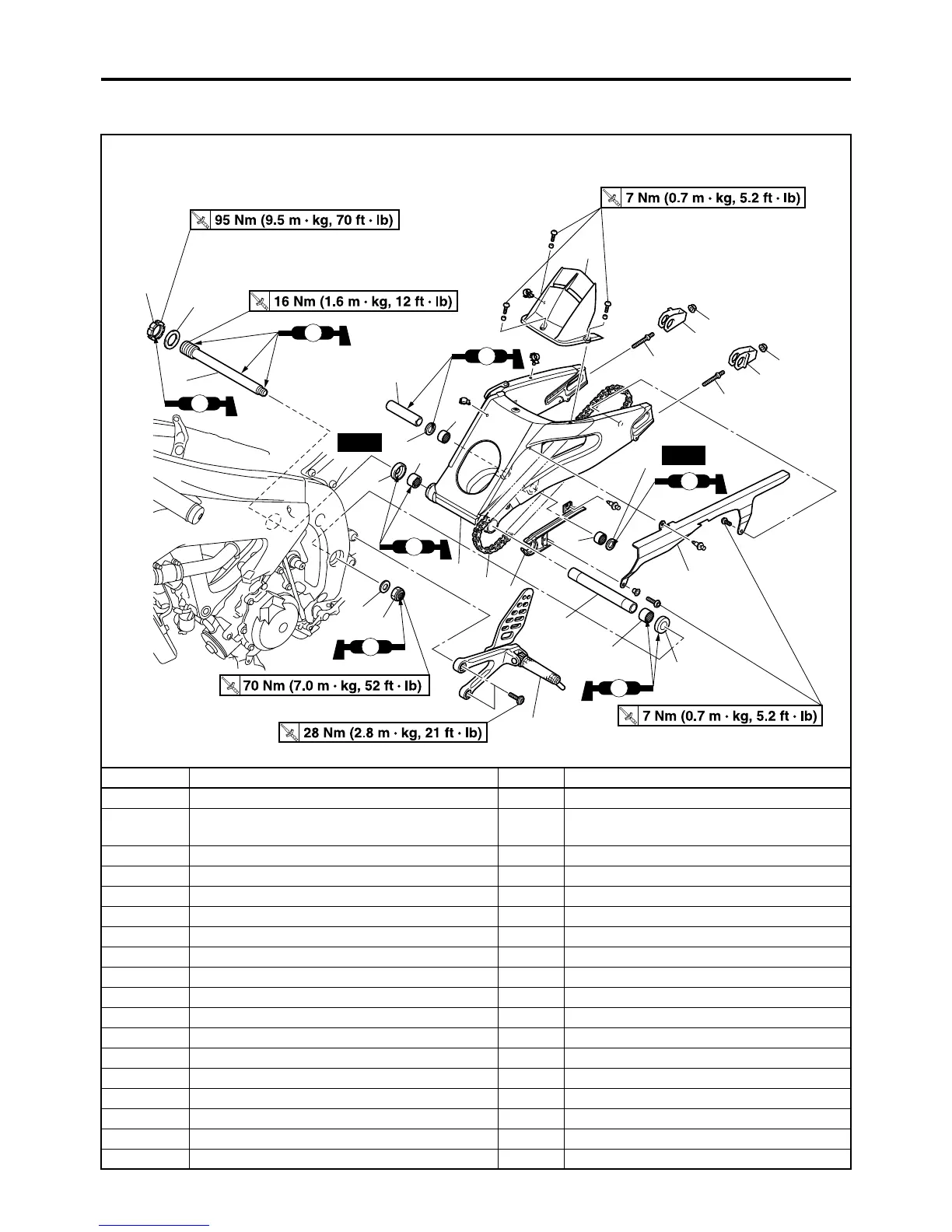

SWINGARM
Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear wheel Refer to “REAR WHEEL” on page 4-12.
Rear shock absorber
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-59.
Drive chain guide (drive sprocket side) Refer to “CHAIN DRIVE” on page 4-68.
1 Drive chain adjusting locknut 2
2 Drive chain puller 2
3 Drive chain adjusting bolt 2
4 Rear fender 1
5 Left footrest assembly 1
6 Drive chain guard 1
7 Drive chain guide (swingarm side) 1
8Drive chain 1
9 Swingarm pivot shaft nut 1
10 Washer 1
11 Swingarm pivot shaft ring nut 1
12 Washer 1
13 Swingarm pivot shaft 1
14 Swingarm 1
15 Dust cover 2
4
17
10
15
15
21
14
16
20
18
5
7
6
3
11
13
9
3
2
19
12
1
1
2
LS
LS
21
20
8
LS
LS
New
New
LS
LS
LS
To Next Page
