PRODUCT OVERVIEW
GM Series Operation Manual 17
12/05
B20-Type

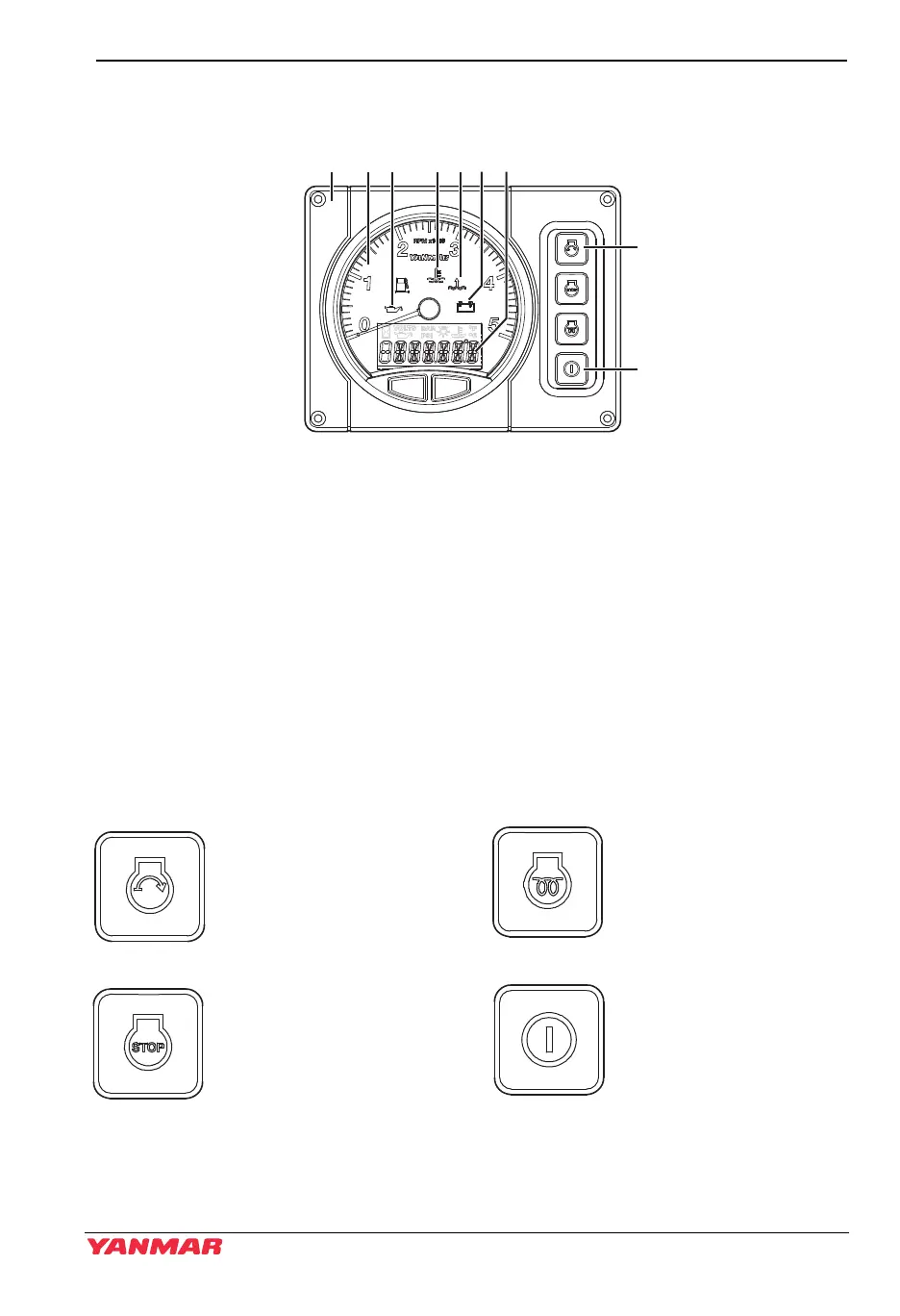

Figure 7
Instrument Panel Options and Components
Figure 8
1–“B20” instrument panel
2–Tachometer
3–Engine oil low pressure alarm lamp
4–Cooling water temperature alarm lamp
5–Seawater in sail drive alarm lamp (Optional)
6–Battery low charge alarm lamp
7–LCD (Hour meter)
8–Start switch
9–Power switch
Control panel switches
All switches are push-buttons.
Start switch
Pushing this switch
operates the starter and
starts the engine.
Stop switch
This feature is not
available on this engine.
Glow switch
This feature is not
available on this engine.
Power switch
Pushing this switch turns
on or off the power.
