4. Disassembly and reassembly
82

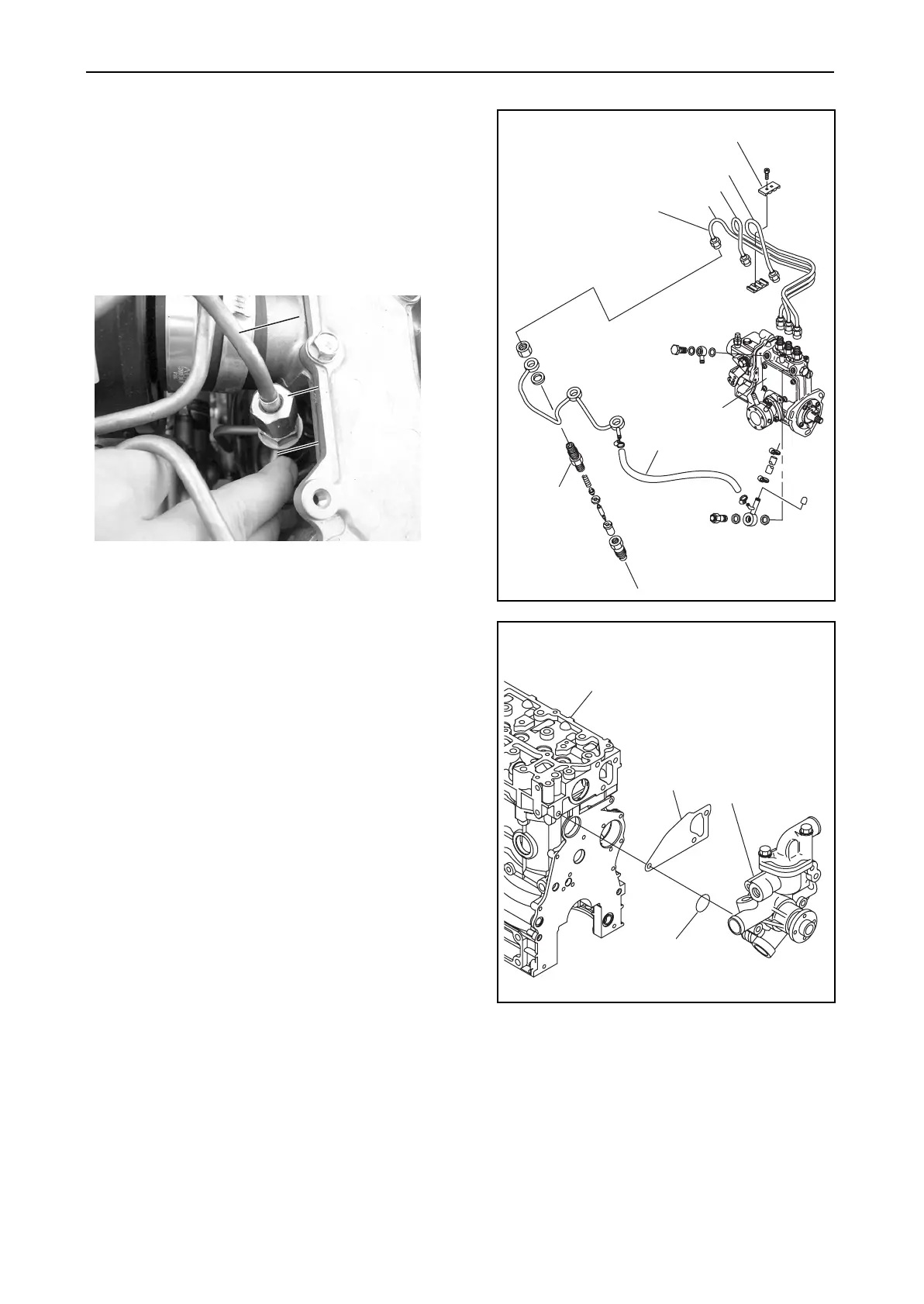

(13)Removing the fuel injection pipe
1) Remove the fuel injection pipe retainer.
2) Loosen the cap nuts on both ends of the fuel
injection pipe and remove the fuel injection pipe.
Note:
When loosening the cap nut, loosen the nut with
holding the return pipe by hand so that the fuel return
pipe may not break.
3) Remove the fuel return pipe (fuel nozzle-fuel
pump)
(14)Removing the fresh water pump
Remove the fresh water pump and gasket.
No. 1
No. 2
No. 3
Fuel injection pipe
Fuel injection pump
Fuel injection
nozzle
Fuel return pipe
Fuel injection pipe retainer
Fuel injection pipe
Cap nut
Fuel return pipe
Fuel injection pipe
Cap nut
Fuel return pipe
Cylinder head
Gasket
O-ring
Fresh water pump
