4. Disassembly and reassembly
83

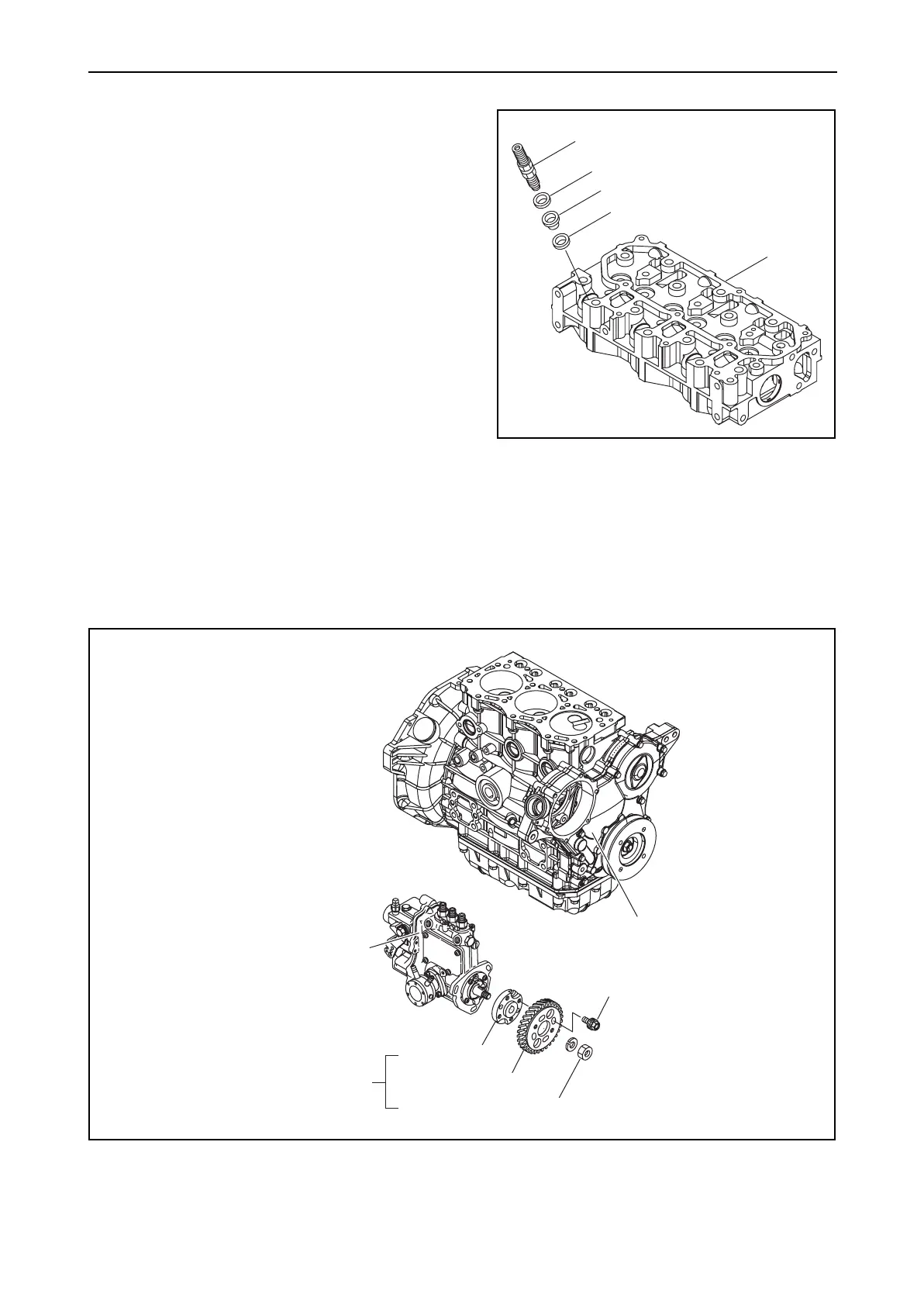

(15)Removing the fuel injection nozzles
Loosen the fuel nozzles and remove them from the
cylinder head.
(16)Remove the fuel injection pump
1) Loosen the drive gear nut for fuel pump drive gear, and pull out the fuel pump drive gear /flange
assembly with an extraction tool.
Note:
Don't disassemble the pump flange and the pump drive gear.
2) Loosen the three (3) nuts for the fuel pump and remove the fuel injection pump and O-ring from the
gear case.
Fuel injection nozzle
Nozzle protector
Nozzle seat
Nozzle seat
Cylinder head
Gear case cover
Fuel injection pump
Pump flange
Fuel pump drive gear
Don’t disassemble!
Drive gear nut
Pump flange bolt
Pump flange bolt
To Next Page
