4. Disassembly and reassembly
99

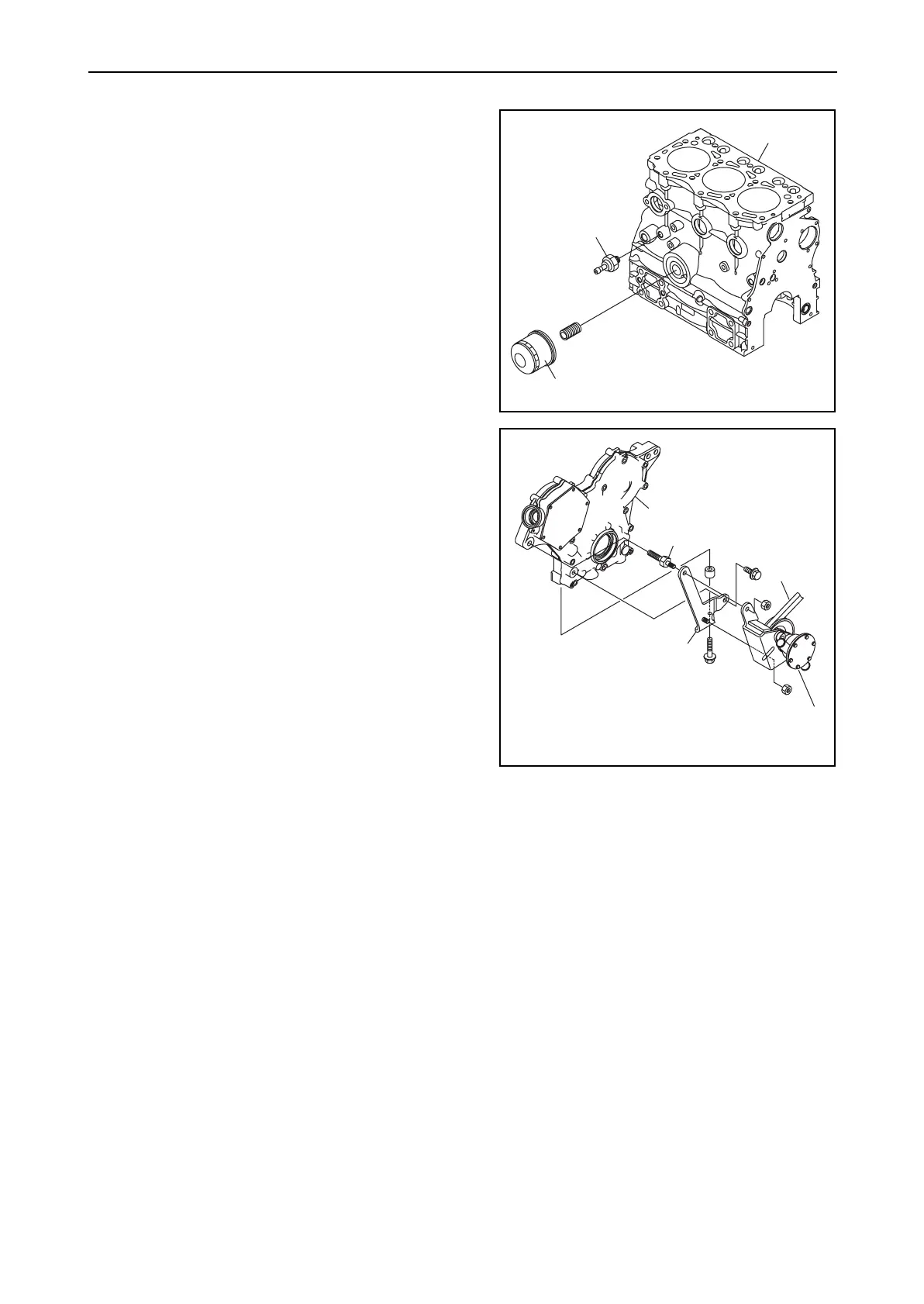

(26) Mounting the lube oil filter.
Mount the lube oil filter with the tool of the filter case
remover.
(27) Mounting the seawater pump
1) Tighten the spacer bolt to the gear case cover.
2) Mount the bracket and the seawater pump
assembly to the gear case cover.
(28) Mounting the heal exchanger (exhaust manifold, fresh water tank unit).
Mount the gasket and heal exchanger (exhaust manifold).
Note:
After adjusting injection timing and tightening the fuel injection pump, mount the heat exchanger.
Because it is harder to tighten the fuel pump nuts after installing the heat exchanger.
Lube oil pressure
switch
Cylinder block
Lube oil filter
(Seawater pump)
Gear case cover
Spacer bolt
V-belt
Seawater pump
Bracket
