4. Disassembly and reassembly
100R1
(29) Mounting the mixing elbow
1) Mount the mixing elbow on the exhaust manifold outlet.
2) Mount the cooing seawater pipe (rubber hose) with the hose clips (heat exchanger-mixing elbow).
(30) Mounting the cooling water pipes (seawater / fresh water)
1) Mount the seawater pipes with the hose clips (seawater pump-heat exchanger).
2) Mount the fresh water pipes with the hose clips (exhaust manifold - fresh water pump, fresh water
pump-heat exchanger).

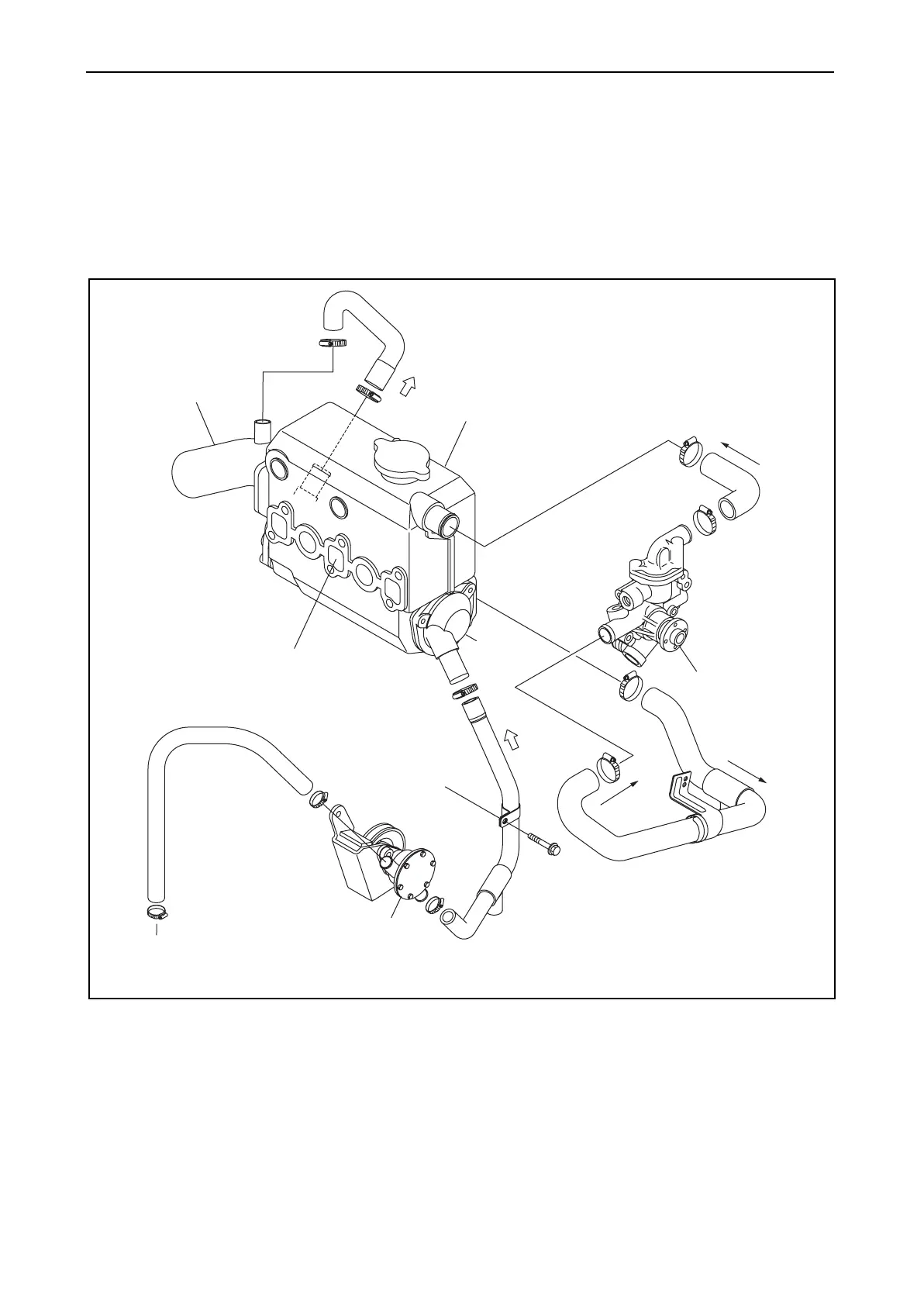

Heat
exchange
(Cooling water pipes)
Mixing elbow
Exhaust manifold
Coolant tank
Fresh water pump
From seacock
Seawater pump
