4. Disassembly and reassembly
101

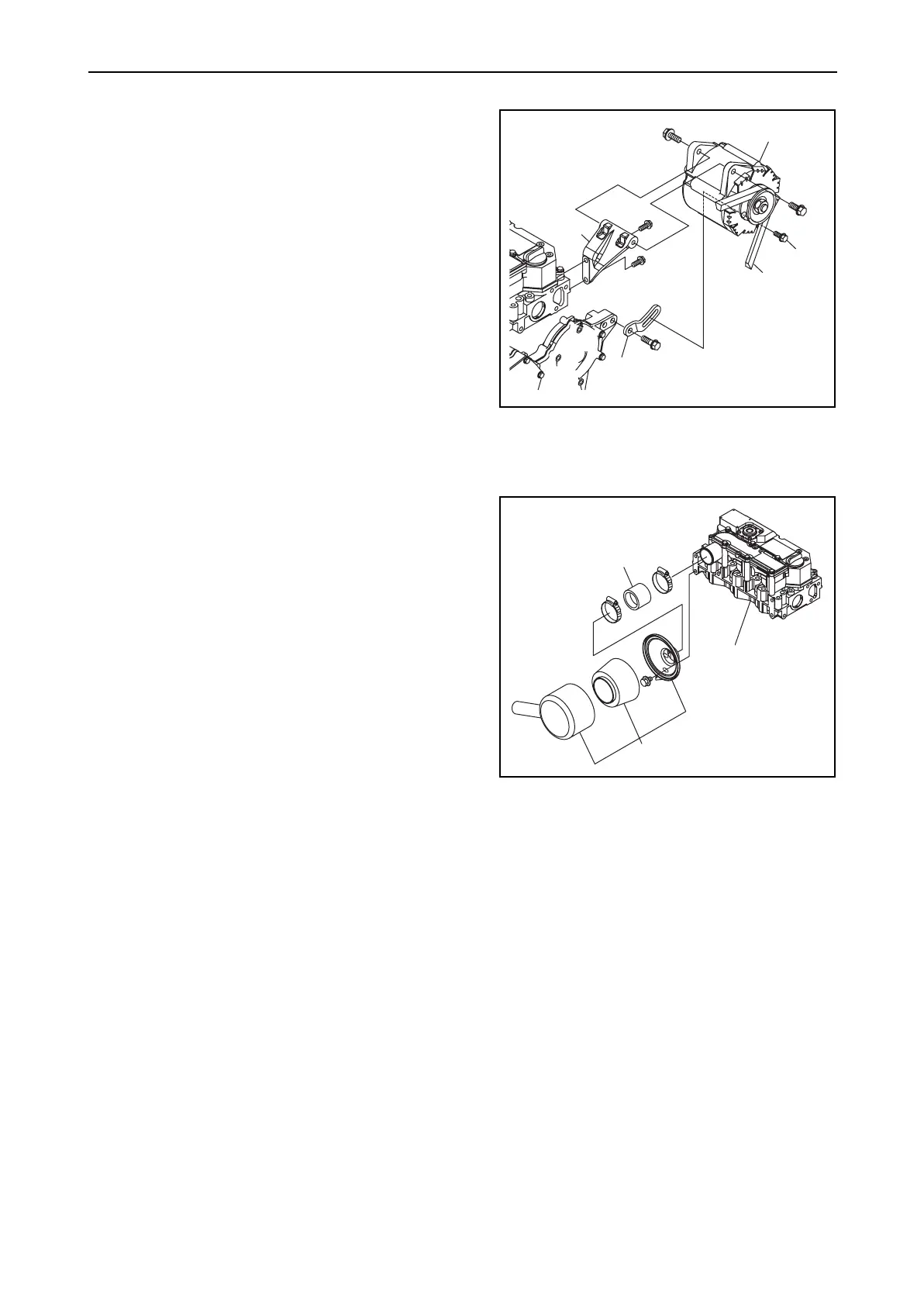

(31) Mounting the alternator
1) Mount the bracket on the cylinder head and the
adjuster on the gear case cover, and then the
alternator.
2) Adjust V-belt tension with the adjuster, and tighten
the set bolt.
(32) Mounting the starting motor
Fit the starting motor on the flywheel housing.
(33) Mounting the intake silencer
Mount the intake pipe on the intake manifold inlet
coupling and tighten the intake silencer to the cylinder
head.
Alternator
Bracket
Belt adjuster
(3YM30)
Set bolt
V-belt
Intake silencer
Cylinder head
Intake pipe
