4. Disassembly and reassembly
79

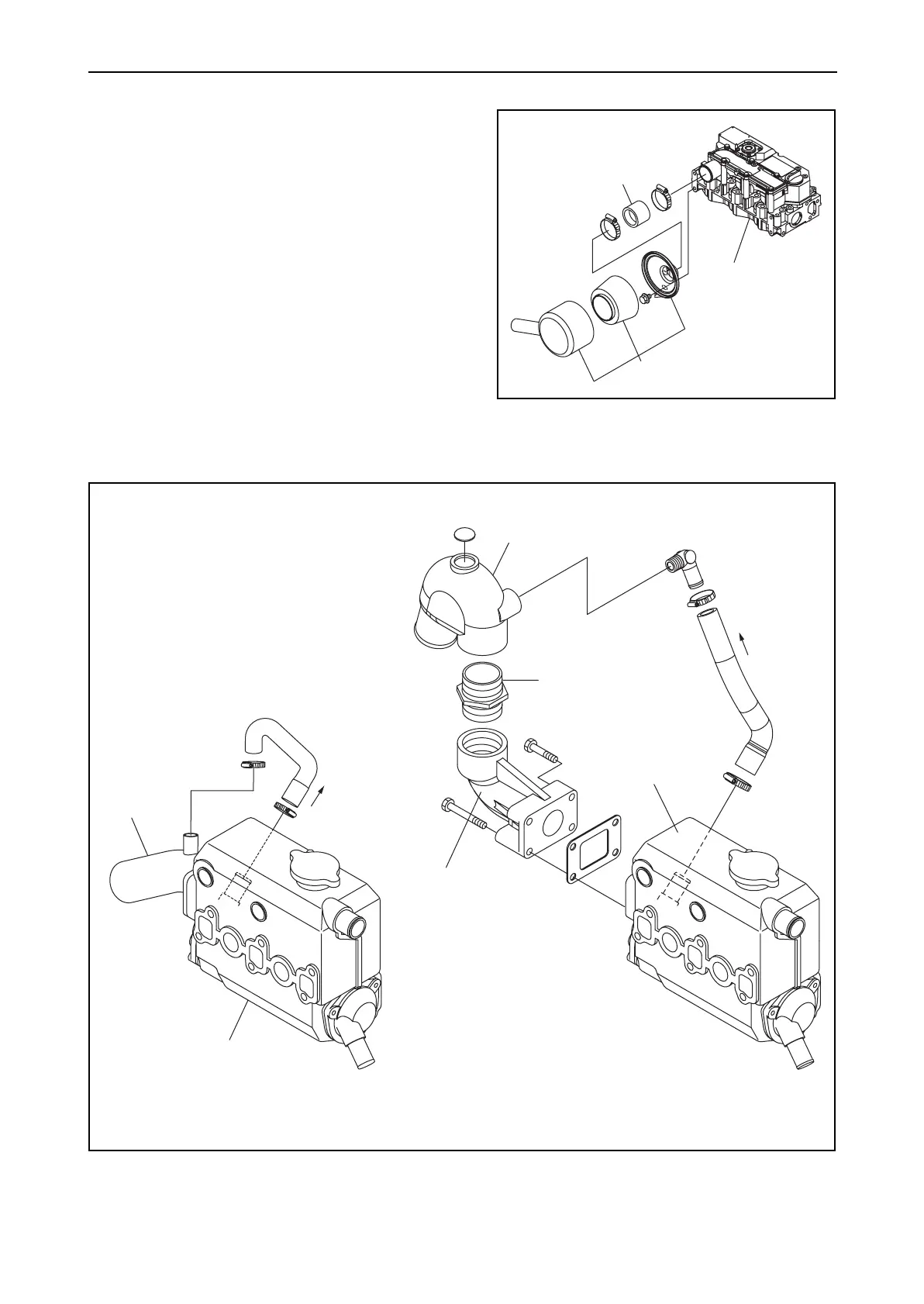

(5) Removing the intake silencer
1) Remove the air intake hose attached to the intake
manifold.
2) Remove the intake silencer from cylinder head.
(6) Removing the mixing elbow
1) Remove the seawater rubber hose connecting to a heat exchanger- a mixing elbow.
2) Remove the mixing elbow from the exhaust manifold.
Intake silencer
Cylinder head
Intake pipe
U-type
Mixing elbow
L-type
Mixing elbow
(L-type mixing elbow)
Optional
(U-type mixing elbow)
Seawater
Seawater
Heat exchanger
Heat exchanger
Exhaust elbow
Joint
