PRODUCT OVERVIEW
6LT Series Operation Manual
17

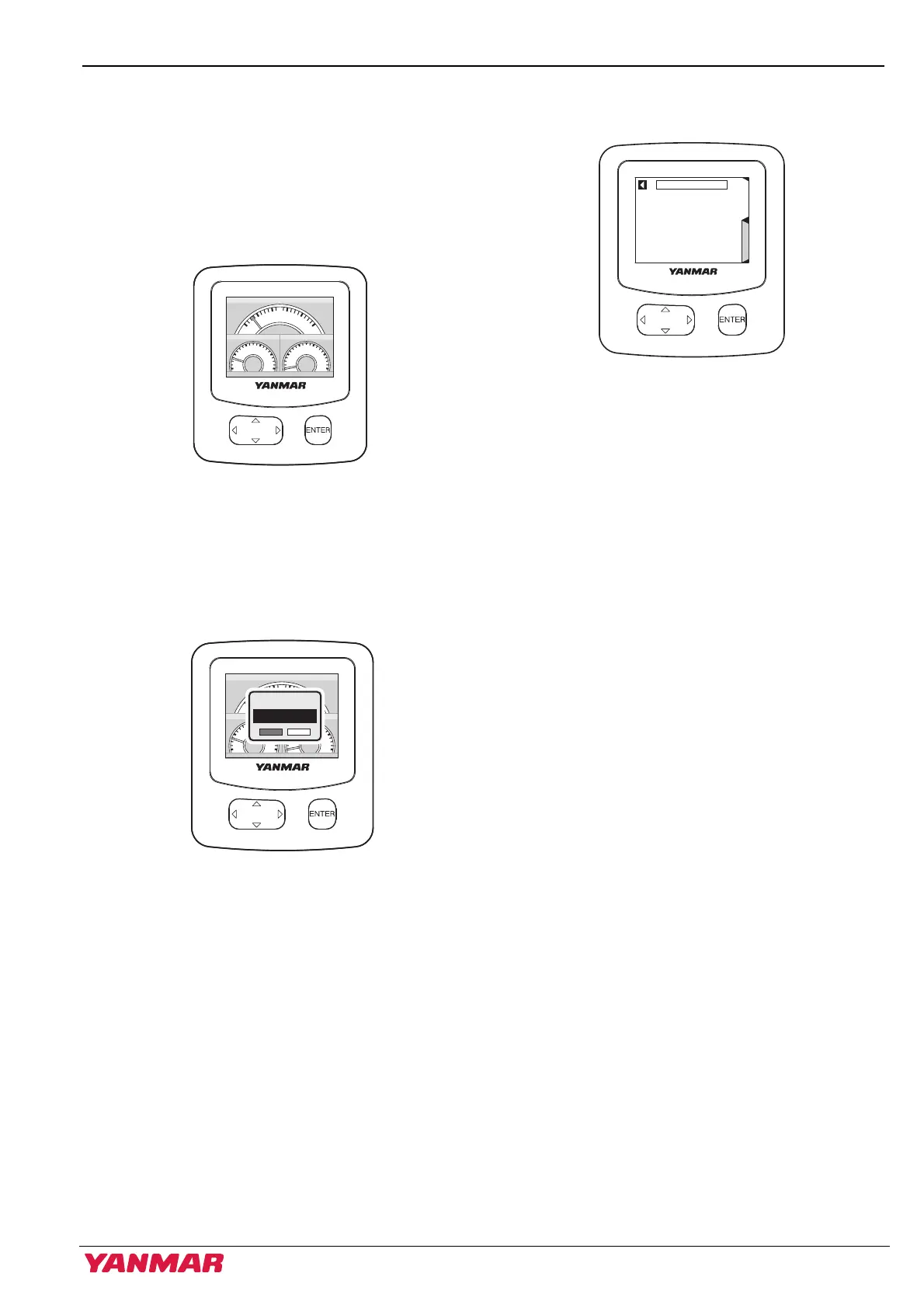

Display
The multi-function information display has the
following functions.
Q Display Function
Runtime Engine Data Tri-Screen
Figure 8
This screen displays real time engine data and
alarm indications.
Alarm Indicators
Figure 9
The alarm window appears with an audible alarm
when abnormal engine activity occurs.
NOTE: When starting the engine, make it a rule to
check that when the switch panel is pressed to the
power switch, the welcome screen appears on the
display and goes out. If the system does not
function normally, consult your authorized Yanmar
Marine dealer or distributor and ask for diagnostics.
Diag Codes Screen
Figure 10
Alarm Indicator Functions
The alarm indicators and buzzer are activated
when sensors detect an abnormality during engine
operation. The alarm indicators are off during
normal operation, but are activated as follows when
an abnormality arises:
• The coolant temperature alarm indicator activates
when the coolant gets too hot.
• The engine oil pressure alarm indicator activates
when the engine oil pressure drops.
• The electric charge alarm indicator activates
when there is a charging failure.
OIL PRESSURE COOLANT TEMP
ENGINE SPEED
60
0 700
40
700
40
05
14
23
120
OIL PRESSURE COOLANT TEMP
ENGINE SPEED
0 700
40
700
40
05
14
23
120
60
ALARM!
CLOSE
MAINTENANCE
ENGINE
DETAIL
Diag codes
PORT
STBD
