COMPONENT IDENTIFICATION
Service Side

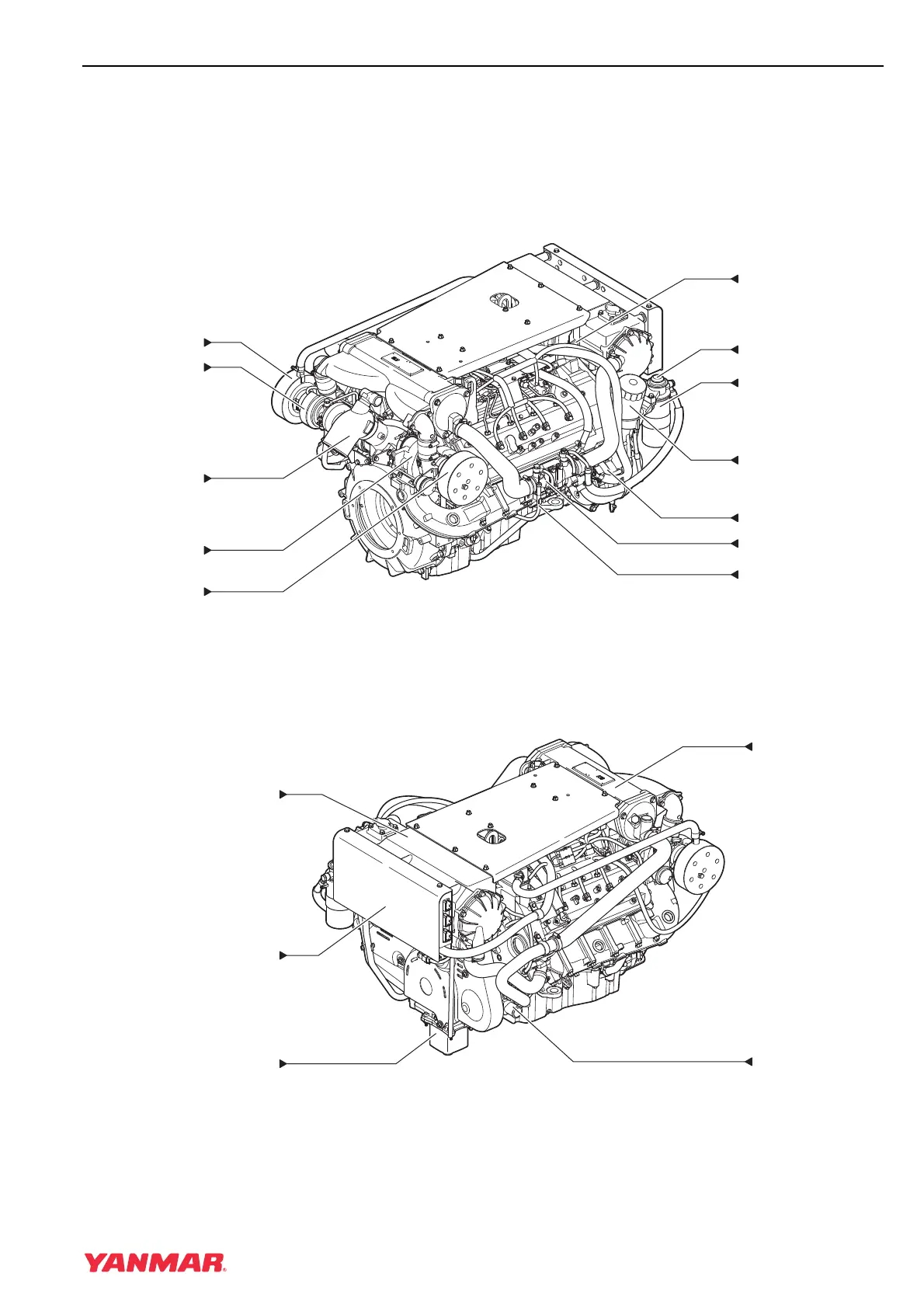

Figure 1 and Figure 2 illustrate a typical version of a 8LV series engine. Your engine may have different
equipment from that illustrated.
Figure 1
Non-Service Side
Figure 2
037423-00E00
Dipstick
Lubricating oil
feeding port
Fuel filter
Fuel oil cooler
Fuel priming pump
Lubricating oil filter
Alternator
Turbo-charger
Mixing elbow
Turbo-charger
Silencer
Silencer
037424-00E00
ECUbox
Heat exchanger
Engine lubricating oil cooler
Seawater pump
Air cooler
