SPECIFICATIONS
68
8LV Series Operation Manual

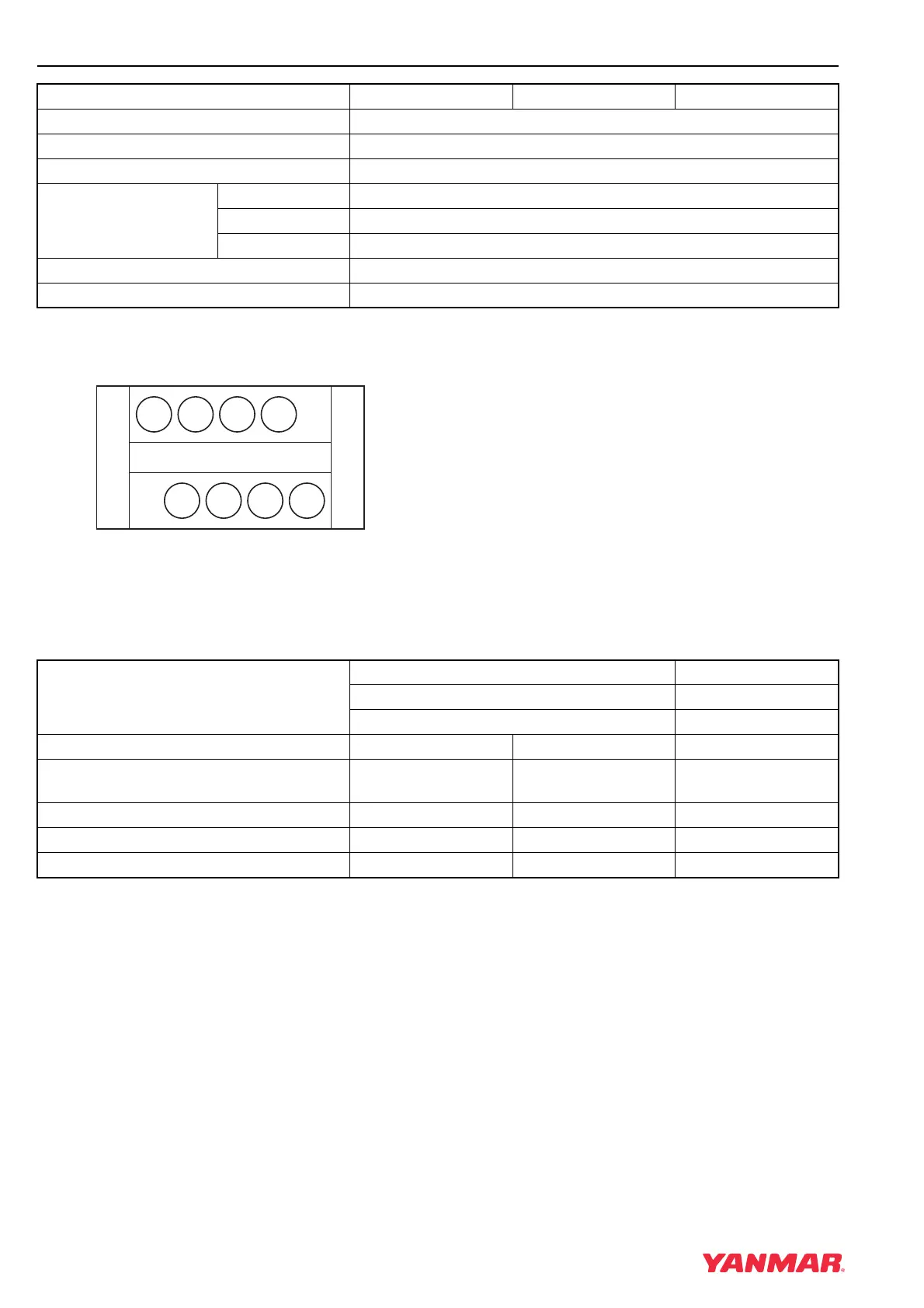

Cylinder Arrangement
Figure 1
8LV Series Marine Gear Specifications
Turbo-charger MHI TD04
Starter motor DC 12 V - 2.7 kW
Alternator 12 V - 180 A
Engine dimension
without marine gear
Overall length 1133 mm (44.61 in.)
Overall width 884 mm (34.80 in.)
Overall height 783.5 mm (30.85 in.)
Dry weight (without gear) 435 kg (960 lb)
Minimum battery capacity 12 V - 120 Ah (5 hours rate, JIS 145G51 or equivalent)
Engine Model 8LV320(Z) 8LV350(Z) 8LV370(Z)
1
Right bank
Left bank
Flywheel
Belt
357
2468
037754-00E00
Engine Model
8LV320 8LV320Z
8LV350 8LV350Z
8LV370 8LV370Z
Marine gear model KMH50A KMH52V ZT370
Specification
8 deg. down angle
with hydraulic shift
12 deg. down angle
with hydraulic shift
Stern drive
Gear ratio (Ahead/Astern) 1.67, 2.13, 2.43 1.22, 1.58, 2.08, 2.47 1.65, 1.78
Lubricating oil capacity (Effective/Maximum) 0.4/2.0 l (0.4/2.1 qt) 0.4/5.4 l (0.4/5.7 qt) 2.5 l (2.6 qt)
Dry weight 41 kg (90 lb) 59 kg (130 lb) 100 kg (221 lb)
