PERIODIC MAINTENANCE
48
8LV Series Operation Manual
There are two types of special service tools for
removing the impeller:
The seawater pump turns counterclockwise as
viewed from the side cover, so the impeller must be
installed as shown in Figure 8. If the impeller has
been removed it must be installed in the correct
direction. Additionally, if the engine is being turned
over manually, be careful to turn it in the correct
direction. Incorrect turning will twist the impeller
blades and cause damage.

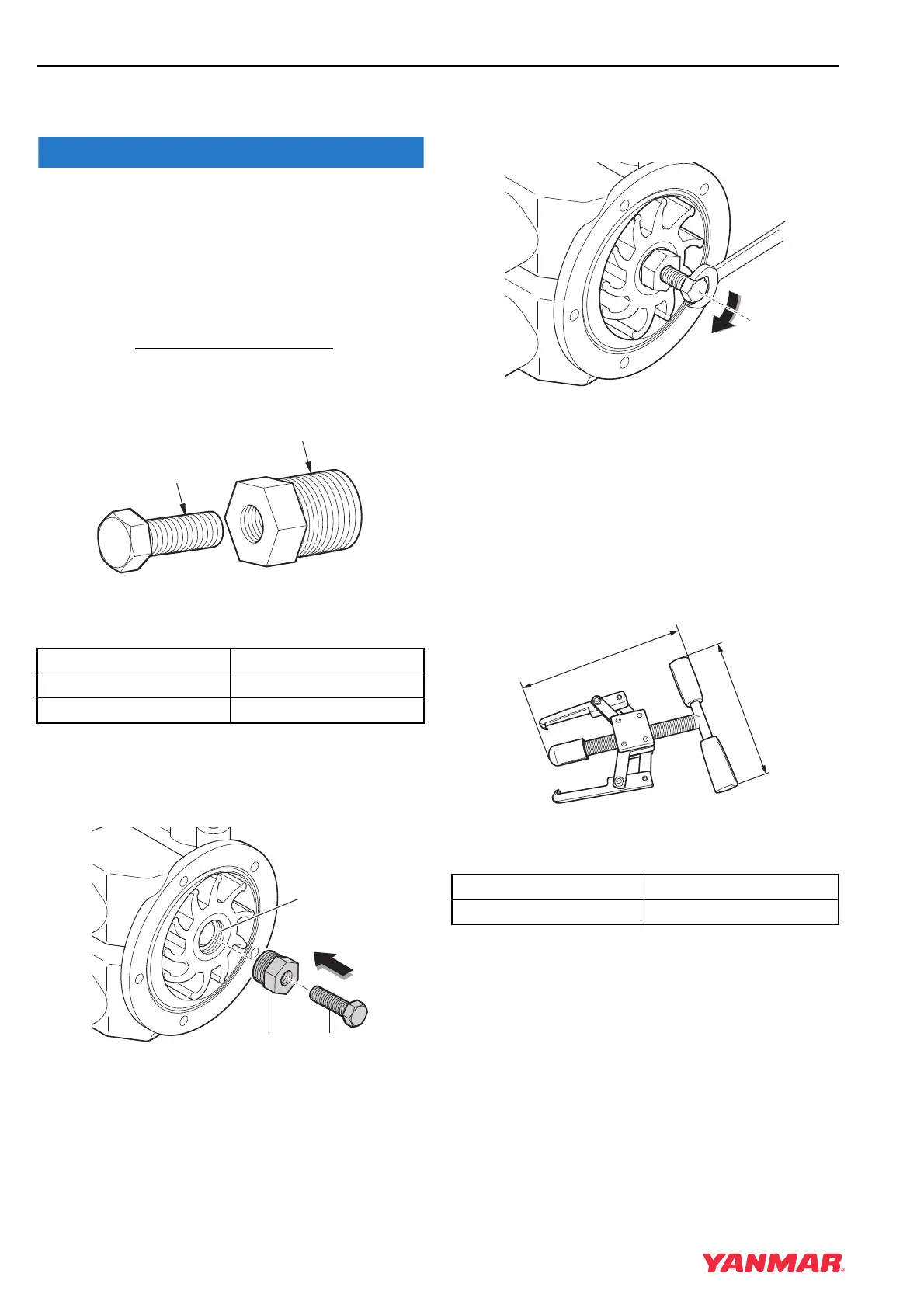

Puller A (Standard)
Figure 9
1. Remove the side cover of the seawater pump.
2. Install the puller (A, Figure 9) in the impeller.
Figure 10
3. Turn the jack screw (B, Figure 9) clockwise to
remove the impeller from the pump body.
Figure 11
Note: When replacing a used impeller with a new
one, the impeller must have an M22
×
1.5
thread (1, Figure 10). Turn the M18
screw-side of the impeller to the cover side
and install (Figure 11).
Puller B (Option) Part No. 129671-92100
Figure 12
Puller A Jack Screw B
120325-92110 26116-100504
M18 × 1.5 M10 × 50
B
A
AB
1
037419-00X00
AB
110 mm (4.33 in.) 140 mm (5.51 in.)
K0004502-00X
A
B
