Yanmar SD25 - Filling with Lubricating Oil

BEFORE YOU OPERATE
SD25 Operation Manual 19
12/05
FILLING WITH
LUBRICATING OIL
NOTICE
The lubricating oil capacity of the standard
unit is different from that of the long-reach
unit. Confirm the capacity by means of the
oil capacity nameplate.
1. Remove the dipstick (yellow cap). Fill
with approved lubricating oil.
2. Check the amount of lubricating oil by
inserting the dipstick as far as possible.
Do not screw the dipstick in
(1, Figure 2). The oil level should
reach the upper mark on the dipstick
(2, Figure 2).
NOTICE
It takes about 10 minutes to fill up the
Sail-Drive with lubricating oil. Check the oil
level 15 minutes after adding the specified
quantity of oil.

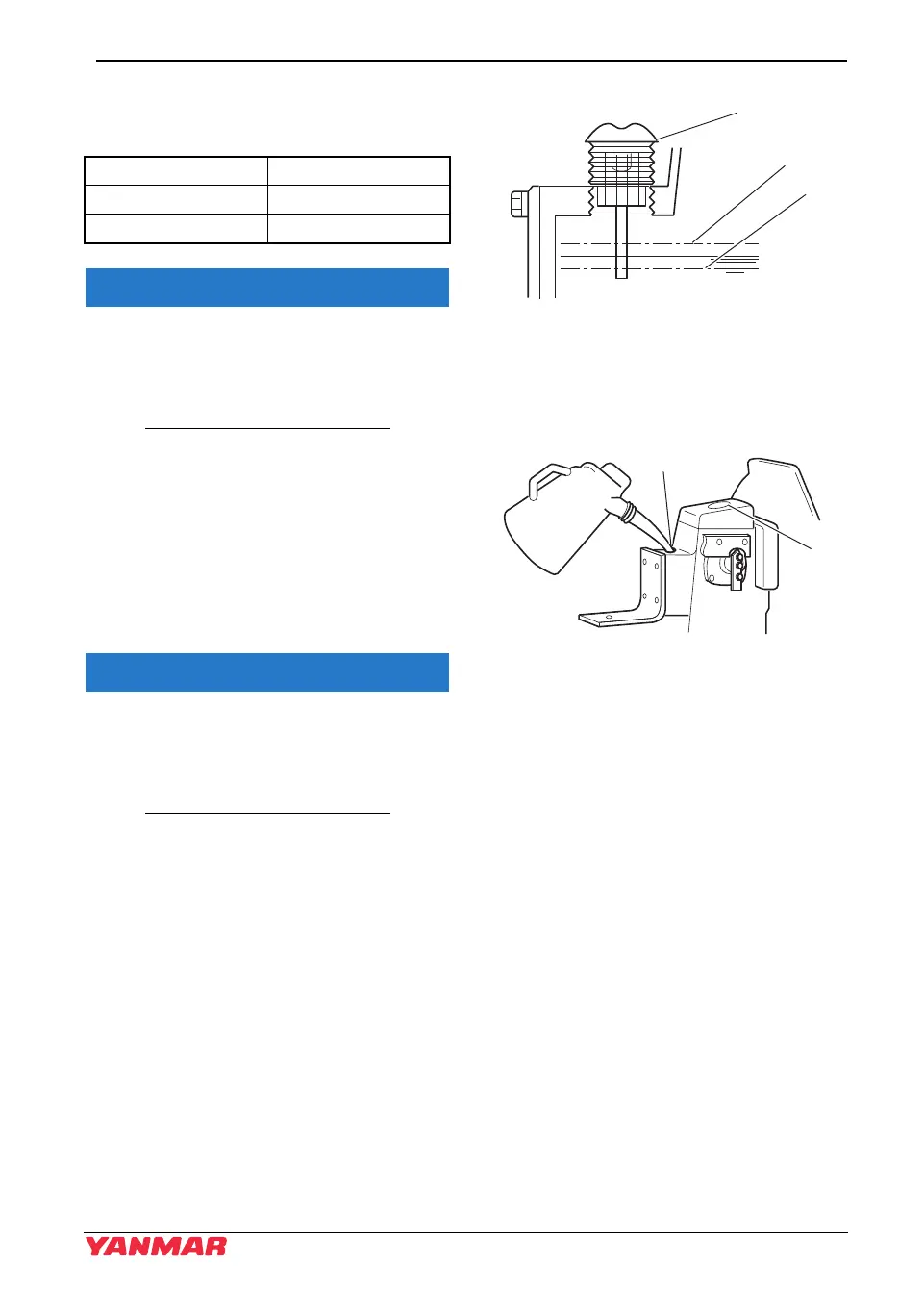

1 – Dipstick
2 – Upper limit
3 – Lower limit
Figure 2
1 – Oil supply port
2 – Oil capacity nameplate
Figure 3
Sail-Drive model SD25
Standard unit 2.2 L (2.3 qt)
Long-reach unit 2.5 L (2.6 qt)
1
2
3
K0005573
K0005441
1
2
