BEFORE YOU OPERATE
20 SD25 Operation Manual

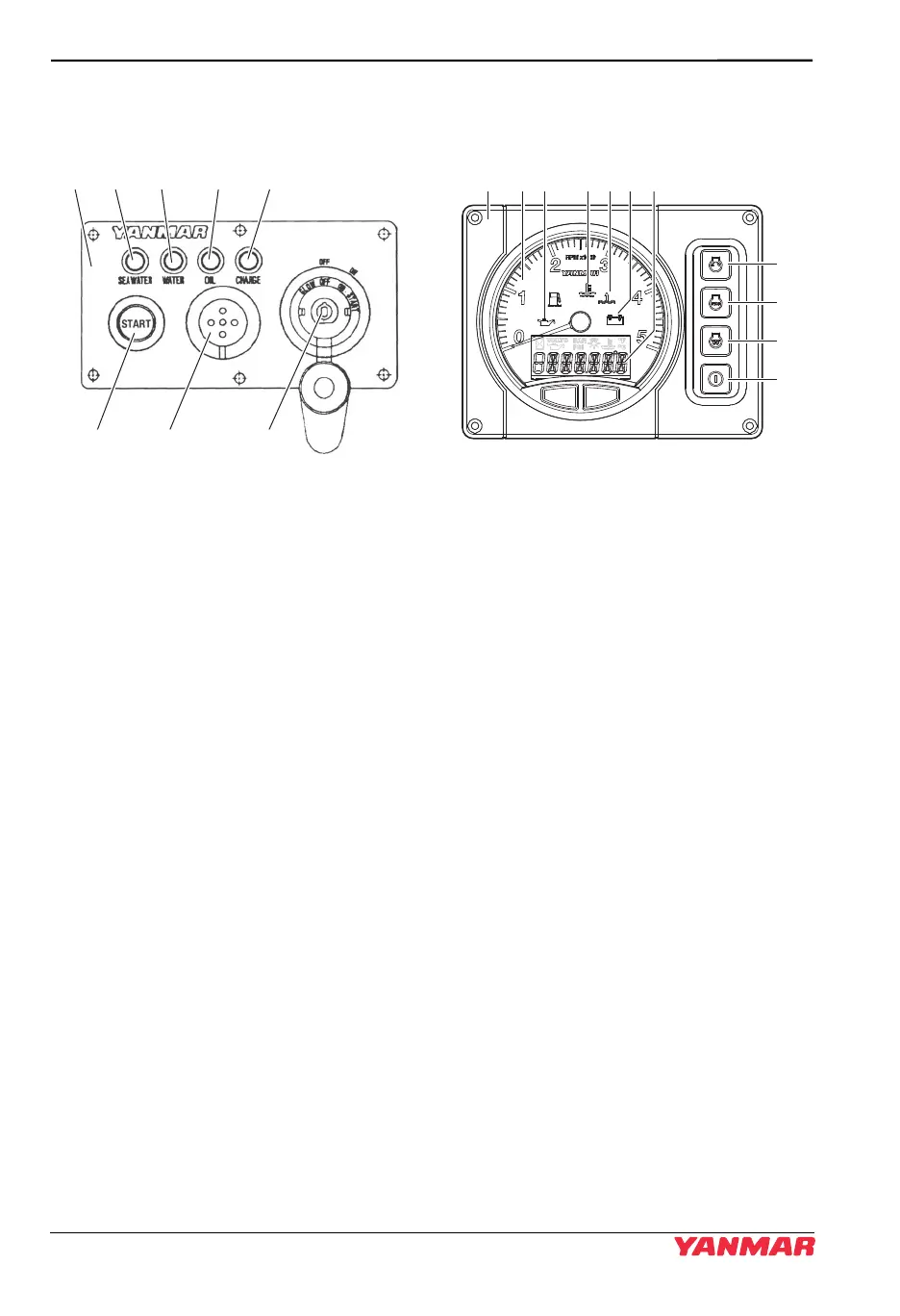

CHECKING THE INSTRUMENT PANEL ALARM SYSTEM
A-type
1 – “A” instrument panel
2 – Seawater in sail drive alarm lamp
(Optional)
3 – Cooling water temperature alarm
lamp
4 – Engine oil low pressure alarm
lamp
5 – Battery low charge alarm lamp
6 – Key switch
7 – Alarm buzzer
8 – Start switch (Push button)
Figure 4
B20 - type
1 – “B20” instrument panel
2 – Tachometer
3 – Engine oil low pressure alarm
lamp
4 – Cooling water temperature alarm
lamp
5 – Seawater in sail drive alarm lamp
(Optional)
6 – Battery low charge alarm lamp
7 – LCD (Hour meter)
8 – Start switch
9 – Stop switch
10 – Glow switch
11 – Power switch
Figure 5
23 4 5
87 6
1
K0005848
042563-00X06
11
8
9
10
2 3 4 5176
