BEFORE YOU OPERATE
SD25 Operation Manual 21
12/05
Turn the battery switch on. Turn the key (6,
Figure 4) or power switch (11, Figure 5) to
the ON position and check the lamps on
the panel (Figure 4, Figure 5) with the
engine off:
1. The lubricating oil warning lamp should
be illuminated.
(4, Figure 4) (3, Figure 5)
2. The cooling water temperature warning
lamp should be out.
(3, Figure 4) (4, Figure 5)
3. The charge warning lamp should be
illuminated.
(5, Figure 4) (6, Figure 5)
4. The rubber seal warning lamp should
be out.
(2, Figure 4) (5, Figure 5)
5. The warning buzzer should sound.
Note: All the above alarm signals will
continue until you push the starting
button or turn the key (power switch)
to the OFF position.
WARNING
The rubber seal alarm lamp warns of
seawater entering the vessel. The
watertight structure of the Sail-Drive is
dual type. Even if the rubber diaphragm
A (4, Figure 6) is damaged and seawater
enters, the rubber diaphragm B (3,
Figure 6) prevents it from entering the
vessel. The rubber seal switch between
the rubber diaphragms (3, Figure 6) and
(4, Figure 6) sounds the warning buzzer
and lights the rubber seal lamp on the
instrument panel. If this happens, stop
the engine and under sail, quickly
return to the nearest port for repairs.
1 – ON (Rubber seal lamp)
2 – Rubber seal switch
3 – Diaphragm (B)
4 – Diaphragm (A)
5 – Seawater

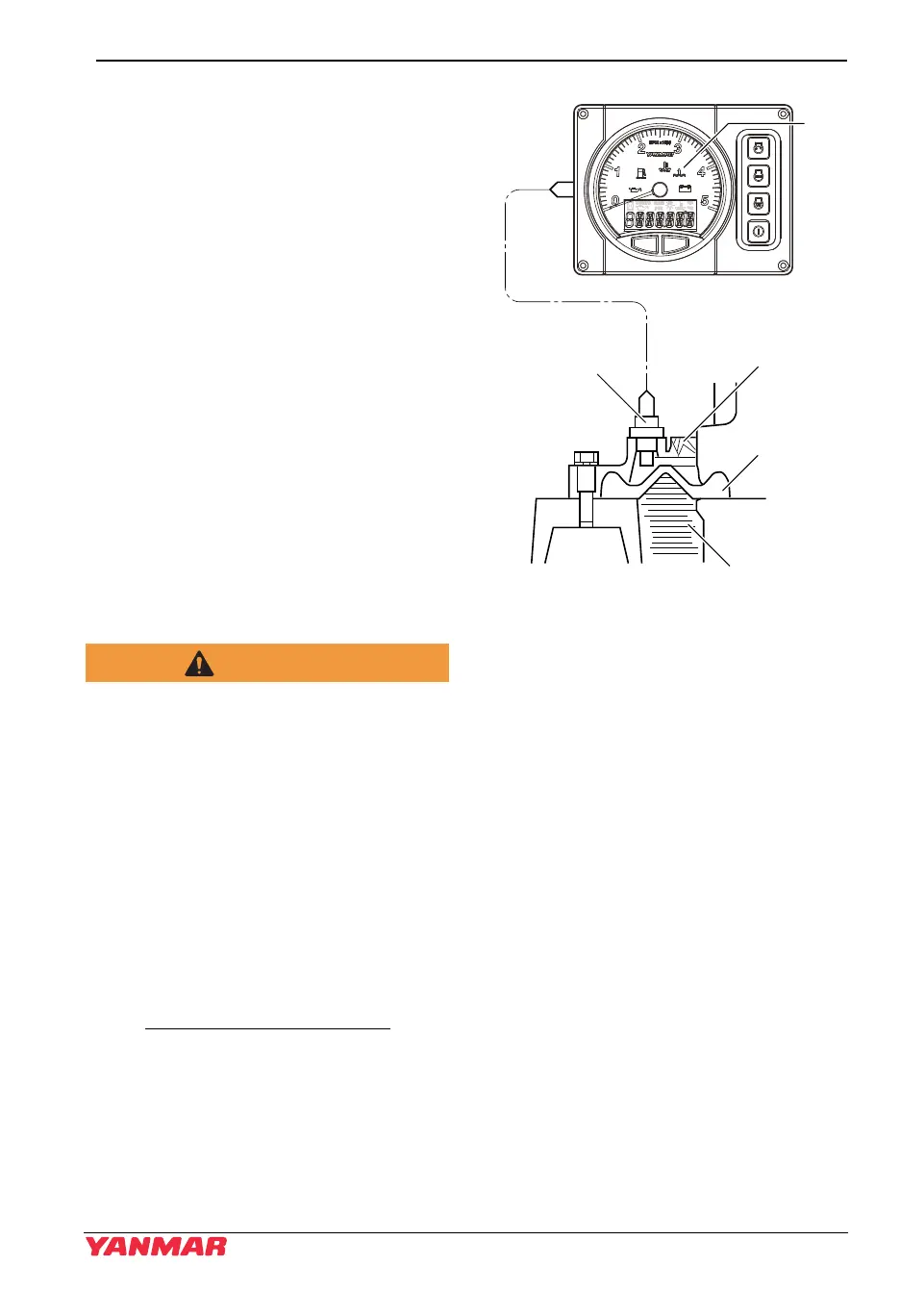

Figure 6
2
3
1
4
5
019410-01X01
