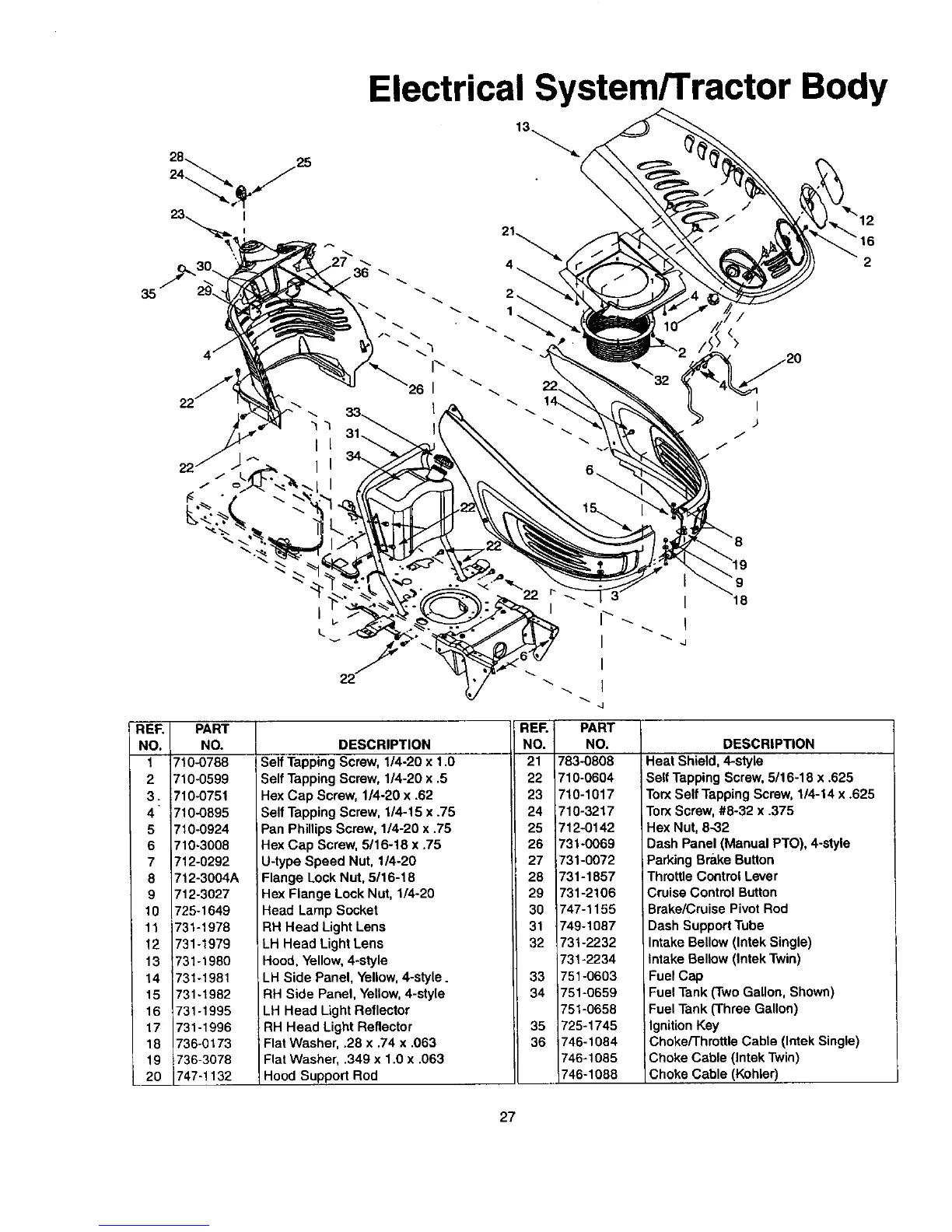

Yard-Man AutoDrive 604 - Electrical System;Tractor Body View and Part List

35
REF.
NO.
1
2
3-
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
28_ 25
24 S
I
I
Electrical System/Tractor Body
PART
NO.
710-0768
710-0599
710-0751
710-0895
710-0924
710-3008
'12-0292
712-3004A
712-3027
725-1649
731-1978
731-1979
731-1980
731-1981
731-1982
731-1995
731-1996
736-0173
736-3078
747-1132
DESCRIPTION
Self Tapping Screw, 1/4-20 x 1.0
Self Tapping Screw, 1/4-20 x .5
Hex Cap Screw, 1/4-20 x .62
Self Tapping Screw, 1/4-15 x .75
Pan Phillips Screw, 1/4-20 x .75
Hex Cap Screw, 5/16-18 x .75
U-type Speed Nut, 1/4-20
Flange Lock Nut, 5/16-18
Hex Flange Lock Nut, 1/4-20
Head Lamp Socket
RH Head Light Lens
LH Head Light Lens
Hood, Yellow, 4-style
LH Side Panel, Yellow, 4-style.
RH Side Panel, Yellow, 4-style
LH Head Light Reflector
RH Head Light Reflector
Flat Washer, .28 x .74 x .063
Flat Washer, .349 x 1.0 x .063
Hood Support Rod
;RER PART
NO. NO.
21 783-0808
22 710-0604
23 710-1017
24 710-3217
25 712-0142
26 731-0069
27 731-0072
28 731-1857
29 731-2106
30 747-1155
31 749-1087
32 731-2232
731-2234
33 751-0603
34 751-0659
751-0658
35 725-1745
36 746-1084
746-1065
746-1068
DESCRIPTION
Heat Shield, 4-style
Self Tapping Screw, 5/16-18 x .625
Torx Self Tapping Screw, 1/4-14 x .625
Torx Screw, #8-32 x .375
Hex Nut, 8-32
Dash Panel (Manual PTO), 4-style
Parking Brake Button
Throttle Control Lever
Cruise Control Button
Brake/Cruise Pivot Rod
Dash Support Tube
Intake Bellow (Intek Single)
Intake Bellow (Intek Twin)
Fuel Cap
Fuel Tank (Two Gallon, Shown)
Fuel Tank (Three Gallon)
Ignition Key
Choke/Throttle Cable (Intek Single)
Choke Cable (Intek Twin)
Choke Cable (Kohler)
27
