REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
3O
31
32
33
34
35
36
37
38
39
40
41
42
43
44
PART
NO.
17839
17840
618-0386
631-0009
647-0041
656-0048
656-0051
683-0251
710-0189
710-0227
710-0347
710-0599
710-0604
710-0642
710-3011
711-0677
712-0241
712-0378
712-0431
712-0798
712-3004A
712-3008
714-0111
714-0149B
723-0156
725-1644
726-0320
732-0384
i732-0525
732-0716
732-0963
736-0105
736-0140
736-0169
736-0275
736-0407
736-3010
738-0322
747-1122
747-1123
747-1127
747-1156
747-1160
748-0416
DESCRIPTION
Shift Lever Bracket
Transaxle Mounting Bracket
Single-apeed Transmission Assembly
Shifter Knob
Shift Lever
Variable-speed Pulley Assembly
Transmission Pulley, 8.5 x .5-36
Double-idler Bracket
Hex Cap Screw, 5/16-18 x 3
Self Tapping Screw, #8-18 x .5
Hex Cap Screw, 3/8-16 x 1.75
Self Tapping Screw, 114-20 x .5
Self Tapping Screw, 5/16-18 x .625
Self Tapping Screw, 1/4-20 x .75
Hex Cap Screw, 3/8-16 x 2.25
Ferrule, 5116-18
Hex Nut, 3/8-24
Hex Nut, 7116-20
Flange Lock Nut, 3/8-16
Hex Nut, 3/8-16
Flange Lock Nut, 5/16-18
Jam Nut. 3/8-16
Cotter Pin
Internal Cotter Pin
Ball Joint, 3/8-24
Short Spring Switch
Insulator Nut Plate
Extension Spring, .62. Dia. x 6.12
Compression Spring Clip
Extension Spring, .59 OD x 4
Extension Spring, .50 Dia. x 6.37
(hooks to flange, 783-0650, in frame)
Bell Washer, .401 x .87 x .063
Flat Washer, .385 x .62 x .063
Lock Washer, 318
Flat Washer, 5116
Bell Washer, .45 x 1.0 x .602
Flat Washer, .407 x .812 x .135
Shoulder Screw, .625 x .217
Brake Rod
Belt Guard
Idler Adjustment Rod, 3/8
Shift Rod
Belt Guard Rod
Shoulder Spacer, .38 ID
RER PART
NO. NO.
45 754-0467
46 754-0468
47 756-0981
48 783-0637
49 783-0667
50 783-0669
51 783-0714
52 647-0031
53 647-0032
54 i683-0266
55 710-1135
56 711-0736
57 711-1363
58 714-0104
59 732-0437
60 732-0955
61 735-0662
62 735-3049
63 736-0140
64 736-0187
65 736-0204
66 738-0155
67 738-0507B
68 741-0225
69 741-3065A
70 747-1137
71 747-1138
72 746-0413
73 748-0415
74 783-0653
75 _783-0732
76 783-0773
77 783-0780
78 683-0263
79 783-0668
80 736-0242
81 710-0627
82 634-0177
634-0104
634-0077
734-0255
734-1873
734-1730
83 734-1788A
727-0425A

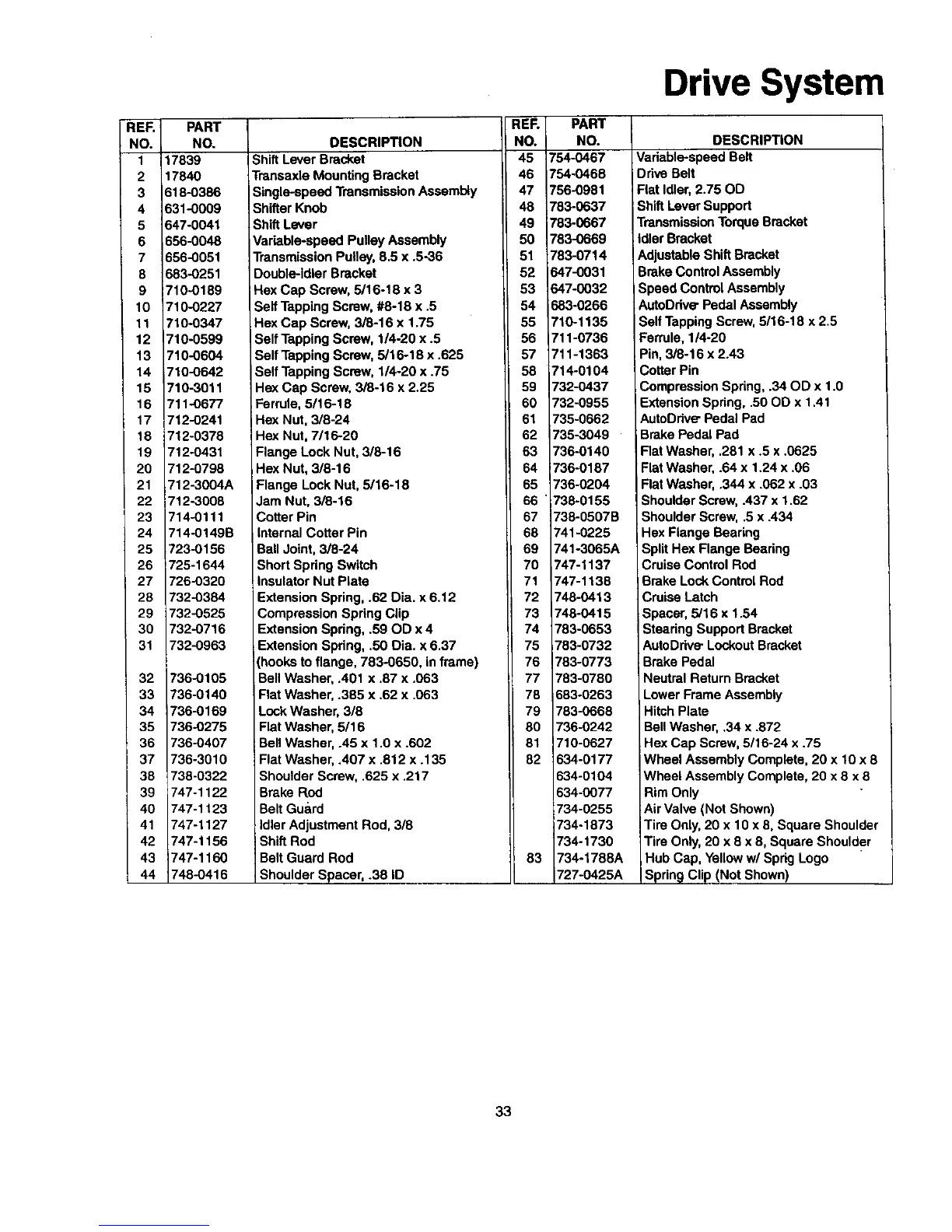

Drive System
DESCRIPTION
Variable-speed Belt
Drive Belt
Flat Idler, 2.75 OD
iShift Lever Support
Transmission Torque Bracket
idler Bracket
Adjustable Shift Bracket
Brake Control Assembly
Speed Control Assembly
AutoDrive"Pedal Assembly
Self Tapping Screw, 5/16-18 x 2.5
Ferrule, 1/4-20
Pin, 3/8-16 x 2.43
Cotter Pin
Compression Spring, .34 OD x 1.0
Extension Spring, .50 OD x 1,41
AutoDdve- Pedal Pad
Brake Pedal Pad
Flat Washer, .281 x .5 x .0625
Flat Washer, .64 x 1.24 x .06
Flat Washer, .344 x .062 x .03
Shoulder Screw, .437 x 1.62
Shoulder Screw, .5 x A34
;Hex Flange Bearing
Split Hex Flange Bearing
Cruise Control Rod
Brake Lock Control Rod
Cruise Latch
Spacer, 5/16 x 1.54
Stsaring Support Bracket
AutoDrive- Lockout Bracket
Brake Pedal
Neutral Return Bracket
Lower Frame Assembly
Hitch Plate
Bell Washer, .34 x .872
Hex Cap Screw, 5/16-24 x .75
Wheel Assembly Complete, 20 x 10 x 8
Wheel Assembly Complete, 20 x 8 x 8
Rim Only
Air Valve (Not Shown)
Tire Only, 20 x 10 x 8, Square Shoulder
Tire Only, 20 x 8 x 8, Square Shoulder
Hub Cap, Yellow w/Sprig Logo
Spring Clip (Not Shown)
33
To Next Page
