Yard-Man AutoDrive 604 - Power Take-Off System

REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
3O
31
32
PART
NO.
683-0278
683-0282
710-0514
710-0597
710-0604
710-1260A
710-3011
710-3180
710-3199
712-0431
712-3004A
712-3010
712-3027
714-0111
725-1657A
731-2111
732-0977
732-0978
736-0140
736-0176
736-0272
738-1021
736-1125
741-0708
747-1112
747-1114
747-1174
748-0416
748-0421
756-0627
783-0744
783-0796

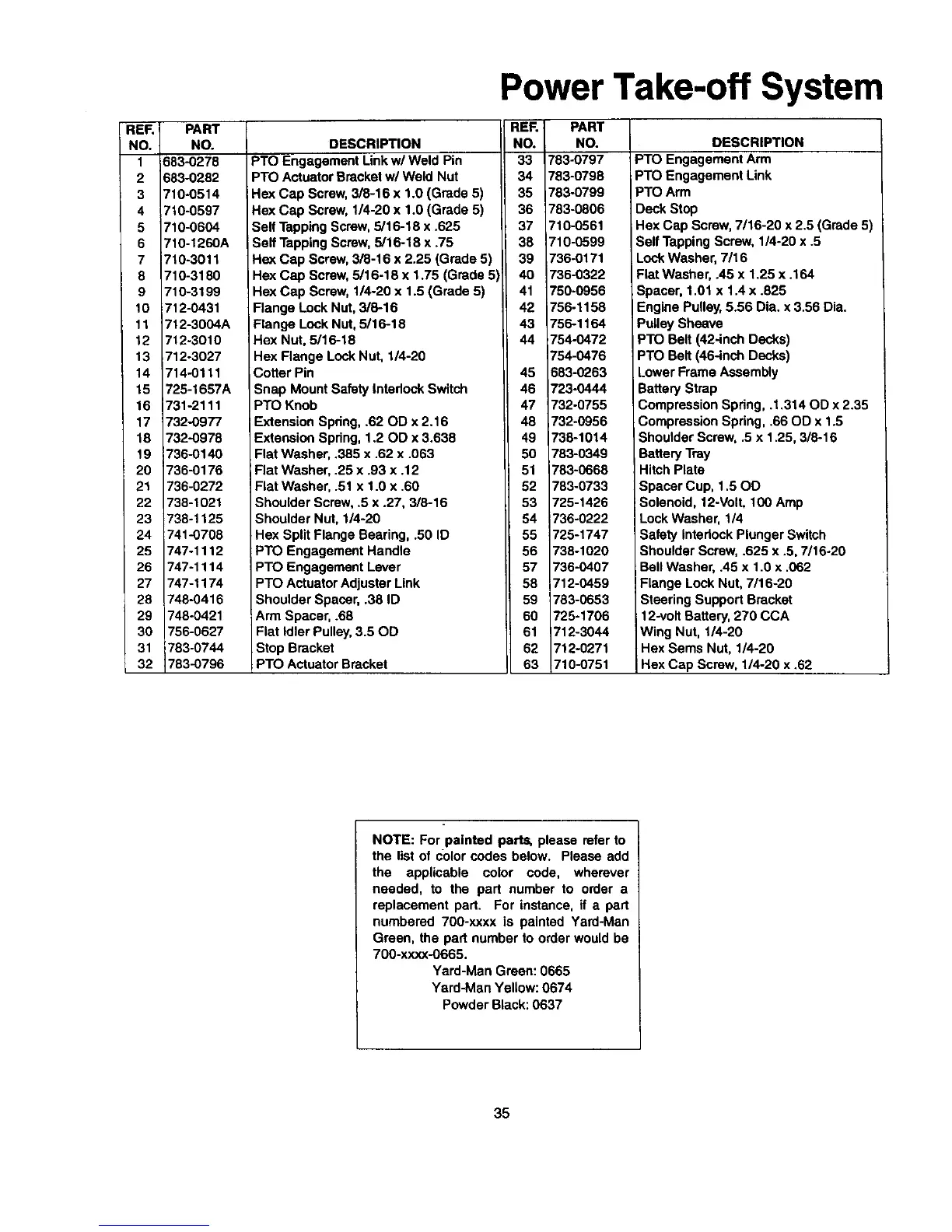

Power Take-off System
DESCRIPTION
PTO Engagement Link w/Weld Pin
PTO Actuator Bracket w/Weld Nut
Hex Cap Screw, 3/8-16 x 1.0 (Grade 5)
Hex Cap Screw, 1/4-20 x 1.0 (Grade 5)
Self Tapping Screw, 5/16-18 x .625
Self Tapping Screw, 5/16-18 x .75
Hex Cap Screw, 3/8-16 x 2.25 (Grade 5)
Hex Cap Screw, 5/16-18 x 1.75 (Grade 5)
Hex Cap Screw, 1/4-20 x 1.5 (Grade 5)
Flange Lock Nut, 3/6-16
Flange Lock Nut, 5/16-18
Hex Nut, 5116-18
Hex Flange Lock Nut, 1/4-20
Cotter Pin
Snap Mount Safety Interlock Switch
PTO Knob
Extension Spdng, .62 OD x 2.16
Extension Spdng, 1.20D x 3.638
Flat Washer, .385 x .62 x .063
Flat Washer, .25 x .93 x .12
Flat Washer, .51 x 1.0 x .60
Shoulder Screw, .5 x .27, 3/8-16
Shoulder Nut, 1/4-20
Hex Split Flange Bearing, .50 ID
;PTO Engagement Handle
PTO Engagement Lever
PTO Actuator Adjuster Link
Shoulder Spacer, .38 ID
Arm Spacer, .68
Flat Idler Pulley, 3.50D
Stop Bracket
PTO Actuator Bracket
RER:
NO.
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
5O
51
52
53
64
55
56
57
58
59
60
61
62
63
PART
NO.
783-0797
783-0798
783-0799
783-0806
710-0561
710-0599
_36-0171
736-0322
750-0956
756-1158
756-1164
754-0472
754-0476
683-0263
1723-0444
732-0755
732.0956
738-1014
783-0349
783-0668
783-0733
725-1426
736-0222
725-1747
738-1020
736-0407
712-0459
783-0653
725-1706
712-3044
712-0271
710-0751
DESCRIPTION
PTO Engagement Arm
PTO Engagement Link
PTO Arm
Deck Stop
Hex Cap Screw, 7/16-20 x 2.5 (Grade 5)
Self Tapping Screw, 1/4-20 x .5
Lock Washer, 7/16
Flat Washer, .45 x 1.25 x .164
Spacer, 1.01 x 1.4 x .825
Engine Pulley, 5.56 Dia. x 3.56 Dia.
Pulley Sheave
PTO Belt (424nch Decks)
PTO Belt (46-inch Decks)
Lower Frame Assembly
Battery Strap
Compression Spdng, .1.314 OD x 2.35
Compression Spring, .66 OD x 1.5
Shoulder Screw, .5 x 1.25, 3/6-16
Battery Tray
Hitch Plate
Spacer Cup, 1,50D
Solenoid, 12-Volt, 100 Amp
Lock Washer, 1/4
Safety Interlock Plunger Switch
Shoulder Screw, .625 x .5, 7/16-20
Bell Washer, .45 x 1.0 x .062
Flange Lock Nut, 7/16-20
Steering Support Bracket
12-volt Battery, 270 CCA
Wing Nut, 1/4-20
Hex Sems Nut, 1/4-20
Hex Cap Screw, 1/4-20 x .62
NOTE: For.painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Yard-Man
Green, the part number to order would be
700-xxxx-0665.
Yard-Man Green: 0665
Yard-Man Yellow: 0674
Powder Black: 0637
35
