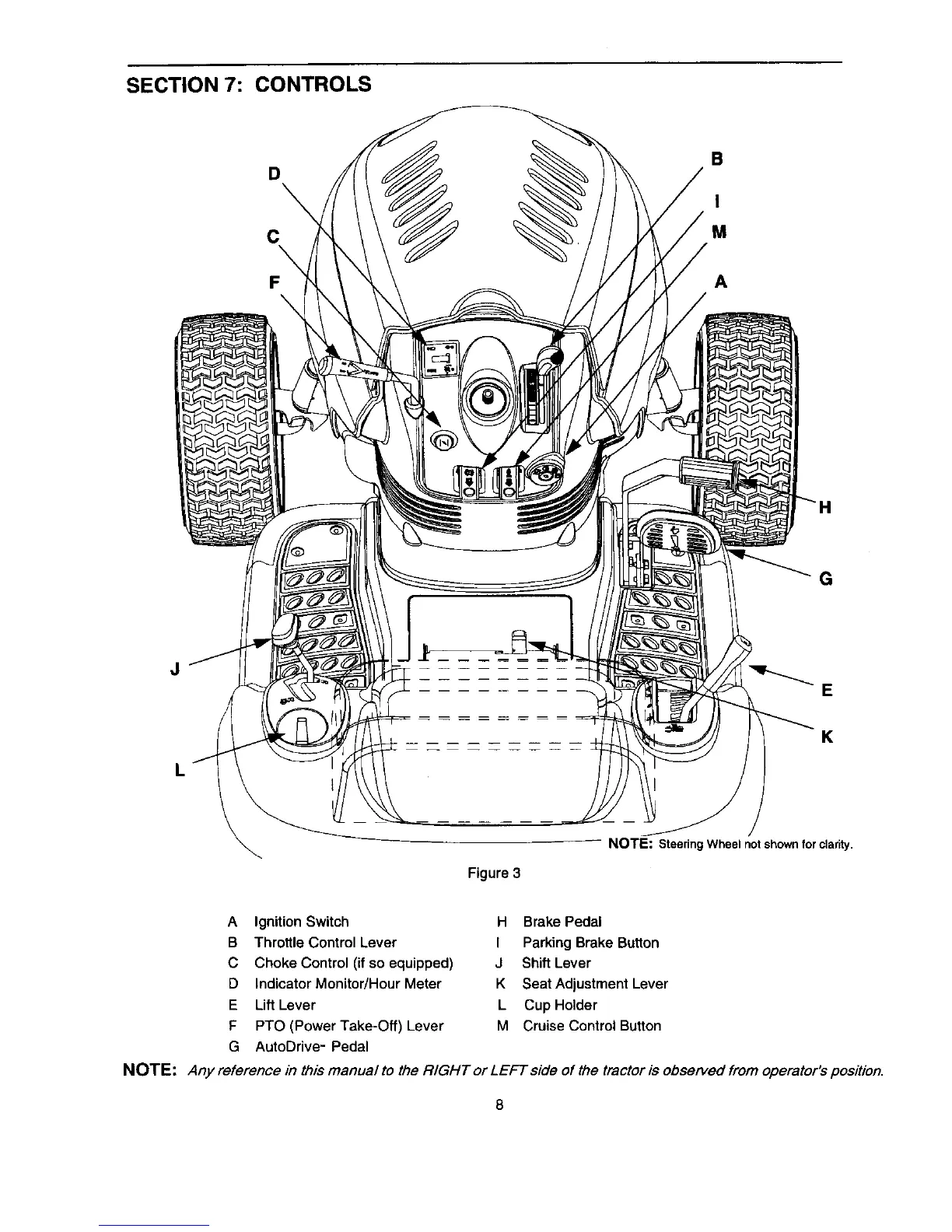

SECTION 7: CONTROLS
D
C
\
F
B
I
M
A
G
J
E
L
K
Figure 3
-- NOTE: Steering Wheel not shown for clarity.
A Ignition Switch
B Throttle Control Lever
C Choke Control (if so equipped)
D Indicator Monitor/Hour Meter
E Lift Lever
F PTO (Power Take-Oft) Lever
G AutoDrive- Pedal
H Brake Pedal
I Parking Brake Button
J Shift Lever
K Seat Adjustment Lever
L Cup Holder
M Cruise Control Button
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
8
