Yardistry YM11915 User Manual

9 support@yardistrystructures.com

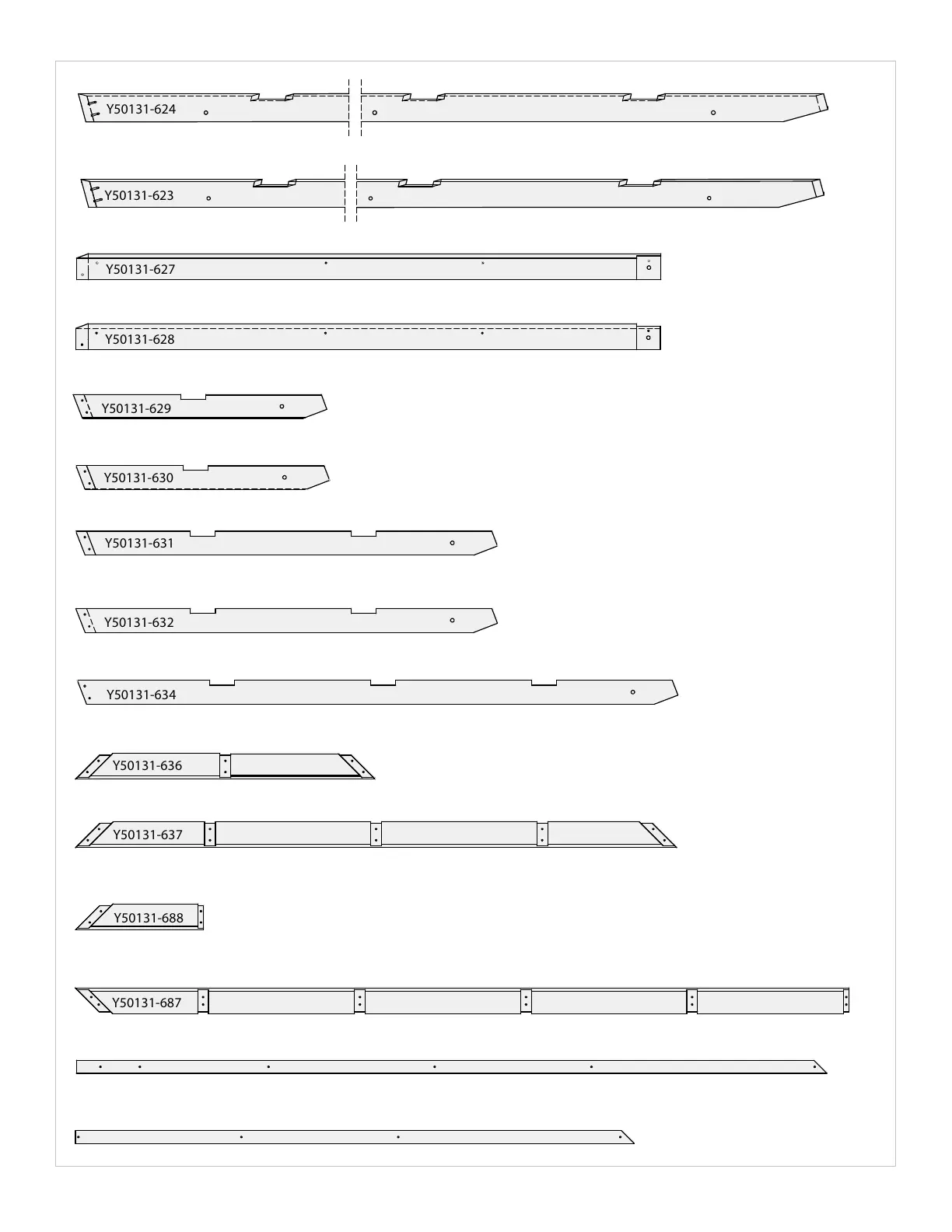

Part Identication ( )
Y50131-623
4pc. (623) Rafter Corner Right 2597.8mm (102¼")
2pc. (627) Fascia Left Short 1855.5mm (73-1/16")
Y50131-627
Y50131-630
4pc. (630) Rafter Short LT 805.5mm (31-3/4")
Y50131-629
4pc. (629) Rafter Short RT 805.5mm (31-3/4")
Y50131-628
2pc. (628) Fascia Right Short 1855.5mm (73-1/16")
6pc. (634) Rafter 1907mm (75-1/16")
Y50131-634
Y50131-631
4pc. (631) Rafter Centre LT 1338.9mm (52-3/4")
2pc. (636) Top Strap 953.8mm (37-35/64")
Y50131-636
Y50131-637
2pc. (637) Mid Strap 1908.3mm (75-1/8")
4pc. (632) Rafter Centre RT 1338.9mm (52-3/4")
Y50131-632
Y50131-647
4pc. (647) Sot Long 2383mm (93-13/16")
4pc. (648) Sot 1774.5mm (69-7/8")
Y50131-648
2pc. (688) Bottom Strap RT 406.3mm (16")
Y50131-688
2pc. (687) Bottom Strap LT 2457mm (96-3/4")
Y50131-687
Dimensions are approximate an
d are shown to assist in the identication of parts for
assembly. Actual dimensions may be smaller or larger.
Y50131-624
4pc. (624) Rafter Corner Left 2597.8mm (102¼")
