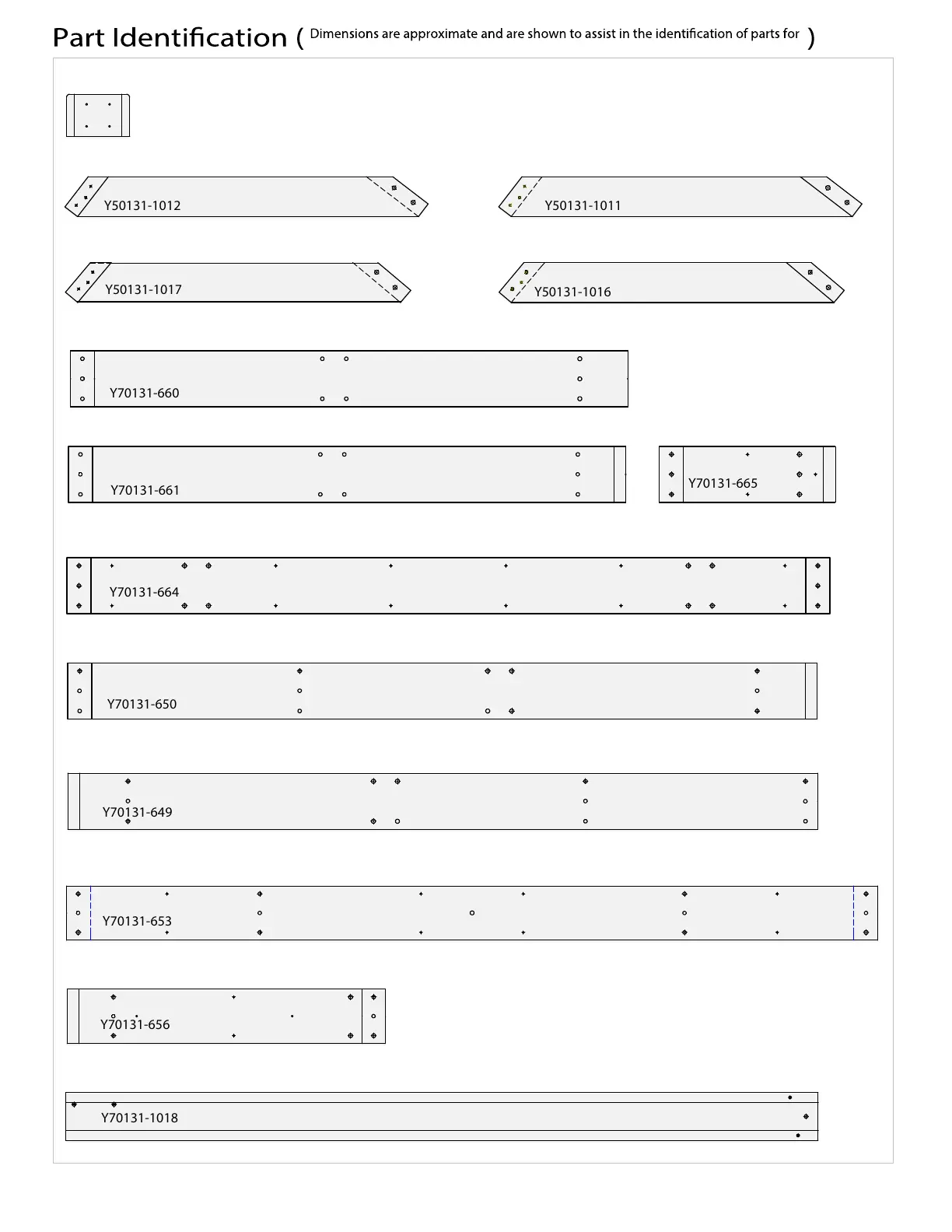

2pc. (649) Outer End Right 2379.7mm (93-11/16")
Y70131-649
4pc. (656) Inside Beam 1046.2mm (41-3/16")
Y70131-656
Y70131-650
2pc. (650) Outer End Left 2379.7mm (93-11/16")
16pc. (422) Plinth 190.5mm (7-1/2")
Y50131-422
4pc. (665) End Short Beam 558.6mm (22")
Y70131-665
Y70131-660
2pc. (660) Left Beam Short 1769.7mm (69-5/8")
Y50131-1012
2pc. (1012) Straight Gusset Right 1153mm (45-3/8")
2pc. (664) Centre Beam Short 2422.1mm (95-3/8")
Y70131-664
Y70131-661
2pc. (661) Right Beam Short 1769.7mm (69-5/8")
Y50131-1011
2pc. (1011) Straight Gusset Left 1153mm (45-3/8")
2pc. (1016) - Short Gusset LT 1096.3mm (43-3/16")
Y50131-1016
2pc. (1017) Short Gusset RT 1096.3mm (43-3/16")
Y50131-1017
4pc. (1018) - M-Post 2387.6mm (94”)
Y70131-1018
2pc. (653) Inside Long Beam 2667mm (105")
Y70131-653
assembly. Actual dimensions may be smaller or larger.
