5 Installation Procedure
14 YASKAWA ELECTRIC TOBP C730600 38C 1000-Series Option AI-A3 Installation Manual
2. Insert the option card (B) into the CN5-A (J), CN5-B (K), or CN5-C (L) connector
located on the drive and fasten it into place using one of the included screws (G).
Note: Install the option to ports CN5-B and CN5-C on the drive for monitoring purposes only and
input levels will be displayed in monitors U1-21 to U1-23. The option will not set the frequency
reference or replace the drive analog input with higher resolution inputs when connected to ports
CN5-B or CN5-C.

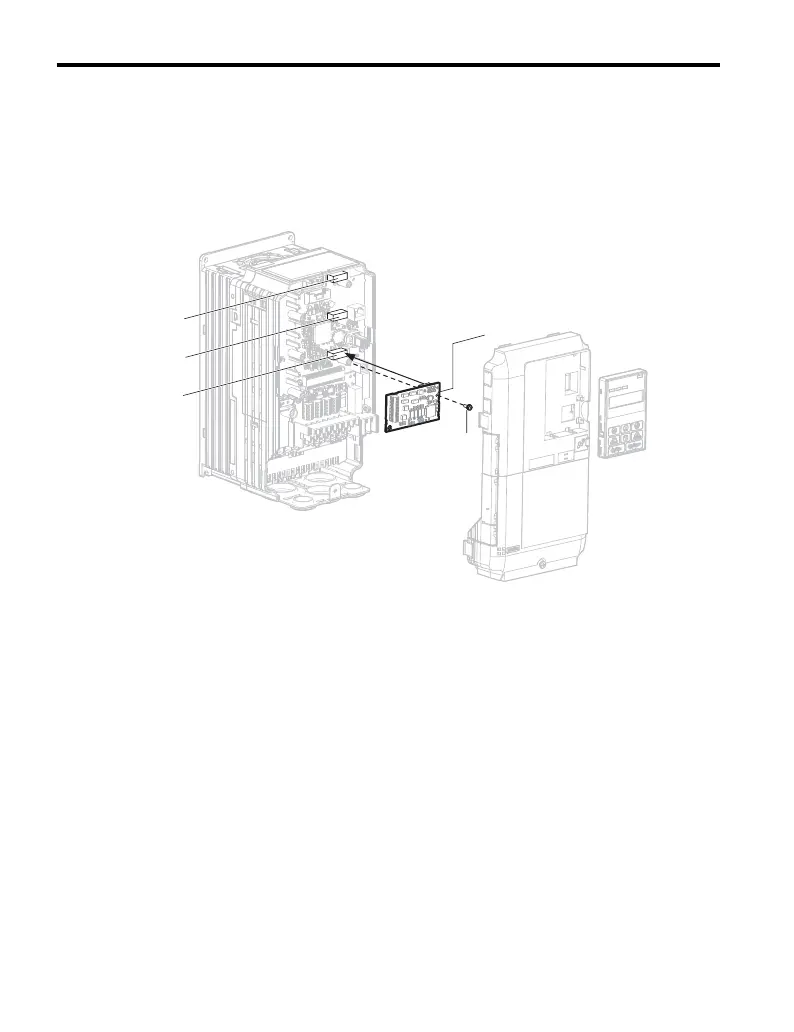

Figure 4
Figure 4 Insert the Option Card
