9 UL Standards
YASKAWA ELECTRIC TOEP C710616 27D YASKAWA AC Drive - A1000 Quick Start Guide 49
Note: Model CIMR-A4A1200 is UL compliant when the air entering the drive-installed panel or cabinet is 45° or less. For more
information, contact your nearest Yaskawa representative or our sales office.
Drive Model
CIMR-A
Code Number Model Figure
2A0110
<1> Requires two sets.
100-061-273 ECAT31875-11
7
2A0138 100-061-274 ECAT31876-11
2A0169
100-061-275 ECAT31877-11
2A0211
2A0250
100-061-277 ECAT31726-11
2A0312
2A0360
100-061-278 ECAT31698-11
2A0415
4A0058 100-061-273 ECAT31875-11
4A0072 100-061-274 ECAT31876-11
4A0088
100-061-276 ECAT31878-11
4A0103
4A0139
100-061-275 ECAT31877-11
4A0165
4A0208 100-061-277 ECAT31726-11
4A0250
100-061-278 ECAT31698-11
4A0296
4A0362
4A0414 100-061-279 ECAT31740-11
4A0515
100-061-280 ECAT31746-11
4A0675
4A0930
100-061-281
<1> ECAT31741-11 8
4A1200

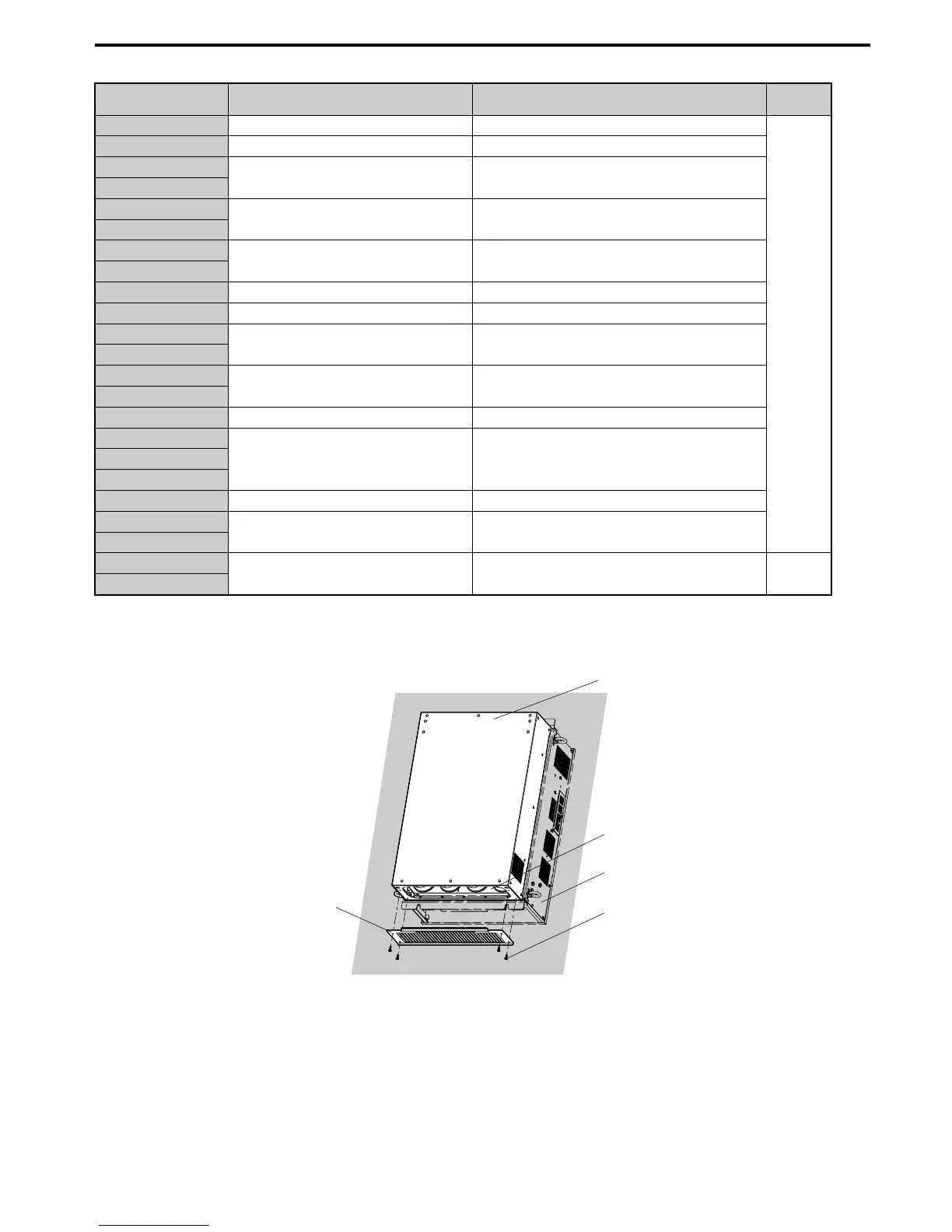

Drive (outside panel)
Opening to capacitors
Drive (inside panel)
Installation screw
Figure 7
Capacitor cover

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
