4 Keypad Operation
YASKAWA ELECTRIC TOEP C710616 27D YASKAWA AC Drive - A1000 Quick Start Guide 19
4 Keypad Operation

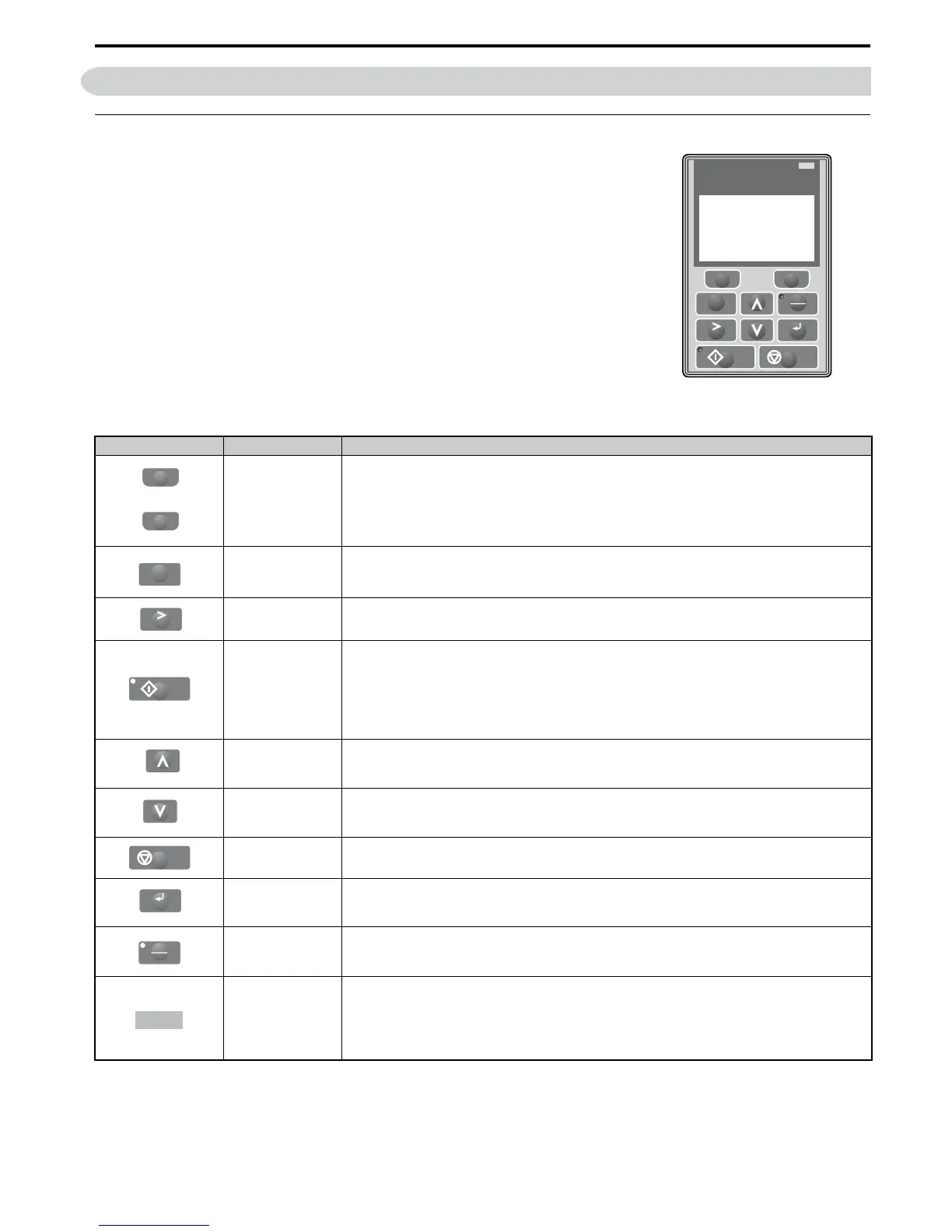

Digital Operator and Keys
The digital operator is used to program the drive, to start/stop it, and to display fault
information. The LEDs indicate the drive status.
Keys and Functions
Key Name Function
Function Key
(F1, F2)
The functions assigned to F1 and F2 vary depending on the menu that is currently displayed. The
name of each function appears in the lower half of the display window.
ESC Key
• Returns to the previous display.
• Moves the cursor one space to the left.
• Pressing and holding this button will return to the Frequency Reference display.
RESET Key
• Moves the cursor to the right.
• Resets the drive to clear a fault situation.
RUN Key
Starts the drive in the LOCAL mode.
The Run LED
• is on, when the drive is operating the motor.
• flashes during deceleration to stop or when the frequency reference is 0.
• flashes quickly the drive is disabled by a DI, the drive was stopped using a fast stop DI or a run
command was active during power up.
Up Arrow Key Scrolls up to display the next item, selects parameter numbers and increments setting values.
Down Arrow Key
Scrolls down to display the previous item, selects parameter numbers and decrements setting
values.
STOP Key Stops drive operation.
ENTER Key
• Enters parameter values and settings.
• Selects a menu item to move between displays.
LO/RE Selection
Key
Switches drive control between the operator (LOCAL) and the control circuit terminals
(REMOTE). The LED is on when the drive is in the LOCAL mode (operation from keypad).
ALM LED Light
On: When the drive detects a fault.
Flashing:
• When an alarm occurs.
• When oPE is detected.
• When a fault or error occurs during Auto-Tuning.
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
ALM
DIGITAL OPERATOR JVOP-180
F1
F2
ESC
RESET
RUN
STOP
ENTER
LO
RE
ALM
